Husqvarna GT 2254 (96023000500) (2005-05) Ride Mower

Model: GT 2254 (96023000500) (2005-05)

Back To Assemblies

Save Part Not Listed?
product name

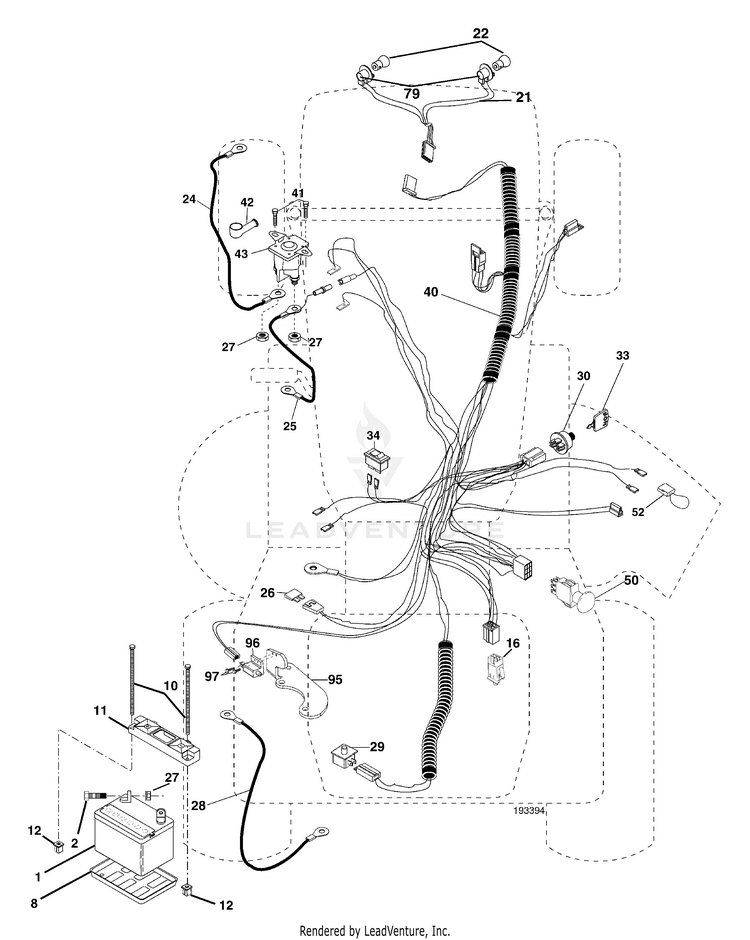

Electrical

...
...
1
BATTERY.DRY.30.AMP HUS-532123899
...
2
BOLT.HEX.1/4.X.3/4.DICHROMATE HUS-874760412
...
8
TRAY.BATTERY HUS-532007603
...
10
BATTERY TIEDOWN KIT HUS-532150177
...
11
BATTERY HOLDDOWN FRONT MOUNT HUS-532150109
...
12
BATTERY TIEDOWN KIT HUS-532150177
...
16
SWITCH INTERLOOK PUSH-IN HUS-532176138
...
21
HARNESS.W/LIGHT SOCKET HUS-532175688
...
22
LIGHTBULB HUS-532004152
...
24
BATTERY CABLE HUS-532004799
...
25
CABLE, BATTERY HUS-532146149
...
26
FUSE HYT HUS-532108824
...
27
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
28
CABLE, GROUND HUS-532170697
...
29
SWITCH.SEAT.DP W/RAMPS HUS-532192749
...
30
SWITCH.IGN.DELTA.W.LGH.ROS HUS-532193350
...
33
KEY MLD GEN DELTA HUS-532140401
...
34
SWITCH LT HUS-532110712
...
40
HARNESS.IGN.REG.RECT HUS-532193394
...
41
Screws HUS-596437001
...
42
COVER.TERMINAL.RED HUS-532154336
...
43
KIT SOLENOID .95 HUS-532146154
...
45
AMMETER HUS-532122822
...
50
SWITCH.PTO.8TERMINAL.STD.BLK HUS-582107601
...
52
WIRE PROTECTION LOOP HUS-532141940
...
79
BULB HOLDER ASM. HUS-532175242
...
95
BRKT.ROS.6SP HUS-532193666
...
96
SWITCH-INTER. GT HUS-532104445
...
97
SCREW.HEX.WSH.SLT.#10-24X.50 HUS-532170488
