Husqvarna GT 200 (HN2050A) (1993-12) Ride Mower

Model: GT 200 (HN2050A) (1993-12)

Back To Assemblies

Save Part Not Listed?
product name

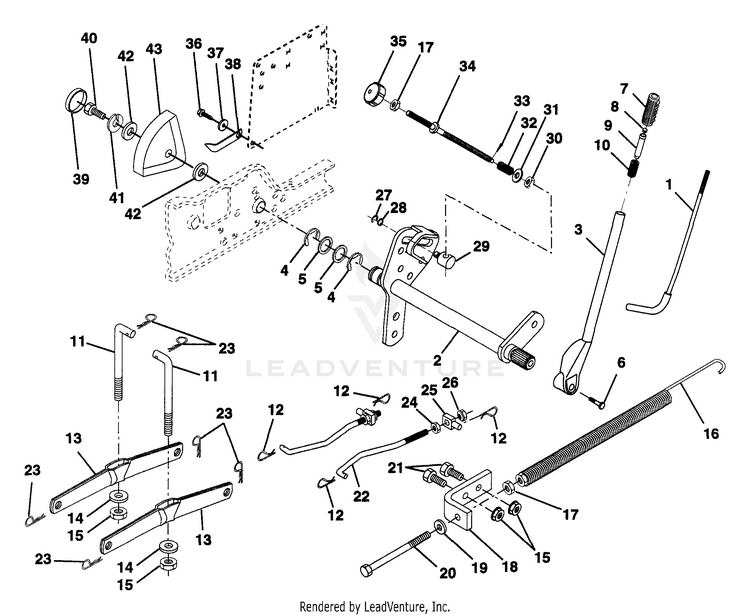

Lift Assembly

...
...
1
LEVER ROD LT HUS-532121006
...
2
SHAFT ASSY HUS-532137295
...
3
LIFT LEVER HUS-532123096
...
4
E-RING HUS-812000022
...
5
Washer 29/32 x 1-1/4 x 16 Ga. HUS-819292016
...
6
Bolt, Hex Head 3/8-16 UNC x 1-1/2 HUS-874930624
...
7
GRIP HANDLE HUS-532125631
...
8
PLUNGER BUTTON KIT HUS-532125925
...
9
PLUNGER BUTTON KIT HUS-532125925
...
10
SPRING HUS-532002876
...
11
LINK ASSY HUS-532145543
...
12
SPRING RETAINER HUS-532003146
...
13
SERVICE KIT ARM ARM.REAR.SUSPE HUS-531165801
...
14
BEARING.PIVOT.LIFT HUS-532169865
...
15
Nuts HUS-596322601
...
16
SPRING HUS-532123994
...
17
NUT.HEX.3/8-16UNC HUS-873220600
...
18
BRKT.SPRING HUS-532124671
...
19
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
20
BOLT HUS-532005328
...
21
Bolts HUS-596564401
...
22
FRONT LINK HUS-532127218
...
23
RETAINER-SPRNG RB HUS-532124670
...
24
Nuts HUS-596433401
...
25
TRUNNION HUS-532175689
...
26
GSPW NUTS HUS-596135601
...
27
Ring, Klip #T5304-37 HUS-812000037
...
28
Washer 15/32 x 3/4 x 16 Ga. HUS-819151216
...
29
TRUNION LT HUS-532110810
...
30
NUT T HUS-532110807
...
31
WASHER HUS-819131016
...
32
SPRING.COMP.INF.H HUS-532137150
...
33
Pins HUS-596917601
...
34
ROD.LIFT.ADJUSTABLE HUS-532137167
...
35
KNOB INF 3/8-16 HUS-532138057
...
36
BOLT HEX PATCH 3/8-16X3/4 HUS-534200501
...
37
WASHER T HUS-532120529
...
38
HEIGHT INDICATOR PNTR HUS-532123933
...
39
PLUG,HOLE HUS-532123935
...
40
Bolts HUS-596580801
...
41
WASHER SPRING LOCK WASHER WITH HUS-596238801
...
42
WASHER HUS-819112410
...
43
HEIGHT INDICATOR HUS-532123934
