Husqvarna GT 200 (HN2050A) (1993-12) Ride Mower

Model: GT 200 (HN2050A) (1993-12)

Back To Assemblies

Save Part Not Listed?
product name

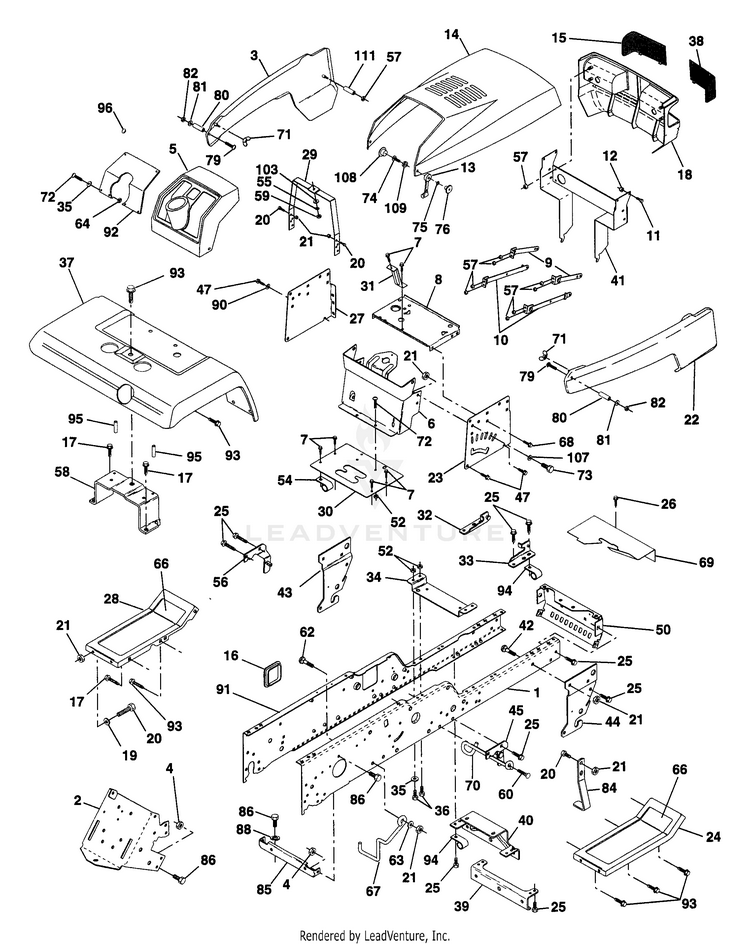

Chassis And Enclosures

...
...
1
FRAME RAIL RH HUS-532140505
...
2
DRAWBAR, GT HUS-532175282
...
3
PANEL LH HUS-532140676
...
4
Nut, Lock Hex 7/16 Unc HUS-873800700
...
5
DASH HUS-532140452
...
6
Dash Asm., Lower HUS-532137253
...
7
Screws HUS-596437001
...
8
BATTERY SUPPORT HUS-532140229
...
9
STRAP ASSY LT HUS-532104618
...
10
STRAP ASSY LT HUS-532106784
...
11
BOLT HUS-532007605
...
12
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
13
LATCH.HOOD. HUS-532109808
...
14
HOOD.HUSQVARNA.ORANGE HUS-532125454
...
15
LENS LH HUS-532157068
...
16
COVER ACCESS HUS-532121794
...
17
BOLT HEX PATCH 3/8-16X3/4 HUS-534200501
...
18
GRILLE.ASM.HUSQVARNA.YTGT HUS-532157236
...
19
GSPH HUS-596134901
...
20
Bolts HUS-596564401
...
21
Nuts HUS-596322601
...
22
SIDE PANEL RH HUS-532140677
...
23
PANEL, DASH RH HUS-532121045
...
24
FOOTREST LT/YT/GT RH HUS-532145243
...
25
BOLT HEX PATCH 3/8-16X3/4 HUS-534200501
...
26
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
27
PANEL, DASH LH HUS-532121046
...
28
ROLL PIN NLA HUS-532124899
...
29
SUPPORT ASS'Y HUS-532124130
...
30
Saddle, Slkscr Vgt HUS-532141522
...
31
STEERING SUPPORT BRACE HUS-532137556
...
32
FRAME PIVOT BRKT ASSY LH HUS-532141315
...
33
FRAME PIVOT BRKT ASSY RH HUS-532141314
...
34
Bracket, Engine Support Rear HUS-532136963
...
35
WASHER 11/32 X 11/16 X 14 GA T HUS-596204101
...
36
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
37
FENDER HUS-532121642
...
38
LENS.RH.HUSQVARNA.YTGT.CL HUS-532157069
...
39
FRONT AXLE BRACKET HUS-532136961
...
40
Bracket, Support Axle/Engine HUS-532136962
...
41
GRILL SUPPORT ASSY HUS-532140625
...
42
Bolts HUS-596728201
...
43
FRONT SUSPENSION BRKT LH HUS-532136939
...
44
FRONT SUSPENSION BRKT RH HUS-532136940
...
45
KIT.SERV.R.H.CHASSIS BRKT/HDW HUS-532155887
...
47
Bolts HUS-596564001
...
50
CHASSIS BRKT HUS-532136575
...
52
Hardware HUS-596040501
...
54
CLIP,INSULATOR HUS-532126470
...
56
KIT.SERV.LH.CHASSIS BRKT/HDW HUS-532155886
...
58
BRACKET ASM., FENDER HUS-532183569
...
59
NUT.HEX..25-20.UNC HUS-532050675
...
60
BOLT HUS-874760620
...
62
Bolts HUS-596728201
...
63
Washers HUS-596140201
...
64
Hardware HUS-596040501
...
66
PAD FOOTREST T HUS-532108256
...
67
BELT GUIDE HUS-532140737
...
68
Screws HUS-596030701
...
69
HEAT SHIELD HUS-532140022
...
70
KEEPER, BELT VGT GROUND HUS-532177679
...
71
NUT.WING.LCK.NYL.NOTCH.1/4-20 HUS-532146525
...
72
Screw, Mach Trhd 5/16-18 x 3/4 HUS-874180512
...
73
Bolts HUS-596564401
...
74
SCREW.PNHD.10-24 HUS-871191008
...
75
LOCKWASHER #10 HUS-810071000
...
76
Nuts HUS-596987401
...
79
SCREW.PAN.HEAD HUS-874981024
...
80
SPACER LT HUS-532007206
...
81
WASHER HUS-819070818
...
82
NUT HUS-873271000
...
84
Stop, Over Center Mower HUS-532138952
...
85
SUPPORT BRACKET HUS-532156404
...
86
Bolts HUS-596238601
...
88
Washers HUS-596238901
...
90
Washers HUS-596238701
...
91
FRAME RAIL LH HUS-532140504
...
92
PLATE, SILKSCR. HUS-532140130
...
93
Bolts HUS-596564001
...
94
CLIP GTV HUS-532100207
...
95
NUT-PUSH YT HUS-532105531
...
96
PLUG-DASH T HUS-532125085
...
103
WASHER SPRING LOCK WASHER WITH HUS-596029801
...
107
Washers HUS-596140201
...
108
SNAP CAP LT HUS-532110356
...
109
WASHER LT HUS-532110357
...
111
SPACER NLA HUS-532001260
