Husqvarna GT 200 (HN2050A) (1993-12) Ride Mower

Model: GT 200 (HN2050A) (1993-12)

Back To Assemblies

Save Part Not Listed?
product name

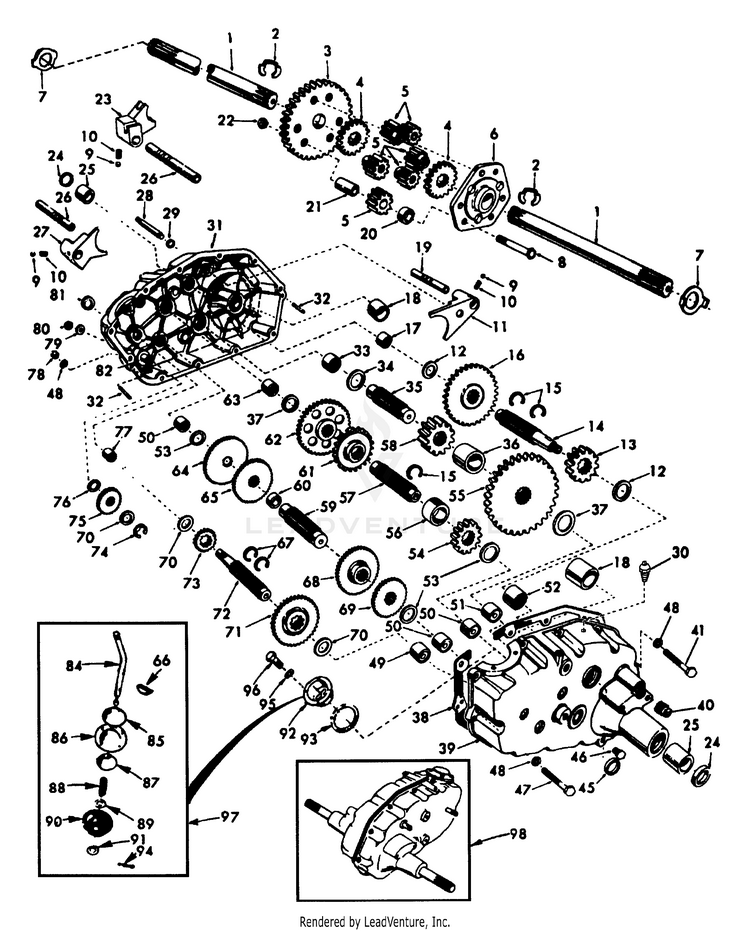

Transaxle

...
...
1
AXLE SHAFT HUS-532004197
...
2
Retaining Ring HUS-812000034
...
3
TRANSAXLE 6SP HUS-532184956
...
4
DIFF GEAR T HUS-532004216
...
5
DIFF PINION T HUS-532004215
...
6
DIFF CARRIER T HUS-532004217
...
7
WASHER HUS-532006256
...
8
Bolt, Hex Head 3/8-24 x 3-1/4 (1" Thread Length) HUS-874020652
...
9
KIT.STEEL BALL(12 BALLS) HUS-532100482
...
10
KIT.SPRING.GT/TIL HUS-532145359
...
11
NLA SHIFT FORK T HUS-532004985
...
12
WASHER THRUST HUS-532006266
...
13
PINION HUS-532004212
...
14
GEAR SHAFT HUS-532004196
...
15
SNAP RING HUS-532006276
...
16
GEAR HUS-532063363
...
17
BEARING T HUS-532008118
...
18
BEARING HUS-532008740
...
19
SHAFT HUS-532122238
...
20
SPACER T HUS-532004218
...
21
PINION HUS-532006252
...
22
NUT HUS-873610600
...
23
FORK T HUS-532006262
...
24
OIL SEAL HUS-532007393
...
25
BEARING HUS-532000992
...
26
SHAFT HUS-532006216
...
27
SHIFT FORK T HUS-532004986
...
28
SHIFT SHAFT HUS-532122254
...
29
SEAL.OIL.SHAFT.SHIFT.T HUS-532006269
...
30
VALVE M HUS-532005855
...
31
TRANSAXLE 6SP.GT (Includes Key No.'s 17, 18, 25, 33, 50, 63, 76, 77 & 82) HUS-532137982
...
32
PIN T HUS-532006277
...
33
NEEDLE BRNG T HUS-532004225
...
34
WASHER RACE BEARING THRUST HUS-532007396
...
35
GEAR SHAFT T HUS-532004198
...
36
SPACER, 4TH REDUCTION GEAR HUS-532004200
...
37
RACE T HUS-532007395
...
38
GASKET HUS-532121878
...
39
Gearcase and Bearings, L.H. (Includes Key Numbers 18, 25, 49, 50 (2), 51 and 52) HUS-532137974
...
40
Pipe Plug 1/2-14 N.P.T. HUS-813320400
...
41
Bolt, Hex 5/16-18 UNC x 1-5/8 HUS-874780526
...
45
SEAL T HUS-532006271
...
46
PIPE PLUG HUS-813060200
...
47
Bolts HUS-596582201
...
48
WASHER SPRING LOCK WASHER WITH HUS-596238801
...
49
BEARING HUS-532004895
...
50
NEEDLE BRNG T HUS-532004222
...
51
NEEDLE BRNG T HUS-532001529
...
52
BEARING STD HUS-532008119
...
53
BRNG RACE T HUS-532004220
...
54
RED PINION T HUS-532004209
...
55
GEAR HUS-532004213
...
56
PINION SPACER T HUS-532004442
...
57
GEAR SHAFT T HUS-532004195
...
58
FINAL PINION T HUS-532004214
...
59
GEAR SHAFT T HUS-532004194
...
60
SPACER T HUS-532007528
...
61
PINION HUS-532004208
...
62
RED GEAR T HUS-532124665
...
63
RACE T HUS-532007398
...
64
LOW SPEED GEAR HUS-532004203
...
65
GEAR.REVERSE.T HUS-532004204
...
66
KEY T HUS-532002898
...
67
RING STD (1 2) HUS-532004926
...
68
GEAR.SPEED.INTERMEDIATE.T/A HUS-532004205
...
69
GEAR.HIGH SPEED HUS-583750601
...
70
THRUST WASHER HUS-532001370
...
71
GEAR.CLUSTER.GT. HUS-532063369
...
72
INPUT SHAFT T HUS-532000208
...
73
LO SPEED PINION T HUS-532004201
...
74
RETAINING RING LT HUS-812000002
...
75
IDLER GEAR T HUS-532001153
...
76
WASHER T HUS-532124862
...
77
NEEDLE BEARING TI HUS-532006803
...
78
Nuts HUS-596436301
...
79
WASHER T HUS-532001167
...
80
NUT.ASF.HEX.7/16 HUS-873610700
...
81
SEAL HUS-532006270
...
82
SHAFT HUS-532007384
...
84
GEAR SHIFT LVR T HUS-532005384
...
85
CAP T HUS-532002978
...
86
COVER HUS-532063385
...
87
GUIDE BALL HUS-532008739
...
88
SPRING TI HUS-532004924
...
89
Washers HUS-594976501
...
90
SEAL.SHIFT HUS-532110542
...
91
Washer 9/16 x 15/16 x 12 Gauge HUS-819181511
...
92
GEAR SHIFT GATE T HUS-532000075
...
93
GASKET T HUS-532006274
...
94
Pins HUS-596029501
...
95
WASHER SPRING LOCK WASHER WITH HUS-596238801
...
96
BOLT HEXAGON BOLT 5/16-18 X 7/ HUS-596322201
...
97
GEAR SHFT LVR T HUS-532124863
...
98
TRANSAXLE 6SP.GT HUS-532137982
