Husqvarna GT 200 (HN2050A) (1993-12) Ride Mower

Model: GT 200 (HN2050A) (1993-12)

Back To Assemblies

Save Part Not Listed?
product name

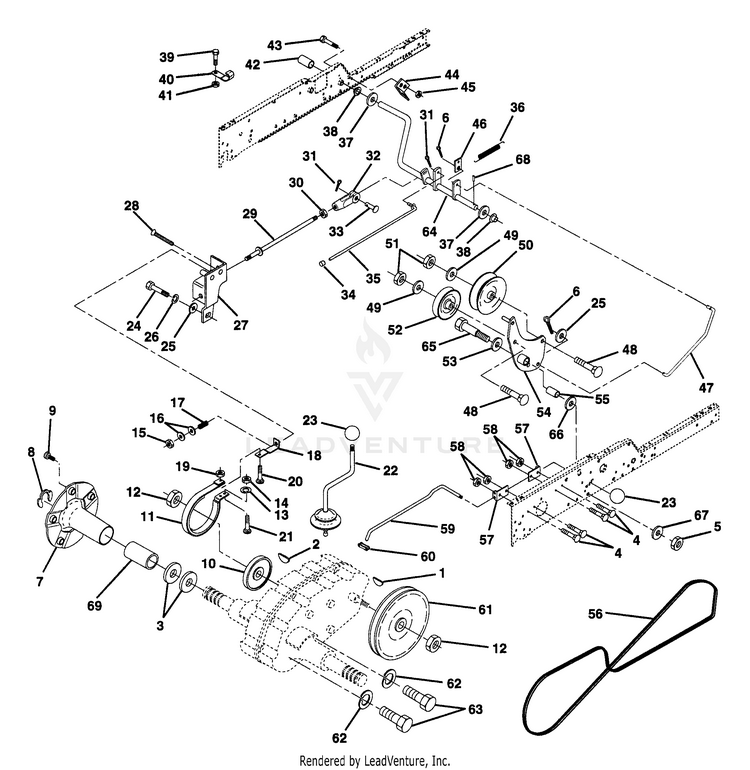

Ground Drive

...
...
1
KEY HUS-532009858
...
2
KEY STD (1373) DANA HUS-532125096
...
3
WASHER T HUS-532007563
...
4
GSPW Bolts HUS-595901601
...
5
Nuts HUS-596322601
...
6
Pins HUS-596029501
...
7
HUB.ASSEMBLY.WHEEL.REAR HUS-532634692
...
8
Klip Ring HUS-812000034
...
9
Bolts HUS-596218701
...
10
BRAKE DRUM T HUS-532000214
...
11
BRAKE BAND ASM HUS-532101122
...
12
NUT STD HUS-532009204
...
13
WASHER SPRING LOCK WASHER WITH HUS-596029801
...
14
NUT.HEX..25-20.UNC HUS-532050675
...
15
NUT HUS-873610600
...
16
Washers HUS-596140201
...
17
SPRING T HUS-532007241
...
18
GUIDE ROD HUS-532007229
...
19
LOCKNUT HUS-532124949
...
20
BOLT.CARR.SQNK.5/16-18UNC.X3/4 HUS-872110506
...
21
BOLT T HUS-872140405
...
22
GEAR SHFT LVR T HUS-532124863
...
23
KNOB HUS-532121466
...
24
Bolts HUS-596564401
...
25
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
26
Washers HUS-596238701
...
27
BRAKE BRACKET HUS-532677637
...
28
SCREW HUS-874370612
...
29
BRAKE ROD T HUS-532005308
...
30
NUT HUS-873610600
...
31
Pins HUS-596917601
...
32
YOKE GTV HUS-532100604
...
33
CLEVIS PIN T HUS-532005102
...
34
PLUNGER CAP HUS-532071673
...
35
Rod, Parking Brake HUS-532137255
...
36
SPRING DRIVE GROUND HUS-532149412
...
37
WASHER HUS-532121749
...
38
NYLINER T HUS-532110895
...
39
Screw, Fin. #10-24 x 1 HUS-874321016
...
40
ACTUATOR INTERLOCK SWITCH HUS-532178575
...
41
LOCKNUT HUS-532069180
...
42
COVER, PEDAL (1 2) HUS-532123533
...
43
BOLT.HEX.1/4.X.3/4.DICHROMATE HUS-874760412
...
44
BRKT SWITCH GT HUS-532104601
...
45
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
46
RETAINER SPRING HUS-532121358
...
47
CLUTCH ROD HUS-532138228
...
48
Bolts HUS-596136201
...
49
Washer 13/32 x 7/8 x 13 Gauge HUS-819131413
...
50
CLG HUS-597025001
...
51
Nuts HUS-596322601
...
52
PULLEY.IDLER.V. HUS-532139123
...
53
WASHER T HUS-532000207
...
54
CLUTCH ARM ASSY HUS-532138390
...
55
BEARING LT (2 2) HUS-532105706
...
56
V-BELT GROUND DRIVE HUS-532137153
...
57
ROD BRACKET GT HUS-532105598
...
58
Hardware HUS-596040501
...
59
ROD SHIFT HI LO HUS-532122253
...
60
CONNECTING LINK HUS-532122268
...
61
TRANSAXLE PULLEY HUS-532137524
...
62
Washers HUS-596238901
...
63
BOLT, HEX HUS-874780720
...
64
SHAFT ASSY GT HUS-532104375
...
65
AXLE BOLT HUS-532067609
...
66
WASHER.BLADE HUS-532140296
...
67
GSPH HUS-596134901
...
68
ROLL PIN STD HUS-532005142
...
69
COVER.HUB.BLACK HUS-532136327
