Husqvarna GT 180 (H1850D) (954000372) (1992-11) Ride Mower

Model: GT 180 (H1850D) (954000372) (1992-11)

Back To Assemblies

Save Part Not Listed?
product name

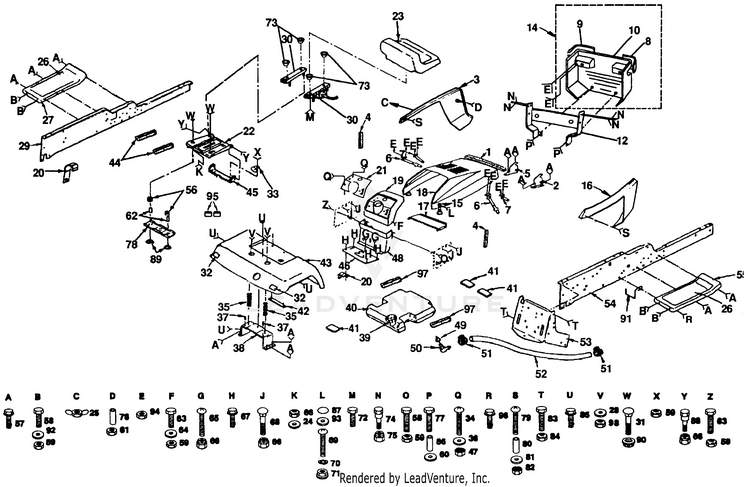

Frame, Fender And Drawbar

...
...
1
FOAM STRIP T HUS-532109458
...
2
SUPPORT RH YTH HUS-532110853
...
3
PANEL LH HUS-532140676
...
4
FOAM STRIP T HUS-532106088
...
5
SUPPORT LH YTH HUS-532110852
...
6
STRAP ASSY LT HUS-532106784
...
7
STRAP ASSY LT HUS-532104618
...
8
LENS.RH.HUSQVARNA.YTGT.CL HUS-532157069
...
9
LENS LH HUS-532157068
...
10
GRILLE.ASM.HUSQVARNA.YTGT HUS-532157236
...
12
SUPPORT ASS'Y HUS-532124574
...
14
GRILLE.ASM.HUSQVARNA.YTGT (Includes Keys 8, 9, and 10) HUS-532157236
...
15
LATCH.HOOD. HUS-532109808
...
16
PANEL, SIDE RH HUS-532125390
...
17
BATTERY SUPT GT HUS-532007985
...
18
HOOD.HUSQVARNA.ORANGE HUS-532125454
...
19
DASH HUS-532140452
...
20
CLIP T HUS-532124967
...
21
Dashplate HUS-532138344
...
22
PAN.ASM.SEAT.1SLOT HUS-532195530
...
23
SEAT HUS-532126826
...
24
WASHER HUS-819111610
...
25
NUT.WING.LCK.NYL.NOTCH.1/4-20 HUS-532146525
...
26
PAD FOOTREST T HUS-532108256
...
27
ROLL PIN NLA HUS-532124899
...
28
Washers HUS-596140201
...
29
RAIL KIT HUS-532151630
...
30
SLIDE SET,SEAT HUS-532124428
...
31
Bolt, Carriage 1/4-20 x 1-3/8 HUS-872050411
...
32
REFLECTOR-TAIL YT HUS-532106202
...
33
CLIP T HUS-532124967
...
34
Screw, Mach. Hd. 5,16-18 x3/4 HUS-874180512
...
35
SPRING.COMPRESSION.SEAT.BLACK HUS-587613301
...
36
WASHER 11/32 X 11/16 X 14 GA T HUS-596204101
...
37
NUT-PUSH YT HUS-532105531
...
38
BRACKET ASM., FENDER HUS-532183569
...
39
CAP.2.25'.VENTED.RATCHET.EPA HUS-581075501
...
40
TANK, FUEL/SENSOR HUS-532127383
...
41
PAD-SPACER LT HUS-532106082
...
42
STRAP HUS-532140675
...
43
FENDER HUS-532121642
...
44
STRIP FORM HUS-532121251
...
45
BRKT,SEAT PIVOT HUS-532126656
...
46
Cover, Shift, Gate HUS-532125458
...
47
Hardware HUS-596040501
...
48
DASH ASSY GT HUS-532104608
...
49
BUSHING OUTLET T HUS-532003645
...
50
FUEL TANK STEM GT HUS-532008710
...
51
HOSE CLAMP HUS-532123487
...
52
FUEL LINE 42" HUS-532008542
...
53
DRAWBAR, GT HUS-532175282
...
54
RAIL KIT HUS-532150383
...
55
FOOTREST LT/YT/GT RH HUS-532145243
...
56
SPRING COMPRESSED HUS-532123740
...
57
BOLT HEX PATCH 3/8-16X3/4 HUS-534200501
...
58
BOLT HUS-874760612
...
59
Nuts HUS-596322601
...
60
Washers HUS-596204201
...
61
NUT.HEX..25-20.UNC HUS-532050675
...
62
SPACER, SPLIT HUS-532130481
...
63
Bolts HUS-596564401
...
64
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
65
Screw, Mach. Cr. Thrd. 5/16 18 x3/4 HUS-874180512
...
66
Hardware HUS-596040501
...
67
Screws HUS-596437001
...
68
GSPW Bolts HUS-595901601
...
69
SCREW.PNHD.10-24 HUS-871191008
...
70
LOCKWASHER #10 HUS-810071000
...
71
Nuts HUS-596987401
...
72
Screw, Hex 5/16-18 x 1 HUS-817190516
...
73
SPACER HUS-532124427
...
74
BOLT HUS-532007605
...
75
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
76
SPACER NLA HUS-532001260
...
77
BOLT HUS-874760440
...
78
BRKT.MNTNG.SWITCH.SEAT.BLACK HUS-532174648
...
79
SCREW.PAN.HEAD HUS-874981024
...
80
SPACER LT HUS-532007206
...
81
WASHER HUS-819070818
...
82
NUT HUS-873271000
...
83
Bolts HUS-596238601
...
84
Locknut 7/16-14 HUS-873680700
...
85
Bolts HUS-596564001
...
86
SPACER HUS-532121235
...
87
SNAP CAP LT HUS-532110356
...
88
BOLT.SHOULDER.5/16-18 HUS-532139888
...
89
BUSHING HUS-532121248
...
90
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
91
BELT RETAINER GT HUS-532105500
...
92
GSPH HUS-596134901
...
93
WASHER LT HUS-532110357
...
94
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
95
CAP SPRING HUS-532124238
...
96
SCREW 3/8-16X1 HUS-817000616
...
97
PAD IDLER TI HUS-532109227
...
98
Nuts HUS-596322601
