Husqvarna GT 180 (H1850D) (954000372) (1992-11) Ride Mower

Model: GT 180 (H1850D) (954000372) (1992-11)

Back To Assemblies

Save Part Not Listed?
product name

Mower Lift

...
...
1
KNOB INF 3/8-16 HUS-532138057
...
2
NUT.HEX.3/8-16UNC HUS-873220600
...
3
ROD ADJ. T HUS-532110811
...
4
Pins HUS-596917601
...
5
SPRING HUS-532002876
...
6
WASHER HUS-819131016
...
7
COVER ACCESS HUS-532121794
...
8
BASE SHIELD HEAT HUS-532122085
...
9
NUT T HUS-532110807
...
10
Hardware HUS-596040501
...
11
BRACKET T HUS-532110903
...
12
Screws HUS-596437001
...
13
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
14
SNAP BUSHING T HUS-532009151
...
15
SUPPORT ASS'Y, DASH HUS-532128141
...
16
WASHER 11/32 X 11/16 X 14 GA T HUS-596204101
...
17
Bolt 3/8-16 x 1-3/4 HUS-874520628
...
18
BRACKET T HUS-532005948
...
19
BRACKET T HUS-532005947
...
20
WASHER FLUT HUS-532067725
...
21
TUBE GT HUS-532005949
...
22
Washers HUS-596238701
...
23
SHAFT ASS'Y LIFT HUS-532124217
...
24
TRUNION LT HUS-532110810
...
25
Washer 15/32 x 3/4 x 16 Gauge HUS-819151216
...
26
Klip Ring HUS-812000037
...
27
BRACKET T HUS-532007594
...
28
SHOULDER BOLT T HUS-532007901
...
29
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
30
LINK-LIFT MOWER T HUS-532007596
...
31
LIFT LINK RH GT HUS-532105503
...
32
RETAINER-SPRNG RB HUS-532124670
...
33
Washers HUS-596238701
...
34
HEIGHT INDICATOR PNTR HUS-532123933
...
35
WASHER T HUS-532120529
...
36
HEIGHT INDICATOR HUS-532123934
...
37
Bolts HUS-596564401
...
38
LIFT HUB-LEVER HUS-532105624
...
39
WASHER HUS-819112410
...
40
Washers HUS-596040101
...
41
SPRING H HUS-532009135
...
42
SUSPENSION ARM GT HUS-532105429
...
43
PIVOT STUD GT HUS-532105413
...
44
LOCKWASHER HUS-810040800
...
45
Nuts HUS-596433401
...
46
SUSP BRACKET GT HUS-532105501
...
47
Bolt, Carriage 3/8-16 x 3/4 HUS-872140606
...
48
Nuts HUS-596322601
...
49
CAP T HUS-532109412
...
50
BELT GUARD HUS-532126651
...
51
Bolts HUS-595901501
...
52
WASHER HUS-819111610
...
53
PANEL, DASH RH HUS-532121045
...
54
PANEL, DASH LH HUS-532121046
...
55
Bolts HUS-596564001
...
56
Nuts HUS-596322601
...
57
NUT.HEX.3/8-16UNC HUS-873220600
...
58
WASHER SPRING LOCK WASHER WITH HUS-596238801
...
59
Bolts HUS-596580801
...
60
PLUG,HOLE HUS-532123935
...
61
FOAM STRIP T HUS-532109458
...
62
Nuts HUS-596322601
...
63
NUT.HEX..25-20.UNC HUS-532050675
...
64
WASHER SPRING LOCK WASHER WITH HUS-596029801
...
65
Washers HUS-596204201
...
66
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
67
E-RING HUS-812000022
...
68
Washer 29/32 x 1-1/4 x 16 Gauge HUS-819292016

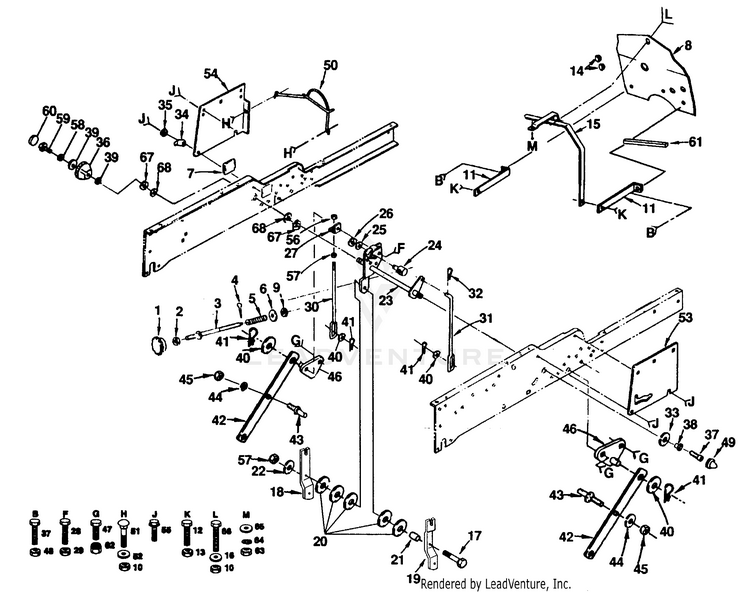

Schematic Image Zoomed
