Husqvarna GT 180 (H1850D) (954000372) (1992-11) Ride Mower

Model: GT 180 (H1850D) (954000372) (1992-11)

Back To Assemblies

Save Part Not Listed?
product name

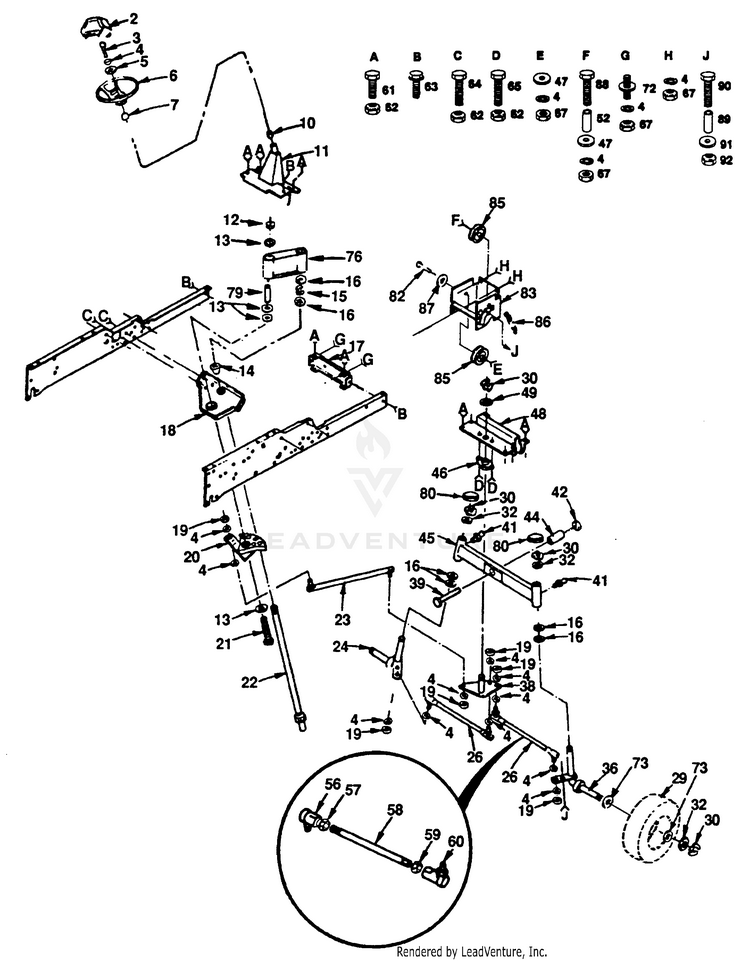

Steering

...
...
2
INSERT,STR WHEEL HUS-532124416
...
3
Bolts HUS-596564401
...
4
Washers HUS-596238701
...
5
WASHER.13/32x2 3/8x12GA HUS-583789501
...
6
STEERING WHEEL HUS-532124415
...
7
KIT.SRVC.STEERINGSHAFT.ADAPTER HUS-587738905
...
10
BEARING T HUS-532009038
...
11
SUPPORT ASSY T HUS-532101274
...
12
Nuts HUS-596433401
...
13
WASHER HUS-532126881
...
14
BEARING-FLANGE GT HUS-532104239
...
15
Klip Ring HUS-812000034
...
16
WASHER THRUST HUS-532006266
...
17
FRAME BRACKET GT HUS-532005213
...
18
BRACKET HUS-532104240
...
19
NUT HUS-873610600
...
20
SECTOR T HUS-532120424
...
21
Bolt, Hex 1/2-13 x 5 Grade 5 HUS-874780880
...
22
SHAFT STEERING GT HUS-532104591
...
23
DRAG LINK T HUS-532110497
...
24
SPINDLE ASSY HUS-532106046
...
26
ROD - NLA - NO OTHER OPTIONS (Inc. Key #56-60) HUS-532109849
...
30
RING CLIP HUS-812000029
...
32
WASHER HUS-532121748
...
36
SPINDLE RH NLA HUS-532106045
...
38
BELLCRANK T HUS-532108137
...
39
Bolt, Hex 5/8-11 x 2-3/4 Grade 5 HUS-874781044
...
41
FITTING.GREASE.TAPERED HUS-532183226
...
42
NUT, CROWNLOCK #10-24UNC HUS-873801000
...
44
TUBE, PIVOT AXLE HUS-532136518
...
45
AXLE.FRONT.CAST.MACHINE.W/ZERK HUS-532178557
...
46
KIT.BUSHING.BELLCRANK HUS-532140342
...
47
Washer 13/32 x 7/8 x 13 Gauge HUS-819131413
...
48
AXLE BRACKET GT HUS-532005284
...
49
Washer 29/32 x 1-1/4 x 16 Gauge HUS-819292016
...
52
SPLIT SPACER YTV HUS-532102933
...
56
JOINT.LH HUS-532109851
...
57
NUT HUS-873700600
...
58
DRAG LINK HUS-532121159
...
59
NUT HUS-873360600
...
60
JOINT.RH HUS-532121160
...
61
BOLT HUS-874760612
...
62
Nuts HUS-596322601
...
63
BOLT HEX PATCH 3/8-16X3/4 HUS-534200501
...
64
Bolts HUS-596564401
...
65
Bolts HUS-596564401
...
67
NUT.HEX.3/8-16UNC HUS-873220600
...
72
PIN HUS-532677928
...
73
WASHER HUS-532121749
...
76
COLLAR HUS-532121177
...
79
TUBE T HUS-532120199
...
80
CAP.SPINDLE.BLACK HUS-532121232
...
82
BOLT.375-16 HUS-874930632
...
83
IDLER BRKT T HUS-532120542
...
85
IDLER-INSIDE T HUS-532124858
...
86
SPRING T HUS-532007190
...
87
WASHER.13/32x2 3/8x12GA HUS-583789501
...
88
BOLT HUS-874760636
...
89
BUSHING LT HUS-532100644
...
90
Bolts HUS-596580801
...
91
WASHER - 25X8.5X2.3 HUS-734116541
...
92
Hardware HUS-596040501
