Husqvarna GT 160 (H1644C) (1991-08) Ride Mower

Model: GT 160 (H1644C) (1991-08)

Back To Assemblies

Save Part Not Listed?
product name

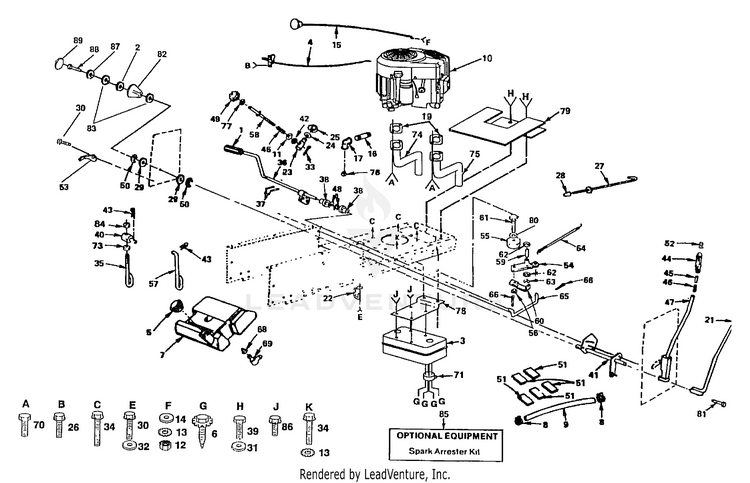

Engine And Drive Controls Group

...
...
1
COVER, PEDAL (1 2) HUS-532123533
...
2
WASHER T HUS-532120529
...
3
MUFFLER HUS-532122440
...
4
CONTROL.THROT.RH.BLK.FLG.44.75 HUS-532132748
...
5
FUEL CAP ASS'Y HUS-532124462
...
6
Screw, Spider Lock HUS-817450808
...
7
FUEL TANK LT HUS-532106020
...
8
HOSE CLAMP HUS-532123487
...
9
HOSE.1/4".LOW.PERM.FUEL.LN.54" HUS-587044854
...
10
Engine, Briggs & Stratton, Model Number 303777 HUS-532131958
...
11
WASHER HUS-819131016
...
12
NUT HUS-873610600
...
13
Washers STANDARD HARDWARE - PURCHASE LOCALLY HUS-596238701
...
14
WASHER PLAIN WASHER 3/8 X 0.08 STANDARD HARDWARE - PURCHASE LOCALLY HUS-596565301
...
15
CHOKE CONTROL HUS-532132781
...
16
Nipple, STD Pipe HUS-813280336
...
17
VALUE.OIL.DRAIN HUS-532428287
...
21
LEVER ROD LT HUS-532121006
...
22
BELT RETAINER HUS-532123788
...
23
TRUNION LT HUS-532110810
...
24
Washer 15/32 x 3/4 x 16 Gauge HUS-819151216
...
25
Ring, Klip HUS-812000037
...
26
Bolts HUS-596582501
...
27
BRAKE PARK ROD HUS-532133261
...
28
PLUNGER CAP HUS-532071673
...
29
Washer 29/32 x 1-1/4 x 16 Gauge HUS-819292016
...
30
BOLT HEX PATCH 3/8-16X3/4 HUS-534200501
...
31
Washers STANDARD HARDWARE - PURCHASE LOCALLY HUS-596140201
...
32
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
33
Pins HUS-596917601
...
34
Bolt, Hex Head 3/8-16 UNC x 1-1/2 HUS-874930624
...
35
LINK ADJ T HUS-532110448
...
36
SHAFT FOOT PEDAL HUS-532122424
...
37
PIN.ROLL.3/16 X 1" HUS-532001572
...
38
BEARING.NYLON HUS-532120183
...
39
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
40
LIFT TRUNION HUS-532132793
...
41
Shaft Assembly, Lift HUS-532131926
...
42
NUT T STANDARD HARDWARE - PURCHASE LOCALLY HUS-532110807
...
43
RETAINER-SPRNG RB HUS-532124670
...
44
GRIP HANDLE HUS-532125631
...
45
PLUNGER BUTTON KIT HUS-532125925
...
46
SPRING HUS-532002876
...
47
LIFT LEVER (incl. Key No. 21) HUS-532123096
...
48
Washers HUS-596933401
...
49
HDLE ADJ LIFT HUS-532121891
...
50
E-RING HUS-812000022
...
51
PAD-SPACER T HUS-532006431
...
52
PLUNGER BUTTON KIT HUS-532125925
...
53
HEIGHT INDICATOR PNTR HUS-532123933
...
54
ARM IDLER HUS-532123789
...
55
PULLEY IDLER HUS-532139245
...
56
Nuts HUS-596322601
...
57
LIFT LINK LT HUS-532110029
...
58
ROD LIFT LT HUS-532110729
...
59
BEARING LT (2 2) HUS-532105706
...
60
SERVICE KIT RETAIN BELT RETAIN HUS-531151801
...
61
Bolt, Hex Head 3/8-16 UNC x 1-1/2 STANDARD HARDWARE - PURCHASE LOCALLY HUS-874930624
...
62
WASHER LT HUS-532110812
...
63
KLIP RING HUS-812000039
...
64
SPRING, RETURN LT HUS-532105709
...
65
LINK.CLUTCH.7.66.2005 HUS-532199652
...
66
Pins HUS-596029501
...
68
BUSHING OUTLET T HUS-532003645
...
69
FUEL TANK STEM GT HUS-532008710
...
71
DEFL MUFFLER LTV HUS-532101326
...
73
NUT.ASF.HEX.7/16 HUS-873610700
...
74
TUBE ASSY EXH LH HUS-532122434
...
75
TUBE ASSY EXH RH HUS-532122435
...
77
NUT.HEX.3/8-16UNC HUS-873220600
...
78
BRACKET MUFFLER HUS-532122439
...
79
HEAT SHIELD HUS-532122981
...
80
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
81
Bolt, Hex Head 3/8-16 UNC x 1-1/2 HUS-874930624
...
82
HEIGHT INDICATOR HUS-532123934
...
83
WASHER HUS-819112410
...
84
NUT.ASF.HEX.7/16 HUS-873610700
...
85
SPARK ARREST HUS-532121851
...
86
Screws HUS-596437001
...
87
WASHER SPRING LOCK WASHER WITH HUS-596238801
...
88
Bolts HUS-596580801
...
89
PLUG,HOLE HUS-532123935
