Husqvarna GT 160 (H1644C) (1991-08) Ride Mower

Model: GT 160 (H1644C) (1991-08)

Back To Assemblies

Save Part Not Listed?
product name

Electrical

...
...
1
NUT.WING.LCK.NYL.NOTCH.1/4-20 HUS-532146525
...
2
Washers HUS-596582301
...
3
BATTERY HOLDDOWN FRONT MOUNT HUS-532150109
...
4
BOLT HUS-872240460
...
5
BATTERY.DRY.30.AMP HUS-532123899
...
6
TRAY.BATTERY HUS-532007603
...
7
HARNESS IGNITION (Includes Key #41) HUS-532124384
...
8
KIT.HOURMETER.SNAP-IN HUS-532169642
...
10
HARNESS T HUS-532110859
...
11
LIGHTBULB HUS-532004152
...
12
PLASTIC TUBE HUS-532007697
...
13
WIRE TIE HUS-532007192
...
14
SWITCH, INTERLOCK HUS-539101080
...
15
BATTERY CABLE HUS-532004799
...
16
KIT.SWITCH.IGNITION HUS-532158913
...
17
COVER.TERMINAL.RED HUS-532154336
...
18
NUT IGNITION HUS-532124211
...
19
KEY.MOLDED.GENERIC HUS-532122147
...
20
INDICATORLIGHTT HUS-532109555
...
21
SWITCH LT HUS-532110712
...
23
CAP BATTERY NLA HUS-532121264
...
24
SWITCH.SNAPMOUNT.NC HUS-532421062
...
25
COVER SWITCH KEY HUS-532141226
...
26
HEX NUT T (1 2) HUS-532004022
...
27
CABLE T HUS-532004207
...
28
SWITCH,PTO HUS-532126018
...
29
CLIP T NLA HUS-532124995
...
31
CLIP T HUS-532002751
...
32
HOSE CLAMP T HUS-532109596
...
33
LOOP-WIRE YTV HUS-532102501
...
34
FUSE HYT HUS-532108824
...
37
BOLT.HEX.1/4.X.3/4.DICHROMATE STANDARD HARDWARE - PURCHASE LOCALLY HUS-874760412
...
38
WASHER SPRING LOCK WASHER WITH STANDARD HARDWARE - PURCHASE LOCALLY HUS-596029801
...
39
NUT.HEX..25-20.UNC STANDARD HARDWARE - PURCHASE LOCALLY HUS-532050675
...
41
RELAY.ASSY.T HUS-532109748
...
42
Washers HUS-596238701
...
43
SWITCH OIL SENSOR HUS-532126825
...
44
KIT SOLENOID .95 HUS-532146154
...
47
SENSOR LOW VOLTAGE HUS-532127385
...
49
BULB LIGHT T HUS-532110143

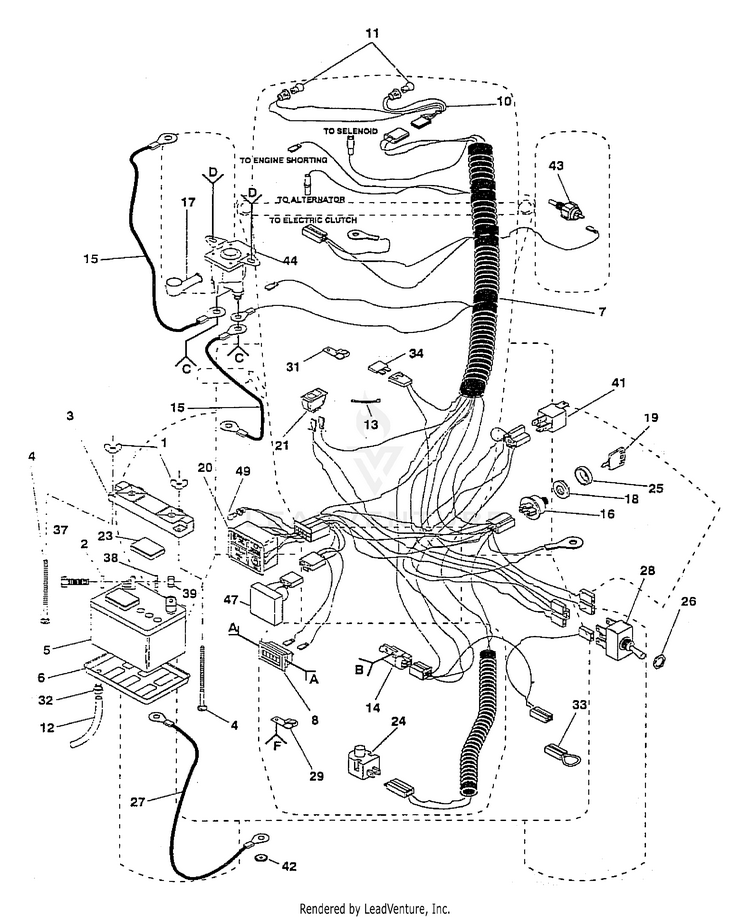

Schematic Image Zoomed
