Husqvarna GS14536HA (1999 & Before) Tractor

Model: GS14536HA (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

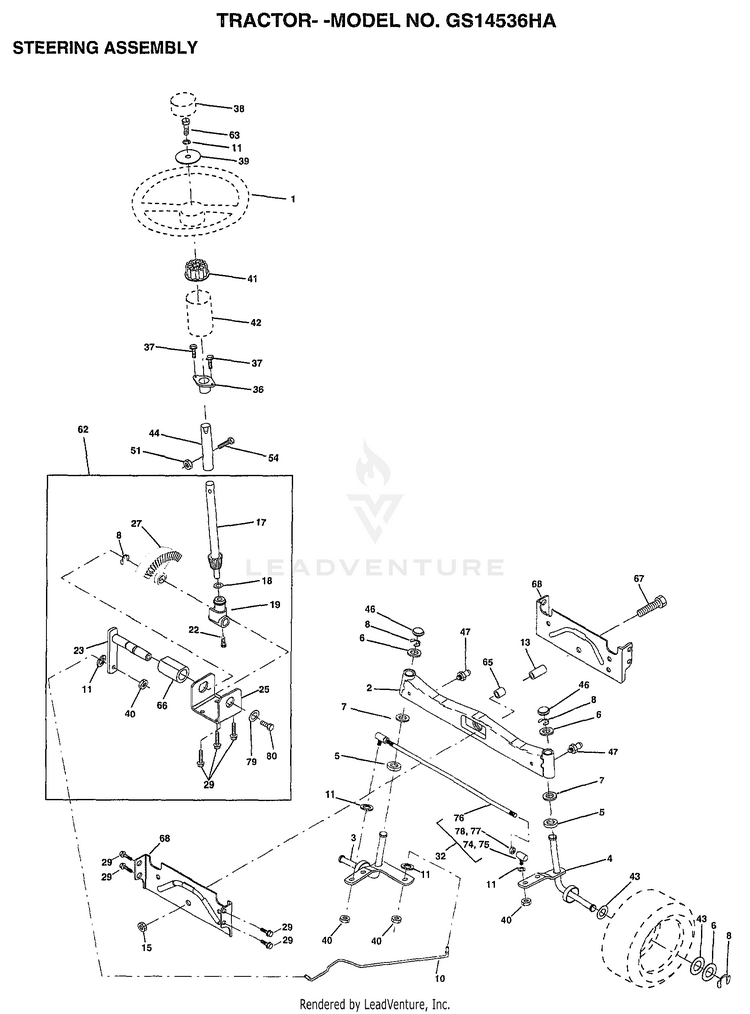

STEERING ASSEMBLY

...
...
1
SUB= 150547 HUS-139768
...
2
SUB= 532137094 HUS-137094
...
3
"SPINDLE ASM,LH" HUS-157479
...
4
"SPINDLE ASM,RH" HUS-157478
...
5
WASHER .T HUS-6266H
...
6
WASHER HUS-121748X
...
7
WASHER HUS-19272016
...
8
RING HUS-12000029
...
10
LINK.DRAG HUS-154432
...
11
Washer, Lock Hvy. Hlcl. Spr. 3/8 HUS-10040600
...
13
BEARING.FRT.SPACER.AXLE HUS-167118
...
15
"NUT-LOC,FLANGE LT" HUS-73901000
...
17
SHAFT ASM STEERIN HUS-156546
...
18
THRUST WASHER HUS-57079
...
19
SUPPORT.SHAFT.STEER HUS-160395
...
22
SCREW.HX.WSH.HD HUS-165857
...
23
SHAFT.ASM.PITMAN HUS-165851
...
25
BRKT-STEERING HUS-154406
...
27
GEAR SECTOR HUS-136874
...
29
SCREW HUS-17490612
...
32
ROD.ASM.TIE.BALL HUS-137347
...
36
BUSHING.STEERING HUS-155099
...
37
"SCREW-TT,10-32 FL" HUS-152927
...
38
CAP WHEEL STEER HUS-140175
...
39
WASHER T HUS-19133808
...
40
GRIPCO NUT HUS-7810H
...
41
ADAPTER LT HUS-100711L
...
42
BOOT.STEER.PL HUS-145054
...
43
WASHER HUS-121749X
...
44
EXT SHAFT STEERIN HUS-153720
...
46
CAP HUS-121232X
...
47
ZERK M HUS-6855M
...
51
NUT HUS-73800500
...
54
BOLT HUS-74780520
...
62
KIT.STEER.ASM HUS-167902
...
63
BOLT HUS-74780616
...
65
SPACER AXLE HUS-154780
...
66
"BEARING-ARM,PITMA" HUS-154404
...
67
BOLT HUS-74781044
...
68
BRACE AXLE HUS-154429
...
74
JOINT.RH HUS-109850X
...
75
JOINT.LH HUS-109851X
...
76
SUB= 137347 HUS-137156
...
77
NUT HUS-73700600
...
78
NUT HUS-73360600
...
79
WASHER HUS-19132012
...
80
BOLT.HX.NYLON3/8-16X3/ HUS-74950612
