Husqvarna GS14536HA (1999 & Before) Tractor

Model: GS14536HA (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

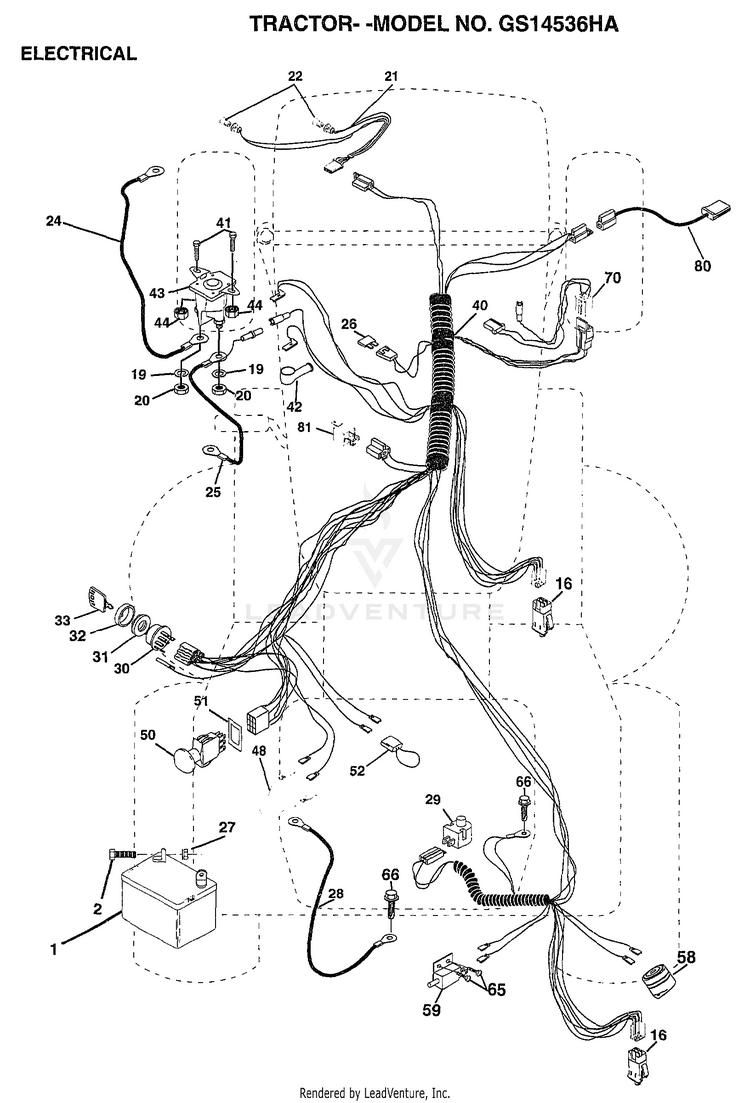

ELECTRICAL

...
...
1
SUB= 123899X HUS-144925
...
2
BOLT LT HUS-74760412
...
16
SWITCH INTERLOCK HUS-153664
...
19
SUB= 10040400 HUS-10090400
...
20
NUT HUS-73350400
...
21
HARNESS.ASM.LIGHT W/4152J HUS-166181
...
22
HEADLAMP BULB HUS-4152J
...
24
"CABLE T, BATTERY" HUS-4799J
...
25
CABLE.BATTERY.CRD HUS-165987
...
26
FUSE.15 AMP HUS-166180
...
27
NUT HUS-73510400
...
28
"CABLE.GRD.6GA/18""BLACK" HUS-127725X
...
29
SWITCH.PLUNGER HUS-160784
...
30
SWITCH IGN 4POS HUS-140301
...
31
NUT IGNITION HUS-124211X
...
32
COVER KEY SWITCH HUS-141226
...
33
KEY HUS-122147X
...
40
HARNESS.IGN.CRD.ELECT HUS-166158
...
41
BOLT HXHD FIN HUS-71110408
...
42
SUB= 154336 HUS-131563
...
43
SUB= 146154 HUS-145673
...
44
NUT HXKEP 1/4X20 HUS-73640400
...
48
ADAPTER AMMETER HUS-140844
...
50
PTO SWITCH.RED HUS-154963
...
51
RING RETAIN PTO HUS-140405
...
52
PROTECTION LOOP HUS-141940
...
58
BUZZER CRD HUS-165943
...
59
SWITCH.FBI.CRD HUS-166299
...
65
SCREW HUS-17211008
...
66
SCREW LT HUS-17490608
...
70
HARNESS.ENGINE HUS-166668
...
80
HARNESS.CLUT.EVX. HUS-146685
...
81
RELAY ASSY T HUS-109748X
