Husqvarna GHT225LE Type 4 (2008-06) Trimmer/Edger

Model: GHT225LE Type 4 (2008-06)

Back To Assemblies

Save Part Not Listed?
product name

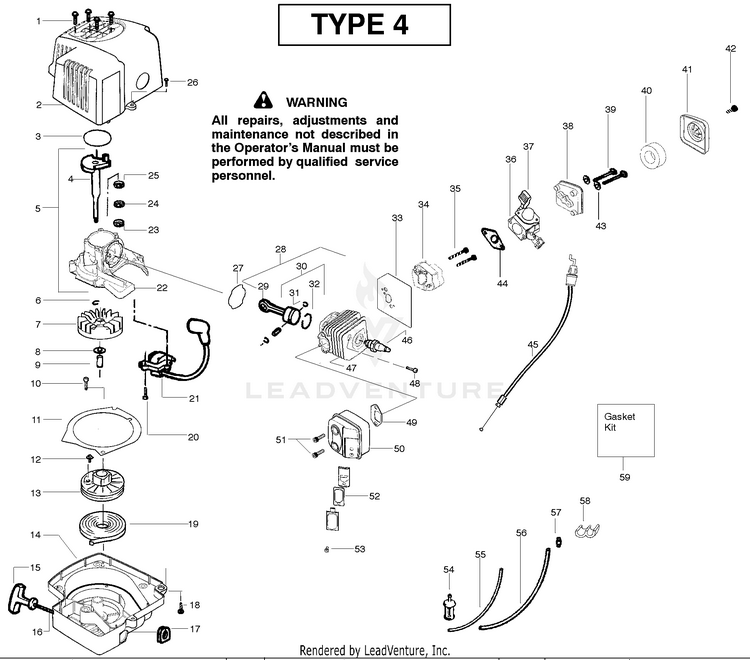

Engine - Type 4

...
...
1
Screw HUS-530016386
...
2
Assy-Shroud/H'shield HUS-530058573
...
3
O-Ring-C'case (kit) HUS-530071486
...
4
CRANKSHAFT ASSY HUS-545145801
...
5
Assy-C/case-C/shaft (Incl. #4,6 & 22-25) HUS-530071681
...
6
Ring-Retainer-C'shaft HUS-530015941
...
7
Assy-Flywheel HUS-530054115
...
8
Washer-Flat HUS-530015828
...
9
Spacer-Flywheel HUS-530055729
...
10
Screw HUS-530015496
...
11
Plate-Baffle HUS-530055681
...
12
Screw HUS-530015882
...
13
Kit-Starter Pulley (Incl.# 12) HUS-530069353
...
14
Assy-Fan Housing HUS-545037404
...
15
Handle-Starter HUS-530027569
...
16
Kit-Rope HUS-530069232
...
17
Grommet-Ignition Module HUS-530019182
...
18
Screw-(f/hsg to shrd) HUS-530016386
...
19
STARTER SPRING HUS-545008010
...
20
Screw HUS-530016357
...
21
Ignition Module HUS-530054137
...
22
Assy-Crankcase HUS-530012510
...
23
Bearing-Outer HUS-530055728
...
24
Seal-Crankcase HUS-530019264
...
25
BEARING BALL 6001 HUS-738210101
...
26
Screw HUS-530015934
...
27
Seal-Cylinder (kit) HUS-530071486
...
28
Kit-Piston/Rod Assy. (Incl. 29 & 30) HUS-530071785
...
29
CONNECTING ROD ASSY HUS-530049817
...
30
Kit-Piston (Incl. 31 & 32) HUS-530071833
...
31
Retainer-Piston Pin HUS-530015162
...
32
RING PISTON HUS-545154001
...
33
Gasket-Carb. Adapt.(kit) HUS-530071486
...
34
Adapter-Carburetor HUS-530057634
...
35
Screw HUS-530016309
...
36
Kit-Carburetor Ass'y. (C1U-W13A) HUS-530071633
...
37
Kit-Choke Lever HUS-530071718
...
38
Air Box HUS-530055680
...
39
Screw HUS-530016429
...
40
Air Filter Foam HUS-530047932
...
41
Air Filter Cover HUS-530055679
...
42
Screw HUS-530015957
...
43
Washer HUS-530015123
...
44
Gasket-Carburetor(kit) HUS-530071486
...
45
Assy-Throttle Cable HUS-530058756
...
46
Spark Plug(RCJ-6Y) HUS-952030249
...
47
Cylinder HUS-530012500
...
48
Screw HUS-530015953
...
49
Gasket-Muffler (kit) HUS-530071486
...
50
Kit-Muffler (incl. # 49,51.52,53) HUS-530071682
...
51
Bolt-Muffler HUS-530016338
...
52
Kit-Spark Arrestor HUS-530071544
...
53
Screw HUS-530015241
...
54
Assy-Pick-up HUS-530095992
...
55
Kit-Fuel Line(small) HUS-530069247
...
56
Kit-Fuel Line(large) HUS-530069216
...
57
Fitting-Fuel Line HUS-530023877
...
58
Clip-Retainer HUS-530016103
...
59
Kit-Gasket (Incl. #3,27,33,44,49) HUS-530071486
...
59
Operator Manual Not Shown HUS-545186732
