product name

Husqvarna GHT225LE Type 2 (2008-06) Trimmer/Edger

Model: GHT225LE Type 2 (2008-06)

Save
 Part Not Listed?Part Not Listed?
product name

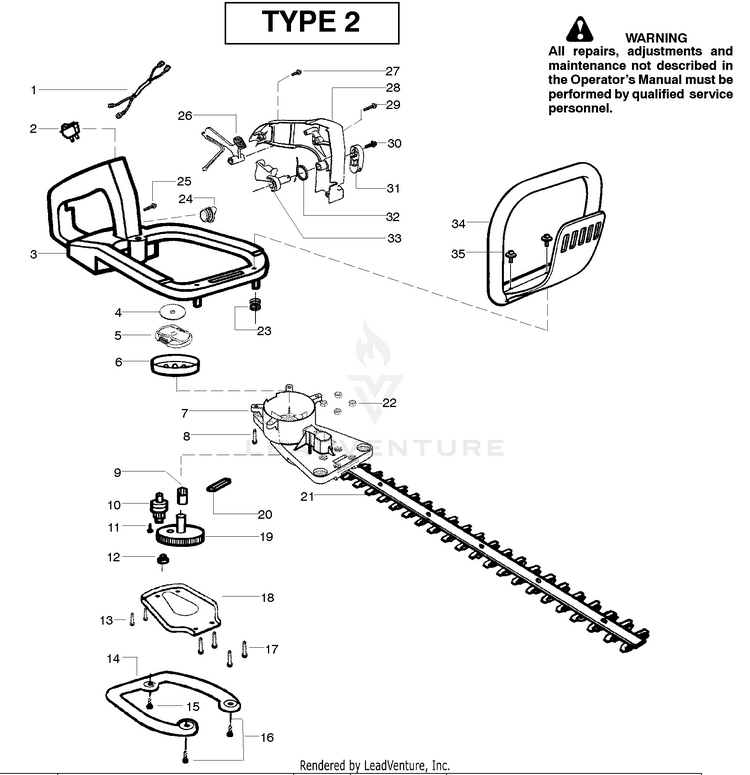

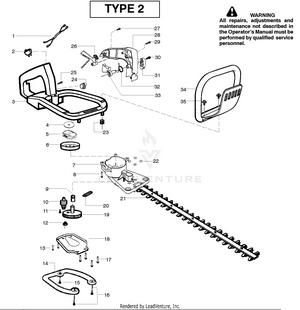

Cutting Equipment - Type 2

...
...
1
WIRE HARNESS ASSY (Incl.#2) PLN-545172901
...
2
Switch-Ignition PLN-530029954
...
3
HANDLE PLN-530071655
...
4
Washer-Clutch (Kit) PLN-545024810
...
5
Assy-Clutch (Kit) PLN-545024810
...
6
Drum-Clutch (Kit) PLN-545024810
...
7
Assy-Gear Box (incl.# 9-11,13,17,22) PLN-530071931
...
8
Screw PLN-530015886
...
9
Bearing-Gear PLN-530016013
...
10
Assy-Pinion PLN-530096009
...
11
Screw PLN-530015886
...
12
Bushing-Blade PLN-530032121
...
13
Screw PLN-530015940
...
14
Plate-Isolator PLN-530036046
...
15
Screw PLN-530015849
...
16
Screw PLN-530015934
...
17
Screw PLN-530016472
...
18
Cover-Gear Box Plate PLN-530029916
...
19
Kit-Drive Gear Ass'y. (Incl. #12) PLN-530071690
...
20
Seal-Blade (Felt) PLN-530029948
...
21
Assy-Blade 22" PLN-530403229
...
22
Nut PLN-530016284
...
23
Spring PLN-530029946
...
24
FUEL CAP ASSY W/RET LW PRM PLN-577858601
...
25
Screw PLN-530016406
...
26
Lockout-Throttle PLN-530053900
...
27
Screw PLN-530015934
...
28
Cover-Handle PLN-530038305
...
29
Screw PLN-530015940
...
30
Screw PLN-530015775
...
31
Lever-Trigger PLN-530029958
...
32
Spring-Trigger PLN-530036123
...
33
Trigger PLN-530053884
...
34
Handle-Front PLN-530094992
...
35
Screw PLN-530015955
...
...
...
