Husqvarna GHT195LE Type 4 (2008-06) Trimmer/Edger

Model: GHT195LE Type 4 (2008-06)

Save
 Part Not Listed?Part Not Listed?
product name

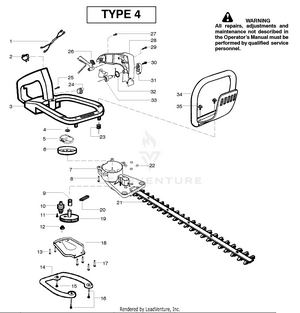

Cutting Equipment - Type 4

...
...
1
WIRE HARNESS ASSY (Incl.#2) PLN-545172901
...
2
Switch-Ignition PLN-530029954
...
3
HANDLE PLN-530071655
...
4
Washer-Clutch PLN-530015611
...
5
CLUTCH ASSY PLN-530057740
...
6
Assy-Drum PLN-530150583
...
7
Assy-Gear Box (incl.# 9-11,13,17,22) PLN-530071931
...
8
Screw PLN-530015886
...
9
Bearing-Gear PLN-530016013
...
10
Assy-Pinion PLN-530096009
...
11
Screw PLN-530015886
...
12
Bushing-Blade PLN-530032121
...
13
Screw PLN-530015940
...
14
Plate-Isolator PLN-530036046
...
15
Screw PLN-530015849
...
16
Screw PLN-530015934
...
17
Screw PLN-530016472
...
18
Cover-Gear Box Plate PLN-530029916
...
19
Kit-Drive Gear Ass'y. (Incl. #12) PLN-530071690
...
20
Seal-Blade (Felt) PLN-530029948
...
21
Assy-Blade 19" PLN-530403228
...
22
Nut PLN-545009101
...
23
Spring PLN-530029946
...
24
FUEL CAP ASSY W/RET LW PRM PLN-577858601
...
25
Screw PLN-530016406
...
26
Lockout-Throttle PLN-530053900
...
27
Screw PLN-530015934
...
28
Kit-Handle Cover PLN-545008001
...
29
Screw PLN-530015940
...
30
Screw PLN-530015775
...
31
Lever-Trigger PLN-530057818
...
32
Spring-Trigger PLN-530036123
...
33
Trigger PLN-530053884
...
34
Handle-Front PLN-530094992
...
35
Screw PLN-530015955

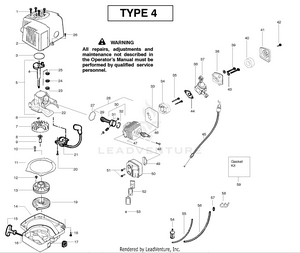

Engine - Type 4

...
...
1
Screw PLN-530016386
...
2
Assy-Shroud/H'shield PLN-530058573
...
3
O-Ring-C'case (kit) PLN-530071486
...
4
CRANKSHAFT ASSY PLN-545145801
...
5
Assy-C/case-C/shaft (Incl. #4,6 & 22-25) PLN-530071681
...
6
Ring-Retainer-C'shaft PLN-530015941
...
7
Assy-Flywheel PLN-530054115
...
8
Washer-Flat PLN-530015828
...
9
Spacer-Flywheel PLN-530055729
...
10
Screw PLN-530015496
...
11
Plate-Baffle PLN-530055681
...
12
Screw PLN-530015882
...
13
Kit-Starter Pulley (Incl.# 12) PLN-530069353
...
14
Assy-Fan Housing PLN-545037404
...
15
Handle-Starter PLN-530027569
...
16
Kit-Rope PLN-530069232
...
17
Grommet-Ignition Module PLN-530019182
...
18
Screw-(f/hsg to shrd) PLN-530016386
...
19
STARTER SPRING PLN-545008010
...
20
Screw PLN-530016357
...
21
Ignition Module PLN-530054137
...
22
Assy-Crankcase PLN-530012510
...
23
Bearing-Outer PLN-530055728
...
24
Seal-Crankcase PLN-530019264
...
25
BEARING BALL 6001 PLN-738210101
...
26
Screw PLN-530015934
...
27
Seal-Cylinder (kit) PLN-530071486
...
28
Kit-Piston/Rod Assy. (Incl. 29 & 30) PLN-530071785
...
29
CONNECTING ROD ASSY PLN-530049817
...
30
Kit-Piston (Incl. 31 & 32) PLN-530071833
...
31
Retainer-Piston Pin PLN-530015162
...
32
RING PISTON PLN-545154001
...
33
Gasket-Carb. Adapt.(kit) PLN-530071486
...
34
Adapter-Carburetor PLN-530057634
...
35
Screw PLN-530016309
...
36
Kit-Carburetor Ass'y. (C1U-W13A) PLN-530071633
...
37
Kit-Choke Lever PLN-530071718
...
38
Air Box PLN-530055680
...
39
Screw PLN-530016429
...
40
Air Filter Foam PLN-530047932
...
41
Air Filter Cover PLN-530055679
...
42
Screw PLN-530015957
...
43
Washer PLN-530015123
...
44
Gasket-Carburetor(kit) PLN-530071486
...
45
Assy-Throttle Cable PLN-530058756
...
46
Spark Plug(RCJ-6Y) PLN-952030249
...
47
Cylinder PLN-530012500
...
48
Screw PLN-530015953
...
49
Gasket-Muffler (kit) PLN-530071486
...
50
Kit-Muffler (incl. # 49,51.52,53) PLN-530071682
...
51
Bolt-Muffler PLN-530016338
...
52
Kit-Spark Arrestor PLN-530071544
...
53
Screw PLN-530015241
...
54
Assy-Pick-up PLN-530095992
...
55
Kit-Fuel Line(small) PLN-530069247
...
56
Kit-Fuel Line(large) PLN-530069216
...
57
Fitting-Fuel Line PLN-530023877
...
58
Clip-Retainer PLN-530016103
...
59
Kit-Gasket (Incl. #3,27,33,44,49) PLN-530071486
...
59
Operator Manual Not Shown PLN-545186732
...
...
...
