Husqvarna GE21 EDGER (2006-07) Trimmer/Edger

Model: GE21 EDGER (2006-07)

Save
 Part Not Listed?Part Not Listed?
product name

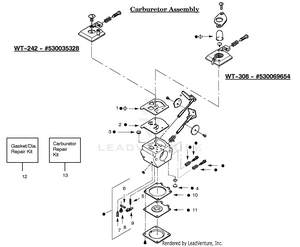

Carburetor

...
...
1
GASKET PLN-504130906
...
2
PUMP DIAPHRAGM PLN-504130807
...
3
Fuel Inlet Screen PLN-530035178
...
4
Welch Plug PLN-530035162
...
5
Metering Lever Spring PLN-530035139
...
6
FULCRUM PIN PLN-505520125
...
7
VALVE/INLET. PLN-503117001
...
8
SCREW PLN-505316717
...
9
LEVER PLN-505520127
...
10
Metering Diaphragm Gasket PLN-530035320
...
11
DIAPHRAGM PLN-503896701
...
12
Gasket/Diaphragm Kit (Incl. 1, 2, 10 & 11) PLN-530035313
...
13
Carburetor Repair Kit WT-242 (Includes 1-12) PLN-530035312
...
13
Carburetor Repair Kit WT-308 These parts are illustrated for clarity. Order complete assembly. PLN-530069658

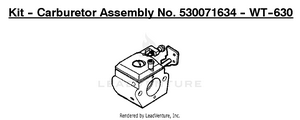

Kit - Carburetor Assembly

...
...
530071634
KIT-CARB (WT-630) PLN-530071634

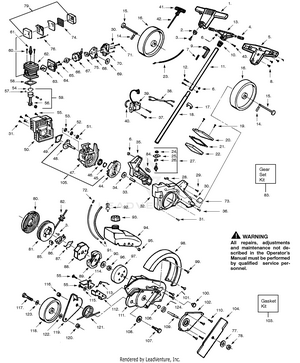

Product Complete

...
...
1
Upper Handle PLN-530036677
...
2
Handle Eyelet PLN-530036985
...
3
Screw PLN-530016080
...
4
Spring Isolator PLN-530036981
...
5
Lower Handle PLN-530036676
...
6
Locknut-Coupling/Shaft PLN-530015768
...
7
Throttle Spring PLN-530036982
...
8
Screw-Handle PLN-503210719
...
9
Throttle Trigger PLN-530036673
...
10
Handle Spring PLN-530036984
...
11
Upper Handle Tube PLN-530095104
...
12
Screw-Shaft PLN-530015999
...
13
Coupling-Handle PLN-530036983
...
14
Bridgepin PLN-530016002
...
15
Axle Pin PLN-530015997
...
16
Rear Wheel PLN-530095126
...
17
Tube Clamp PLN-530015982
...
18
Lower Handle Tube PLN-530095103
...
19
Screw-Filter Cover PLN-530015983
...
20
Air Filter Cover Type 1 & 2 PLN-530036632
...
xx
Air Filter Cover Type 3 PLN-530036631
...
21
Gasket PLN-530036837
...
22
Air Filter Foam PLN-530036664
...
23
Throttle Cable PLN-530036674
...
24
Boot w/Nut PLN-530016038
...
25
Assy-Gound Switch PLN-530053920
...
26
Grounding Terminal PLN-530037066
...
27
Switch Grounding Assy (Incl. 24-26) PLN-530014707
...
28
Speed Nut PLN-530015922
...
29
Screw-Fan Housing PLN-530015774
...
30
Screw-Fan Housing PLN-530015886
...
31
Screw-Fan Housing/Shroud PLN-530016386
...
32
Fan Housing Kit (Incl. 73 & 101) PLN-530047945
...
33
Flywheel Spacer PLN-530036927
...
34
Washer PLN-530015828
...
35
Axle Cover PLN-530038301
...
36
Screw-Fan Housing PLN-530015940
...
37
Screw-Ignition Module PLN-530015954
...
38
Switch Wire Ass’y. PLN-530014655
...
39
Ignition Module PLN-530039163
...
40
Spacer-Ignition Module PLN-530036145
...
41
Starter Handle PLN-530027569
...
42
Rope Kit PLN-530069421
...
43
Screw-Coupling PLN-530015774
...
44
Assy-Flywheel PLN-530054115
...
45
Retaining Ring-C’case PLN-530015945
...
46
C’case Seal PLN-530019179
...
47
Crankcase Ass’y. (Incl. 45, 46, 51 & 52) PLN-530014861
...
48
Crankshaft Ass’y. PLN-530014864
...
49
Gasket-Crankcase PLN-530-019181
...
50
Shroud PLN-530036555
...
51
Outer Bearing PLN-530032124
...
52
Retaining Ring-C’shaft PLN-530015941
...
53
BEARING BALL 6001 PLN-738210101
...
54
Piston Ring PLN-530036404
...
55
Screw-Shroud PLN-530015934
...
56
Connecting Rod Ass’y. (Incl. 53) PLN-530069615
...
57
Piston Pin Retainer PLN-530015162
...
58
Gasket-Cylinder PLN-530019223
...
59
Piston Kit (Incl. 54) PLN-530069621
...
60
Screw-Cylinder PLN-530015953
...
61
Spark Plug (RCJ-8Y) PLN-530030075
...
62
Cylinder Kit PLN-530069619
...
63
Cylinder Gasket PLN-530019233
...
64
Carb. Adaptor PLN-530036646
...
65
Screw-Carb Adaptor PLN-530016014
...
66
Carb. Gasket PLN-530019194
...
67
Carburetor w/Choke Type 1 & 2 (WT-242) PLN-530035328
...
xx
Kit-Carb. (Wt-630) PLN-530071634
...
xx
Carburetor w/Choke Type 3 (Wt-630) PLN-530071634
...
68
Air Box Base PLN-530036626
...
69
Foam Seal PLN-530019190
...
70
Airbox Cover PLN-530036622
...
71
Screw-Airbox Cover PLN-530015887
...
72
Fuel Line Fitting PLN-530023877
...
73
Fuel Line Retainer PLN-530038308
...
74
Muffler Screen PLN-530036180
...
75
Gasket-Carb. PLN-530019144
...
76
Spring-Muffler Old Style PLN-530016197
...
77
Washer-Blade PLN-530016033
...
78
Nut-Blade PLN-530016032
...
79
Muffler Kit (Incl. 73-78) PLN-530069660
...
80
Starter Spring PLN-530037229
...
81
Starter Pulley Kit (Incl. 3, 83 & 85) PLN-530069418
...
82
Eyelet PLN-530037224
...
83
Gear Set Kit PLN-530071258
...
84
Gasket-Tube PLN-530019199
...
85
Starter Dog PLN-530027162
...
86
Starter Cam PLN-530042073
...
87
Starter Dog Wire PLN-530042072
...
88
Starter Cup PLN-530036922
...
89
Clutch Ass’y. PLN-530014832
...
90
Washer-Belleville PLN-530015127
...
91
Fuel Line Kit PLN-530069599
...
92
Assy-Fuel Pick-up PLN-530095646
...
93
Fuel Cap Ass’y. PLN-530014347
...
94
Fuel Tank Ass’y. PLN-530058793
...
95
Fuel Tank Isolator PLN-530036792
...
96
Nut PLN-530626605
...
97
Drum Clutch PLN-530036665
...
98
Front Shield PLN-530095082
...
99
Screw PLN-530015843
...
100
Dustplug PLN-530036935
...
101
Screw-Bearing Holder PLN-530015770
...
102
Bearing Holder Ass’y. Type 1 PLN-530036934
...
xx
Bearing Holder Ass’y. Type 2 & 3 PLN-530037367
...
103
Gasket Kit (Incl. 21,49,58,63,66,& 75) PLN-530069624
...
104
Blade PLN-530095086
...
105
KIT ASSY C'CASE/C'SHAFT (Incl. 45-48, & 51-53) PLN-530071625
...
106
Retainer Ring PLN-530037625
...
107
Shoulder Bolt PLN-530016067
...
108
Washer PLN-530016040
...
109
Drive Shaft PLN-530095070
...
110
Screw PLN-530015814
...
111
Gear Box Ass’y. PLN-530014894
...
112
Back Plate PLN-530036675
...
113
Spring PLN-530036923
...
114
Height Lever PLN-530036683
...
115
Retainer-Starter Pulley PLN-530027163
...
116
Nut-Swing Arm PLN-530016063
...
117
Bolt-Front Wheel PLN-530015981
...
118
Front Wheel PLN-530095125
...
119
Swing Arm PLN-530037279
...
120
Locknut-Swing Arm PLN-530015515
...
121
Front Axle Spring PLN-530036884
...
122
Washer-Thrust PLN-530001717
...
123
Washer-Flat PLN-530015151
...
124
Washer-Thrust PLN-530016042
...
124
Operator Manual Type 1 & 2 Not Shown PLN-530068542
...
124
Operator Manual Type 3 French/English Not Shown PLN-545117553
...
124
Starting Instruction Decal Type I Not Shown PLN-530036662
...
124
Starting Instruction Decal Type 2 Not Shown PLN-530037580
...
124
Starting Instruction Decal Type 3 French/English Not Shown PLN-530056387
...
124
Blade Shield Decal Not Shown PLN-530036658
...
124
Wrench-Hex ( 5/32") Not Shown PLN-530031159
...
...
...
