Husqvarna FY850F (1998) Tiller

Model: FY850F (1998)

Back To Assemblies

Save Part Not Listed?
product name

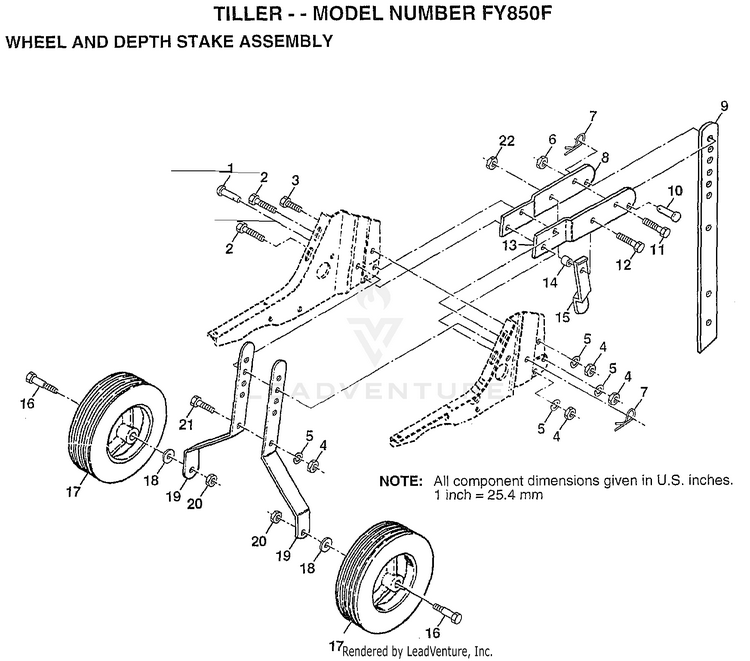

WHEEL AND DEPTH STAKE

...
...
1
DRILLED RIVET RT HUS-9194R
...
2
BOLT HUS-74760520
...
3
BOLT HUS-74760512
...
4
NUT.HEX.5/16-18 HUS-73220500
...
5
LOCKWASHER HUS-10040500
...
6
NUT HUS-73800600
...
8
SUB= 1952J500 HUS-1952J
...
9
SUB= 2582J HUS-122233X
...
10
SUB= 4929H HUS-326J
...
11
BOLT HUS-74780628
...
12
BOLT.HEX.5/16-1.5 HUS-74760524
...
13
SUB= 1951J500 HUS-1951J
...
14
WASHER HUS-120958X
...
15
STAKE SPRING TI HUS-5388J
...
16
BOLT SHOULDER HUS-121117X
...
17
SUB= 107644X HUS-9188R
...
18
WASHER HUS-19131311
...
19
SUB= 9190R500 HUS-9190R
...
20
SUB= 73690600 HUS-73680600
...
21
SUB= 77394 HUS-74760516
...
22
NUT HUS-73800500
