Husqvarna FX26S Type 2 (2009-03) Trimmer/Edger

Model: FX26S Type 2 (2009-03)

Back To Assemblies

Save Part Not Listed?
product name

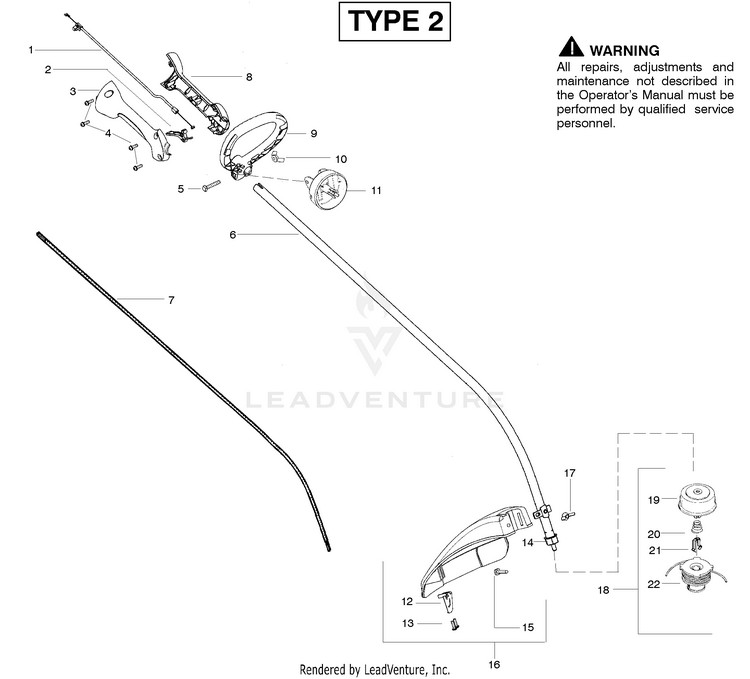

Handle & Controls - Type 2

...
...
1
Assy-Throttle Cable HUS-530057991
...
2
Trigger HUS-530058000
...
3
Throttle Hsg. (Right) HUS-530057582
...
4
Screw-Throttle Hsg. HUS-530015880
...
5
Bolt-Handle HUS-530015786
...
6
Kit-Drive Shaft Assy. HUS-530071990
...
7
Shaft- Flex HUS-530096276
...
8
Throttle Hsg. (Left) HUS-530057581
...
9
Assy-Handle (Incl . 5,10,11) HUS-545026201
...
10
Wingnut HUS-530401992
...
11
Assy-Handle HUS-545026201
...
12
Line Limiter HUS-530052286
...
13
Screw HUS-530015957
...
14
Dust Cup HUS-530095563
...
15
Bolt HUS-530015820
...
16
Kit-Shield Assy (Incl. 12,13,15,17) HUS-530071795
...
17
Wingnut HUS-530401992
...
18
Accy-TNG VI Cutting Head (Incl. 19,20,21,22) HUS-952711621
...
19
KIT ASSY HUB W/ARBOR HUS-530071306
...
20
Spring-Compression HUS-530053241
...
21
Clip-Retainer-Head HUS-530401957
...
22
Accy- Spool w/Line HUS-952711616
...
22
Operator Manual Not Shown HUS-545186836
...
22
Decal-Shaft Warning Not Shown HUS-545144405
