product name

Husqvarna FX26 Type 1 (2008-06) Trimmer/Edger

Model: FX26 Type 1 (2008-06)

Save
Part Not Listed?Part Not Listed?

product name

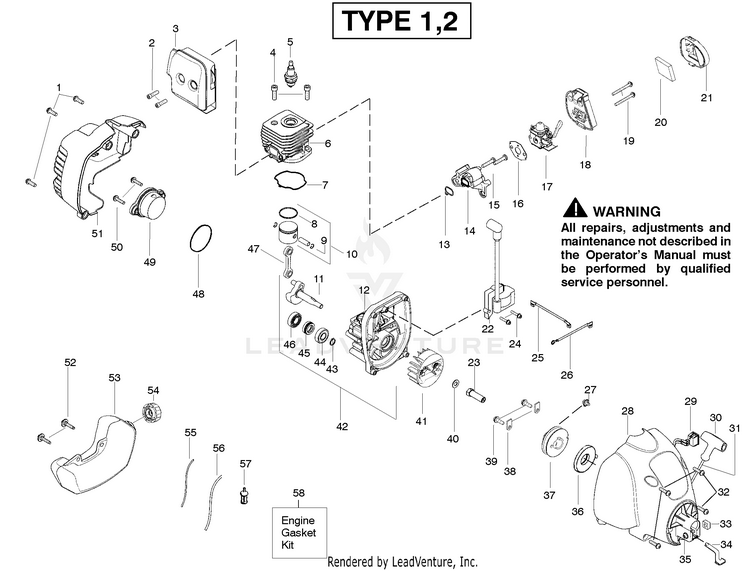

Engine

...

...
2
Bolt-Muffler PLN-530058982

...
3
Assy-Muffler/Shield (Incl. 2) PLN-530057538

...
4
Screw-Cylinder PLN-530015953

...
5
Spark Plug (RCJ 6Y) PLN-952030249

...
6

...
7
Seal-Cylinder (kit) PLN-530071750

...
8
RING PISTON PLN-545154001

...
9
Retainer-Piston Pin PLN-530015162

...
10
Kit-Piston (Incl. 8, 9) PLN-530071833

...
11
Assy-Crankshaft PLN-530057829

...
12
Assy-Crankcase (Incl. 44-46) PLN-530012542

...
13
Seal-Cyl/Carb.(kit) PLN-530071750

...
14
Adapter-Carb. PLN-530057547

...

...
16
Gasket-Carb. (kit) PLN-530071750

...
17
Kit-Carb. Zama (C1U-W18) PLN-530071752

...
17
Kit-Carb. Zama (C1U-W18) (Note: Repair kits are not available for this carburetor) PLN-530071752

...
18

...

...
20
Foam-Air Filter PLN-530057781

...
21
Cover-Air Box PLN-530057584

...
22
Ignition Module PLN-530039223

...
23
Coupling-Drive PLN-530038604

...

...
25
Assy-Leadwire PLN-530014663

...
26
Assy-Ground Wire PLN-530014662

...

...
28
Assy.-Fan Hsg PLN-530058600

...
29
Kit-Switch PLN-530071356

...
30
Handle-Starter PLN-530027569

...
31
Kit - Rope PLN-530071767

...


...
34
Clip-Spring PLN-530057588

...

...
36
STARTER SPRING PLN-545008010

...
37
Kit-Pulley-Starter PLN-530071786

...
38
Retainer-Pulley PLN-530027523

...

...
40
Washer-Flat PLN-530015828

...
41
Assy-Flywheel PLN-530054115

...
42
Assy-C'case & C'shaft (Incl. 11,12,43) PLN-530071768

...
43
Retain. Ring-C'shaft PLN-530015941

...
44
Outer Bearing PLN-530055728

...
45
Seal-C'case PLN-530019264

...
46
BEARING BALL 6001 PLN-738210101

...
47
CONNECTING ROD ASSY PLN-530049817

...
48
O-Ring-C'case (kit) PLN-530071750

...
49
Assy-Plug (incl.48) PLN-530057954

...

...
51
Shroud-Rear PLN-530057580

...
52
Retainer-Tank PLN-530016431

...
53
Assy-Fuel Tank (incl. filter, lines & fuel cap) PLN-545104103

...
54
Assy-Fuel Cap PLN-530014347

...
55
Kit-Fuel Line (Small) PLN-530069247

...
56
Kit-Fuel Line (Large) PLN-530069216

...
57
Assy-Fuel Pickup PLN-530095646

...
58
Kit-Engine Gasket (Incl. 7,13,16,48) PLN-530071750

...
58
Choke Lever - Zama Not Shown PLN-530057827

...
58
Choke Lever - Walbro Not Shown PLN-530058662

...
58
Bulb-Purge Not Shown PLN-530058709

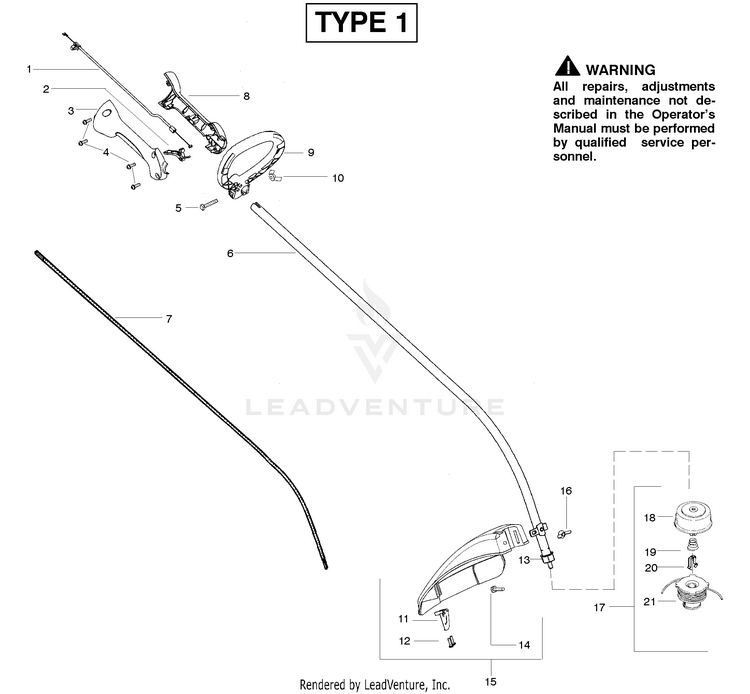

Shaft - Type 1

...

No Parts Available for this Schematic

...
...
...
