Husqvarna FT 900 - 96083000603 (2012-10) Cultivator/Tiller

Model: FT 900 - 96083000603 (2012-10)

Save Part Not Listed?
product name

BELT GUARD & PULLEY

...
...
41
SPRING.EXTENSION HUS-532180307
...
17
KEY T HUS-532002649
...
26
Nuts HUS-596436301
...
10
GUARD.BELT.TILLER.ORANGE HUS-532440709
...
23
NEEDS DESCRIPTION HUS-580530001
...
14
BELT Forward Motion HUS-532133035
...
28
WASHER SPRING LOCK WASHER WITH HUS-596029801
...
11
Washers HUS-596582301
...
1
BRACKET.ASM.GUARD.BELT.BLAC HUS-532446043
...
4
Bolt, Hex Head 1/2-20 x 3/4 HUS-874610812
...
24
Screws HUS-595305701
...
27
NUT.HEX..25-20.UNC HUS-532050675
...
5
NUT.LOCK.5/16-18 HUS-532751153
...
18
SHEAVE,TRANS."D" HUS-532151236
...
25
SHAFT.IDLER.TILLER HUS-532106968
...
32
SHEAVE.TRANS HUS-532151223
...
20
KLIP RING TI HUS-812000036
...
12
NUT-CAP TI HUS-583644101
...
8
ARM.ASM.REV.IDLER.TILLER.BLACK HUS-532446051
...
9
Bolts HUS-596434801
...
15
Belts Reverse HUS-599385301
...
16
RETAINING RING LT HUS-812000028
...
29
PAD IDLER TI HUS-532109227
...
3
SCREW.HXTAP.10-24 HUS-532150050
...
2
CONDUIT.CLIP.PLATED HUS-532009484
...
22
PULLEY.W/SPACER.2.25 HUS-532180522
...
21
NUT.LOCK.5/16-18 HUS-532751153
...
31
ENGINE.PULLEY.TILLER HUS-532101189
...
42
BUSHING SPACER.AXLE HUS-532437259
...
30
SCREW HUS-823200404
...
19
BOLT.BELT.GUARD HUS-532188502
...
7
PULLEY.IDLER.W/SPACER. HUS-532430846
...
13
BOLT.CARRIAGE.1/4-20 X 7/8 HUS-872110407

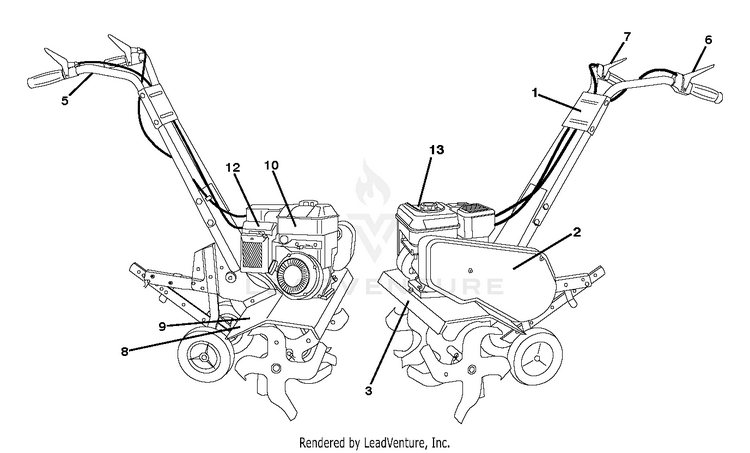

DECALS

...
...
8
DECAL TI HUS-532120075
...
3
DECAL.TINESHIELD.FTT.26".HUSQ. HUS-532439989
...
10
DECAL.B&S.900.TANK.REF.276991 HUS-532409143
...
2
DECAL.BADGE.170MM.TEXTLOGO. HUS-581627301
...
5
DECAL TI (2 2) HUS-532110614
...
7
DECAL.CONTROL.REV HUS-584449101
...
13
DECAL,ETHANOL E85 WARNING HUS-532423830
...
6
DECAL.CONTROL FOR HUS-584449001
...
12
DECAL.B&S.900.A/S.C (279005) HUS-532432278
...
9
DECAL.WARNING.SHLD.ENG/FR HUS-532422972
...
1
DECAL.CONSOLE.DBBND.FT900.HUSQ HUS-532440613

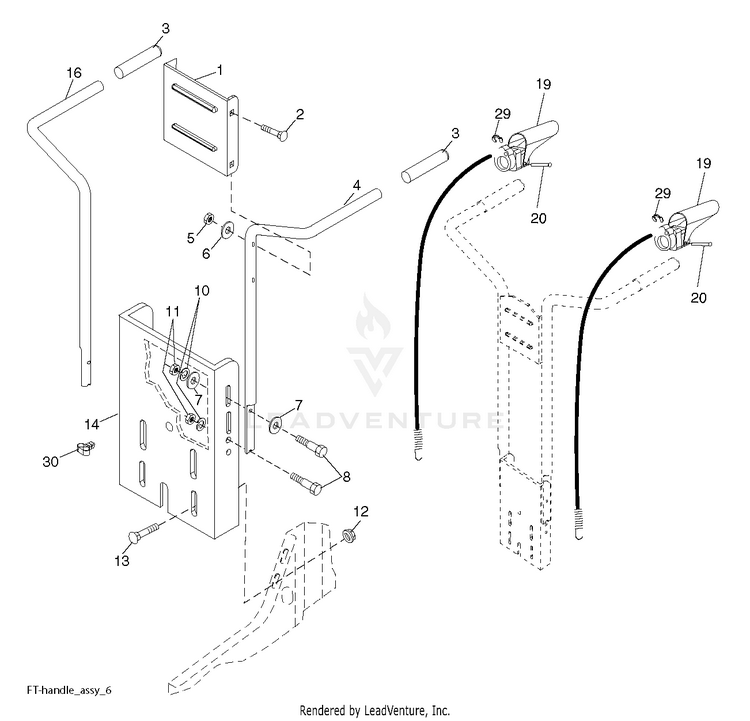

HANDLE

...
...
13
GSPW Bolts HUS-595901601
...
16
HANDLE.PNT.RH.DOUBLE.BEND HUS-532440715
...
1
BRACKET.HANDLE.ORANGE HUS-532440718
...
29
RETAINER RING HUS-582730101
...
11
Nuts HUS-596436301
...
7
GSPH HUS-596134901
...
5
NUT.LOCK.5/16-18 HUS-532751153
...
19
CONTROL ASM.TINE.49.88 HUS-532188562
...
6
WASHER 11/32 X 11/16 X 14 GA T HUS-596204101
...
20
PIN, PIVOT HUS-532188555
...
14
PANEL.PNT.HANDLE.ORANG.MS668 HUS-532446074
...
10
WASHER SPRING LOCK WASHER WITH HUS-596238801
...
2
Bolts HUS-596030801
...
30
CLIP.ROUTING DUAL HUS-532181580
...
8
Screws HUS-595305701
...
12
Hardware HUS-596040501
...
4
HANDLE.PNT.LH.DOUBLE.BEND HUS-532440714
...
3
GRIP.HANDLE.BLACK HUS-532165787

TINE ASSEMBLY

...
...
3
TINE.ASM.INNER.LH.13.PNT RH HUS-583854202
...
6
RIVET TI HUS-532004929
...
2
SPRING RETAINER HUS-532003146
...
5
TINE.ASM.OUTER.LH.13.BLACK LH HUS-532446057
...
4
TINE.ASM.INNER.RH.13.PNT LH HUS-583854402
...
1
TINE.ASM.OUTER.RH.13.BLACK RH HUS-532446058

TRANSMISSION

...
...
17
WASHER HUS-819092016
...
2
Bolt, Hex 3/8-16 x 3-1/4 HUS-874780652
...
20
B&S 12T402-1613-F8 FOR SERVICE & PARTS 1-800-233-3723 HUS-000000000
...
21
NUT.LOCK.5/16-18 HUS-532751153
...
6
SHIELD.PNT.TINE.24".ORANGE HUS-532440704
...
3
GSPH HUS-596134901
...
16
Washers HUS-596135301
...
18
WASHER SPRING LOCK WASHER WITH HUS-596029801
...
5
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
14
SPACER.SPLIT.327 X 1.00 HUS-532446548
...
11
BOLT, HEX HEAD 5/16-18 X 2.5 HUS-532187912
...
1
Bolts HUS-596582201
...
10
Hardware HUS-596040501
...
12
TRANSMISSION.ASM.W/1".D-SHAFT HUS-532151222
...
8
BRACKET.ENGINE.LH.TILLER.BLACK LH HUS-584325101
...
19
Bolt, Hex 1/4-28 x 3/4 Gr. 5 HUS-874610412
...
7
BRACKET.ENGINE.RH.TILLER.BLACK RH HUS-532446006

WHEEL & DEPTH STAKE ASSEMBLY

...
...
1
PIN.CLEVIS.HD.25X1.75.TILLER HUS-532443676
...
13
SUPPORT.STAKE.DEPTH.LH.BLACK LH HUS-532446060
...
3
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
17
WHEEL.8X1.75.5SPK.MAG.WHITE.BR HUS-532427026
...
6
Nuts HUS-596322601
...
7
COTTER PIN HUS-532004921
...
16
BOLT.SHOULDER HUS-532121117
...
4
Nuts HUS-596436301
...
25
Washer 1 17/32 X 7/8 X 16 Ga HUS-819171416
...
19
BRACKET.WHEEL.BLACK HUS-532446011
...
2
Screws HUS-595305701
...
9
STAKE.DEPTH.13.25.W/9HOLES HUS-532446066
...
11
BOLT HUS-582740701
...
8
SUPPORT.STAKE.RH.BLK(2 2MC) RH HUS-532001952
...
15
SPRING.STAKE HUS-532446063
...
22
Hardware HUS-596040501
...
21
Bolts HUS-596580801
...
24
Hardware HUS-596040501
...
5
WASHER SPRING LOCK WASHER WITH HUS-596238801
...
10
RIVET TI HUS-532004929
...
20
Nuts HUS-596322601
