Husqvarna FN850H (1999) Tiller

Model: FN850H (1999)

Back To Assemblies

Save Part Not Listed?
product name

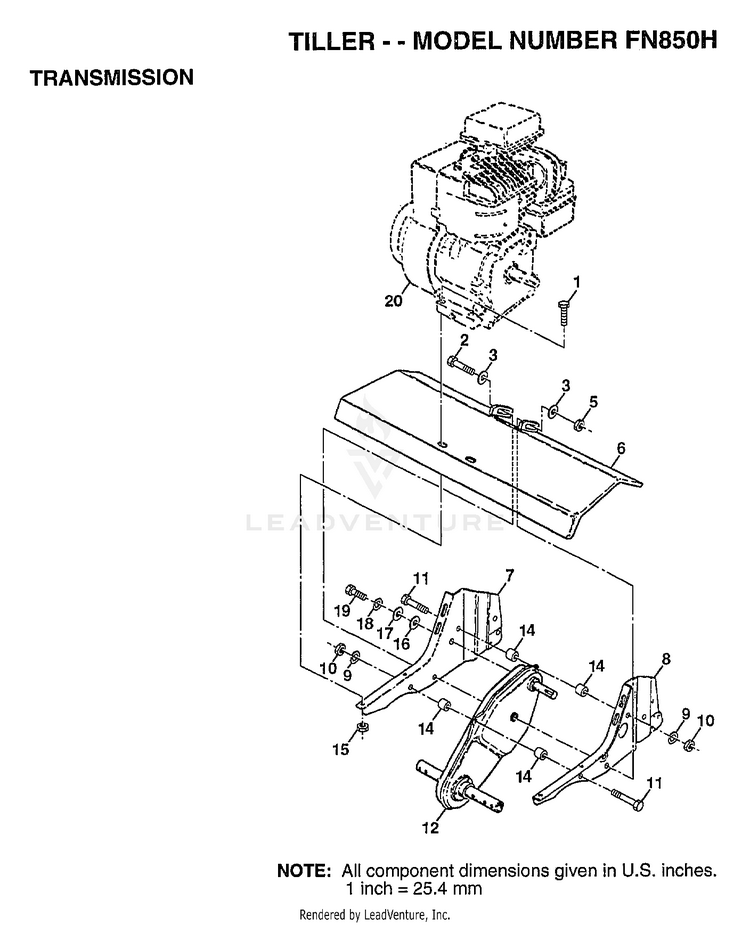

TRANSMISSION

...
...
1
BOLT.HEX.5/16-1.5 HUS-74760524
...
2
BOLT HEX 3/8-16 HUS-74780652
...
3
WASHER HUS-19131311
...
5
NUT HUS-73800600
...
6
"SHIELD, TINE" HUS-9056R505
...
7
BRACKET.ENGINE.RH HUS-165835
...
8
BRKT.ENGINE.LH HUS-165834
...
9
LOCKWASHER HUS-10040500
...
10
NUT.HEX.5/16-18 HUS-73220500
...
11
SUB= 74780544 HUS-74760544
...
12
SUB= 165808 HUS-151222
...
14
SPLIT SPACER RT HUS-9173R
...
15
NUT HUS-73510500
...
16
WASHER HUS-19091412
...
17
WASHER HUS-19092016
...
18
LOCKWASHER HUS-10040400
...
19
BOLT HUS-74610412
...
20
CHECK WITH SUPPLIER HUS-SUPPLIER
