Husqvarna FN850F (1998) Tiller

Model: FN850F (1998)

Save Part Not Listed?
product name

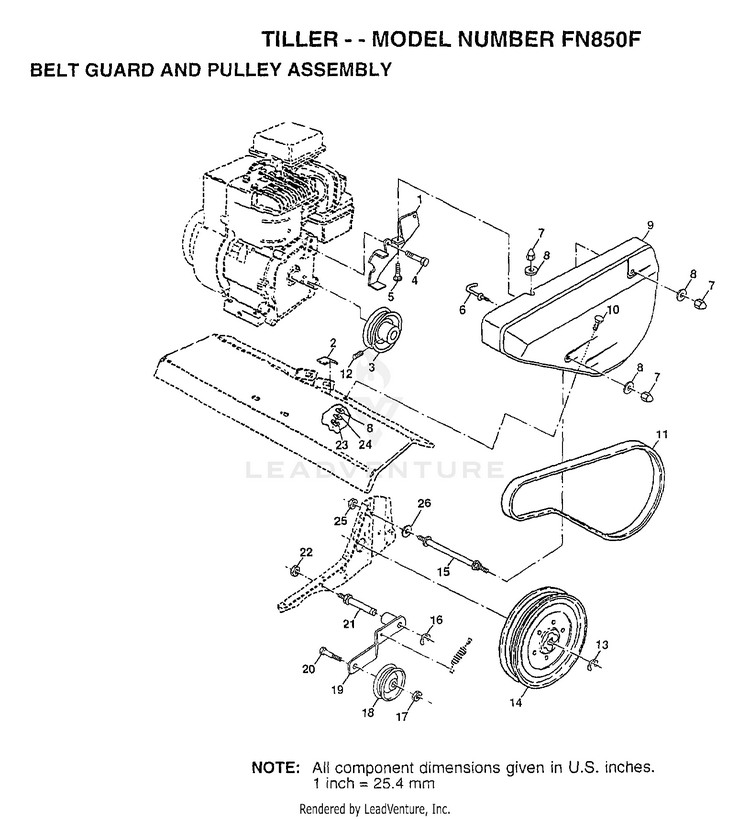

TILLER-BELT GUARD AND PULLEY

...
...
1
BRKT GUARD BELT HUS-159233
...
2
PAD IDLER TI HUS-109227X
...
3
ENGINE PULLEY HUS-130812
...
4
BOLT.HEX.HEAD HUS-74610812
...
5
BOLT HUS-72140404
...
6
KEEPER BELT HUS-121463X
...
7
NUT-CAP TI HUS-104213X
...
8
WASHER HUS-19091016
...
9
"GUARD, BELT" HUS-131158X505
...
10
BOLT T HUS-72140405
...
11
V BELT STD HUS-9180R
...
12
SET SCREW HUS-23230506
...
13
SUB= 2267J HUS-12000028
...
14
SHEAVE.TRANS HUS-151223
...
15
BOLT TI HUS-110528X
...
16
KLIP RING TI HUS-12000036
...
17
NUT HUS-73350600
...
18
"PULLEY,IDLER" HUS-161806
...
19
"ARM, IDLER" HUS-162290
...
20
Bolt Fin Flex 3/8-16unc X 1-1/4 HUS-74760620
...
21
SHAFT IDLER TI HUS-106968X
...
22
JAM NUT TI HUS-73350500
...
23
SUB= 50675 HUS-73220400
...
24
LOCKWASHER HUS-10040400
...
25
NUT HUS-73510400
...
26
WASHER HUS-19091416

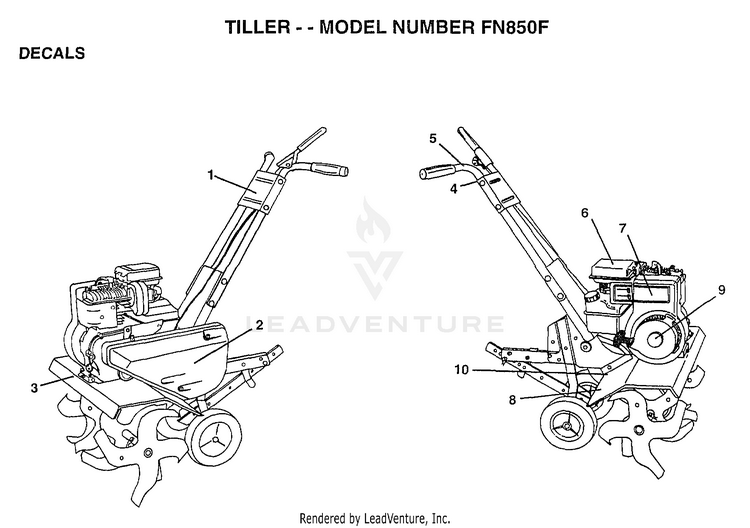

TILLER-DECALS

...
...
1
DECAL HANDLE BRKT HUS-132629
...
2
BELT.GUARD.DECAL HUS-132549
...
3
DECAL TINE SHIELD HUS-127185X
...
4
DECAL TI HUS-110613X
...
5
DECAL TI HUS-110614X
...
6
DECAL TI HUS-110612X
...
7
DECAL, BRIGGS & STRATTON HUS-271948
...
8
SUB= 120075X HUS-120076X
...
9
DECAL, 5HP HUS-273721
...
10
DECAL.CAUTION HUS-162384
...
xx
MANUAL.O.FN850F.E HUS-163753
...
xx
MANUAL.O.FN850F.F HUS-163754

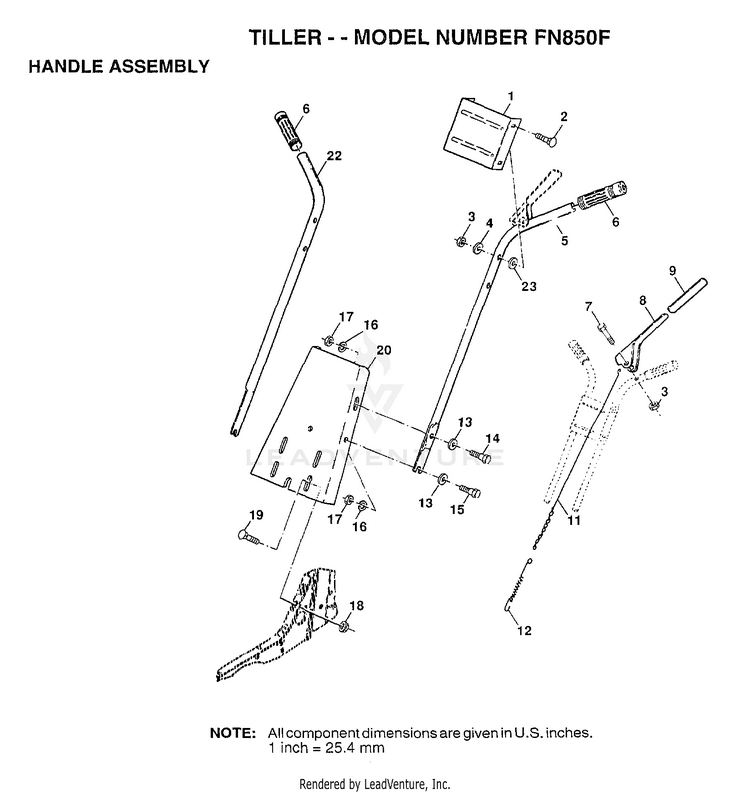

TILLER-HANDLE

...
...
1
HANDLE BRKT HUS-137176X505
...
2
BOLT HUS-72140512
...
3
SUB= 73690500 HUS-73680500
...
4
WASHER HUS-19111116
...
5
HANDLE LH HUS-151473
...
6
SUB= 624A78 HUS-9266R
...
7
BOLT.HEX.5/16-1.5 HUS-74760524
...
8
SUB= 164937 HUS-3069J
...
9
GRIP T HUS-8206H
...
11
SUB= 100382K HUS-3067J
...
12
SPRING EXT TI HUS-3070J
...
13
WASHER HUS-19121414
...
14
SUB= 77394 HUS-74760516
...
15
BOLT HUS-74760512
...
16
LOCKWASHER HUS-10040500
...
17
NUT.HEX.5/16-18 HUS-73220500
...
18
NUT HUS-98000129
...
19
BOLT HUS-72140506
...
20
PANEL. HANDLE HUS-9209R505
...
22
HANDLE RH HUS-151474
...
23
WASHER HUS-19131312

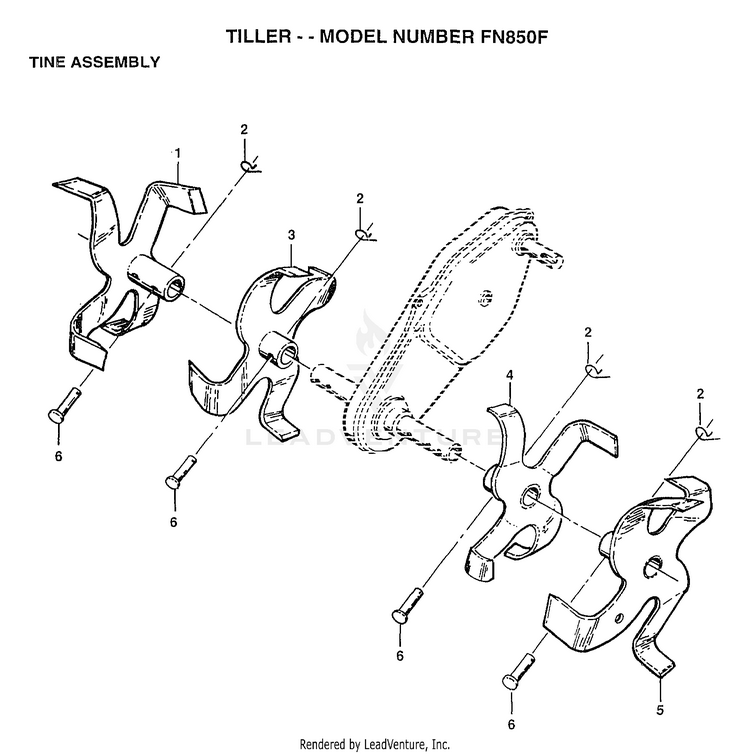

TILLER-TINE

...
...
1
"TINE ASM OUTER,RH" HUS-156926
...
2
RETAINER.SPRING HUS-3146R
...
3
"TINE ASM INNER,RH" HUS-156924
...
4
TINE ASM INNER LH HUS-156923
...
5
"TINE ASM OUTER,LH" HUS-156925
...
6
RIVET.PAN HD.1.75 HUS-4929H

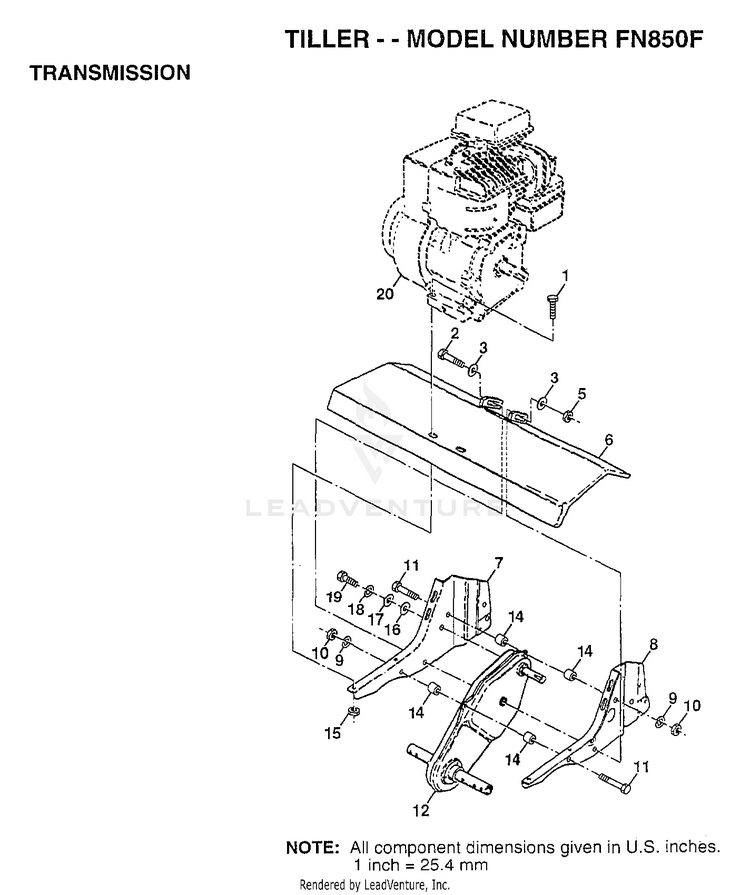

TILLER-TRANSMISSION

...
...
1
BOLT.HEX.5/16-1.5 HUS-74760524
...
2
BOLT HEX 3/8-16 HUS-74780652
...
3
WASHER HUS-19131311
...
5
NUT HUS-73800600
...
6
"SHIELD, TINE" HUS-9056R505
...
7
SUB= 1949J500 HUS-1949J
...
8
ENGINE BRKT LH TI HUS-1948J
...
9
LOCKWASHER HUS-10040500
...
10
NUT.HEX.5/16-18 HUS-73220500
...
11
SUB= 74780544 HUS-74760544
...
12
SUB= 165808 HUS-151222
...
14
SPLIT SPACER RT HUS-9173R
...
15
NUT HUS-73510500
...
16
WASHER HUS-19091412
...
17
WASHER HUS-19092016
...
18
LOCKWASHER HUS-10040400
...
19
BOLT HUS-74610412

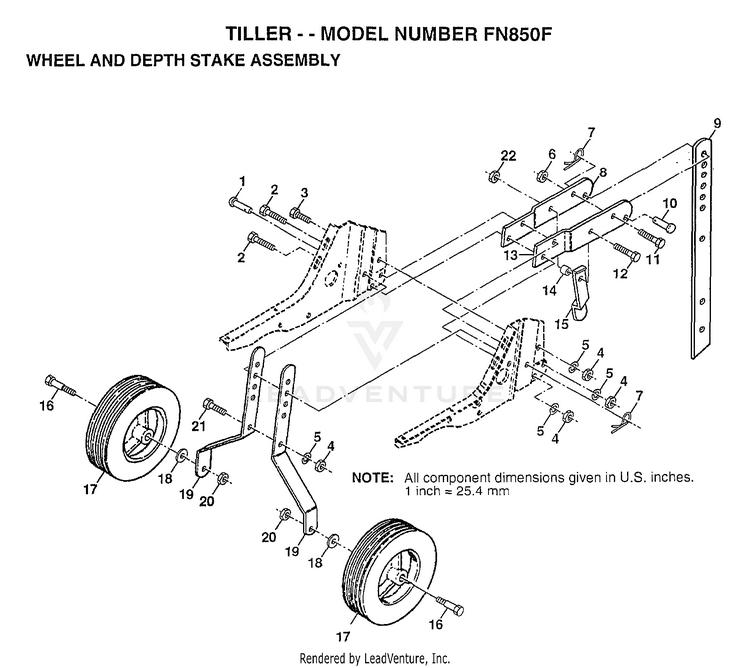

TILLER-WHEEL AND DEPTH STAKE

...
...
1
DRILLED RIVET RT HUS-9194R
...
2
BOLT HUS-74760520
...
3
BOLT HUS-74760512
...
4
NUT.HEX.5/16-18 HUS-73220500
...
5
LOCKWASHER HUS-10040500
...
6
NUT HUS-73800600
...
7
SPRING.RETAINER HUS-4921H
...
8
SUB= 1952J500 HUS-1952J
...
9
SUB= 2582J HUS-122233X
...
10
SUB= 4929H HUS-326J
...
11
BOLT HUS-74780628
...
12
BOLT.HEX.5/16-1.5 HUS-74760524
...
13
SUB= 1951J500 HUS-1951J
...
14
WASHER HUS-120958X
...
15
STAKE SPRING TI HUS-5388J
...
16
BOLT SHOULDER HUS-121117X
...
17
SUB= 107644X HUS-9188R
...
18
WASHER HUS-19131311
...
19
SUB= 9190R500 HUS-9190R
...
20
SUB= 73690600 HUS-73680600
...
21
SUB= 77394 HUS-74760516
...
22
NUT HUS-73800500
