Husqvarna FN850E (1997) Tiller

Model: FN850E (1997)

Back To Assemblies

Save Part Not Listed?
product name

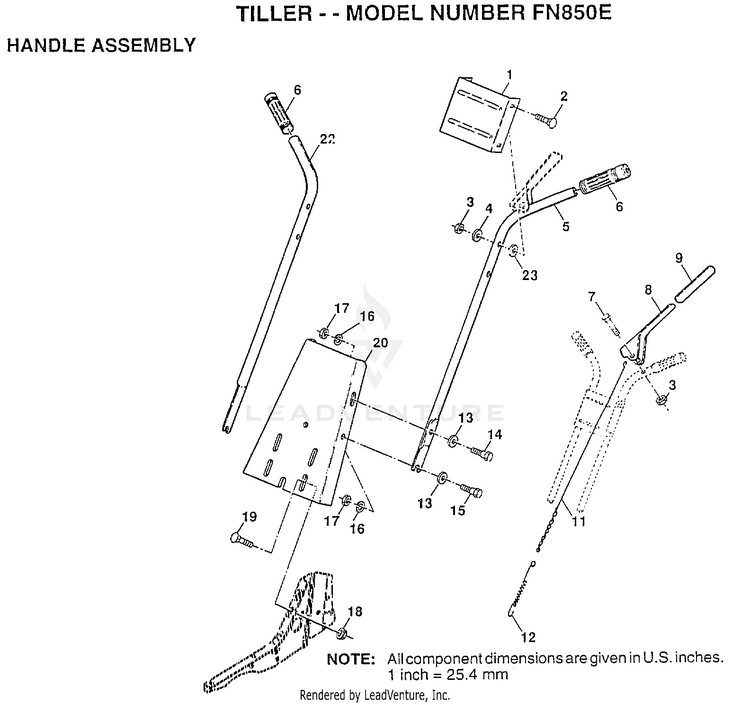

HANDLE

...
...
1
BRACKET, HANDLE HUS-137175X505
...
2
BOLT HUS-72140512
...
3
SUB= 73690500 HUS-73680500
...
4
WASHER HUS-19111116
...
5
HANDLE LH HUS-151473
...
6
SUB= 624A78 HUS-9266R
...
7
BOLT.HEX.5/16-1.5 HUS-74760524
...
8
SUB= 164937 HUS-3069J
...
9
GRIP T HUS-8206H
...
11
SUB= 100382K HUS-3067J
...
12
SPRING EXT TI HUS-3070J
...
13
WASHER HUS-19121414
...
14
SUB= 77394 HUS-74760516
...
15
BOLT HUS-74760512
...
16
LOCKWASHER HUS-10040500
...
17
NUT.HEX.5/16-18 HUS-73220500
...
18
NUT HUS-98000129
...
19
BOLT HUS-72140506
...
20
PANEL. HANDLE HUS-9209R505
...
22
HANDLE RH HUS-151474
...
23
WASHER HUS-19131312
