Husqvarna FN850A (1999 & Before) Tiller

Model: FN850A (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

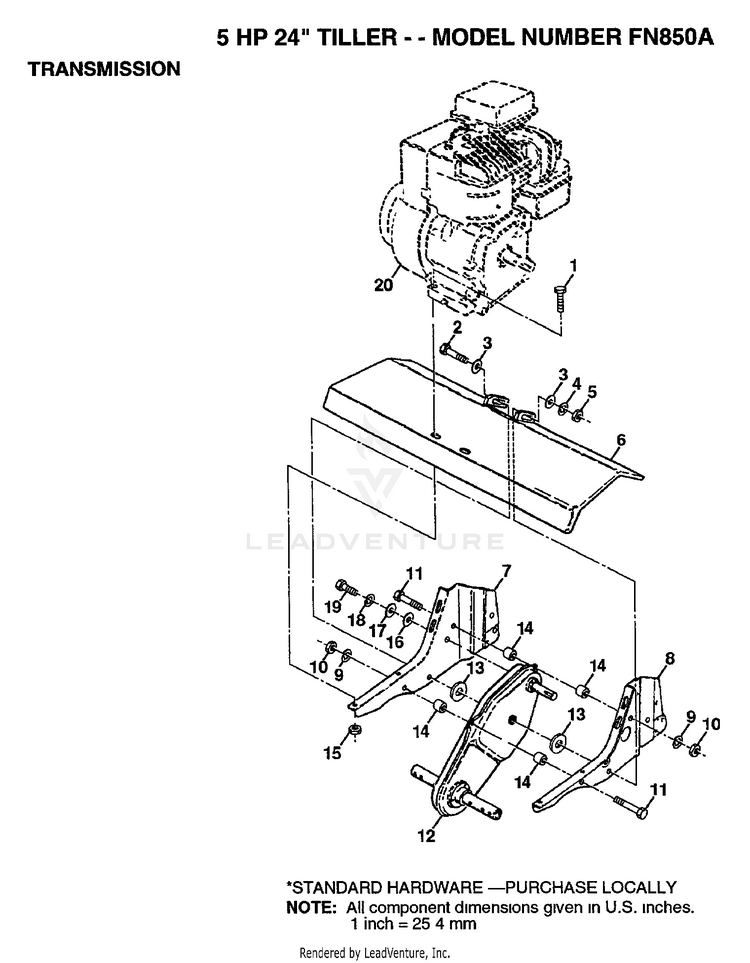

TRANSMISSION ASSEMBLY

...
...
1
BOLT.HEX.5/16-1.5 HUS-74760524
...
2
BOLT.3/8-24X3.75 HUS-74610652
...
3
WASHER HUS-19131311
...
4
Washer, Lock Hvy. Hlcl. Spr. 3/8 HUS-10040600
...
5
GRIPCO NUT HUS-7810H
...
6
"SHIELD, TINE" HUS-9056R505
...
7
SUB= 1949J500 HUS-1949J
...
8
BRACKET.ENG.LH. HUS-110519X
...
9
LOCKWASHER HUS-10040500
...
10
NUT.HEX.5/16-18 HUS-73220500
...
11
SUB= 74780544 HUS-74760544
...
12
SUB= 532126669 HUS-126669X
...
13
WASHER HUS-19171616
...
14
SPLIT SPACER RT HUS-9173R
...
15
NUT HUS-73510500
...
16
WASHER HUS-19091412
...
17
WASHER HUS-19092016
...
18
LOCKWASHER HUS-10040400
...
19
BOLT HUS-74610412
