Husqvarna FN620K (2003) Tiller

Model: FN620K (2003)

Back To Assemblies

Save Part Not Listed?
product name

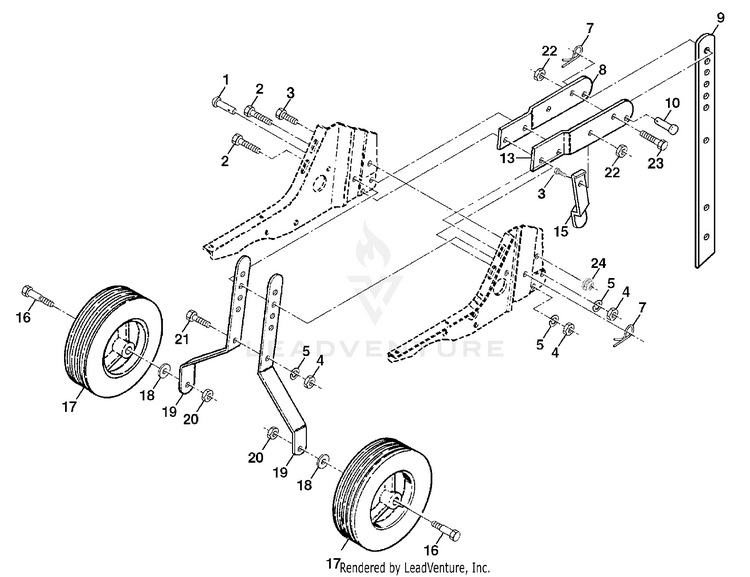

Wheel And Depth Stake Assembly

...
...
1
Pin, Clevis HUS-9194R
...
2
Bolt, Hex 5/16-18 x 1-1/4 HUS-74760520
...
3
Bolt, Hex 5/16-18 x 3/4 HUS-74760512
...
4
Nut, Hex 5/16-18 HUS-73220500
...
5
Washer, Lock 5/16 HUS-10040500
...
7
Clip, Hairpin HUS-4921H
...
8
Support, Depth Stake, R.H. HUS-318J
...
9
Stake, Depth HUS-9193R
...
10
Rivet, Drilled HUS-9551R
...
13
Support, Depth Stake, L.H. HUS-317J
...
15
Spring, Stake HUS-5388J
...
16
Bolt, Shoulder HUS-121117X
...
17
Wheel HUS-9186R
...
18
Washer 13/32 x 13/16 x 11 Ga. HUS-19131311
...
19
Bracket, Wheel HUS-9190R
...
20
Locknut, Crown 3/8-16 HUS-73680600
...
21
Bolt, Hex 5/16-18 x 1 HUS-74760516
...
22
Locknut, w/insert 5/16-18 HUS-73800500
...
23
Bolt Fin Hex 5/16-18 UNC x 1-1/2 HUS-74780524
