Husqvarna FN620G (1999) Tiller

Model: FN620G (1999)

Back To Assemblies

Save Part Not Listed?
product name

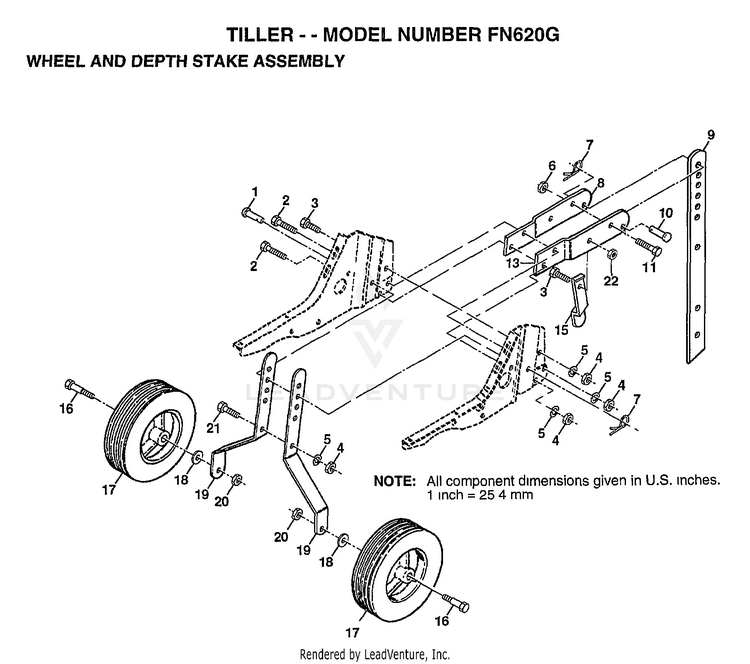

WHEEL AND DEPTH STAKE ASSEMBLY

...
...
1
DRILLED RIVET RT HUS-9194R
...
2
BOLT HUS-74760520
...
3
BOLT HUS-74760512
...
4
NUT.HEX.5/16-18 HUS-73220500
...
5
LOCKWASHER HUS-10040500
...
6
NUT HUS-73800600
...
7
SPRING.RETAINER HUS-4921H
...
8
STAKE.SUPT.TILLER HUS-318J
...
9
SUB= 9193R500 HUS-9193R
...
10
DRILLED RIVET RT HUS-9551R
...
11
BOLT.HEX.5/16-1.5 HUS-74760524
...
13
SUB= 317J500 HUS-317J
...
15
STAKE SPRING TI HUS-5388J
...
16
BOLT SHOULDER HUS-121117X
...
17
SUB= STD333760 HUS-9186R
...
18
WASHER HUS-19131311
...
19
SUB= 9190R500 HUS-9190R
...
20
SUB= 73690600 HUS-73680600
...
21
SUB= 77394 HUS-74760516
...
22
NUT HUS-73800500
