Husqvarna FN620F (1998) Tiller

Model: FN620F (1998)

Back To Assemblies

Save Part Not Listed?
product name

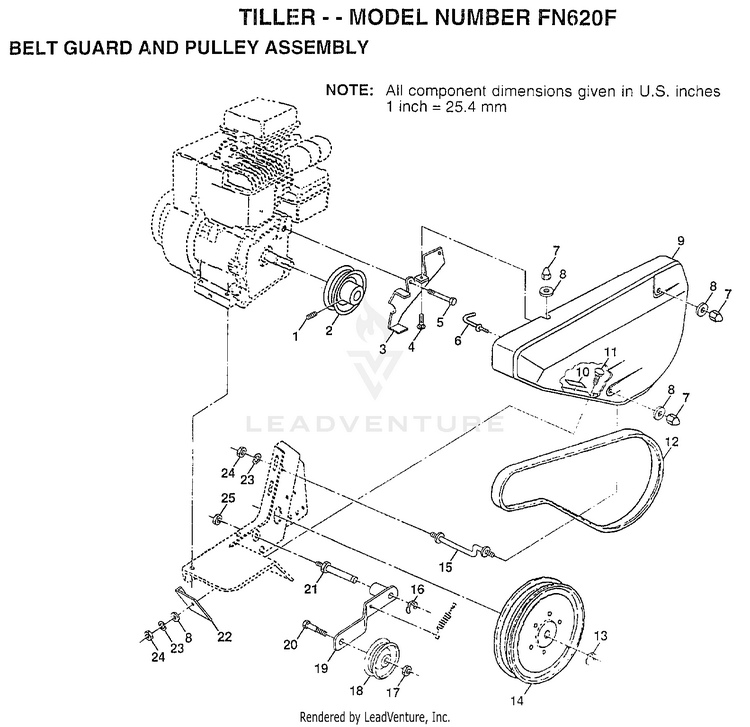

BELT GUARD AND PULLEY ASSEMBLY

...
...
1
SET SCREW HUS-23230506
...
2
SUB= 532130811 HUS-130811
...
3
BRKT ASSY HUS-122955X
...
4
BOLT HUS-72140404
...
5
BOLT.HEX.HEAD HUS-74610812
...
6
KEEPER BELT HUS-121463X
...
7
NUT-CAP TI HUS-104213X
...
8
WASHER HUS-19091016
...
9
BELT GUARD HUS-131157X505
...
10
PAD IDLER TI HUS-109227X
...
11
BOLT T HUS-72140406
...
12
SUB= TH3H390 HUS-9179R
...
13
SUB= 2267J HUS-12000028
...
14
PULLEY.TRANSMISSN HUS-151939
...
15
SUB= 532132213 HUS-132213
...
16
KLIP RING TI HUS-12000036
...
17
NUT HUS-73350600
...
18
"PULLEY,IDLER" HUS-161806
...
19
"ARM, IDLER" HUS-162290
...
20
Bolt Fin Flex 3/8-16unc X 1-1/4 HUS-74760620
...
21
SHAFT IDLER TI HUS-106968X
...
22
SHIELD-DIRT TI HUS-105358X
...
23
LOCKWASHER HUS-10040400
...
24
SUB= 50675 HUS-73220400
...
25
JAM NUT TI HUS-73350500
