Husqvarna FL1500LE Type 5 (2009-03) Blower

Model: FL1500LE Type 5 (2009-03)

Back To Assemblies

Save Part Not Listed?
product name

Cover - Type 4-5

...
...
1
Screw HUS-530016392
...
2
Handle-Starter HUS-530049488
...
3
Kit-Rope HUS-530069907
...
4
Kit-Starter Pulley (Incl. 1) HUS-530071792
...
5
KIT STARTER SPRING HUS-545008011
...
6
Washer HUS-530015149
...
7
Housing-Impeller (Upper) HUS-530058713
...
8
Screw HUS-530015814
...
9
Spacer-Flywheel HUS-530052434
...
10
Assy-Impeller HUS-530053237
...
11
Washer-Flat HUS-530016260
...
12
Lockwasher HUS-530092322
...
13
Nut HUS-530626605
...
14
Assy-Impeller Housing (Lower) HUS-530054181
...
15
Screw HUS-530015886
...
16
Assy-Fuel Cap HUS-530014347
...
17
Screw HUS-530016349
...
18
Kit-Fuel Line HUS-530069599
...
19
Grommet-Fuel Line HUS-530053314
...
20
Assy-Fuel Tank (Incl. cap,filter, fuel lines) HUS-545103903
...
21
Assy-Fuel Pick-up HUS-530095646
...
22
Tube-Blower HUS-530052337
...
22
Operator Manual Not Shown HUS-545186783
...
22
Decal - Spark Arrestor Warning Not Shown HUS-522928602

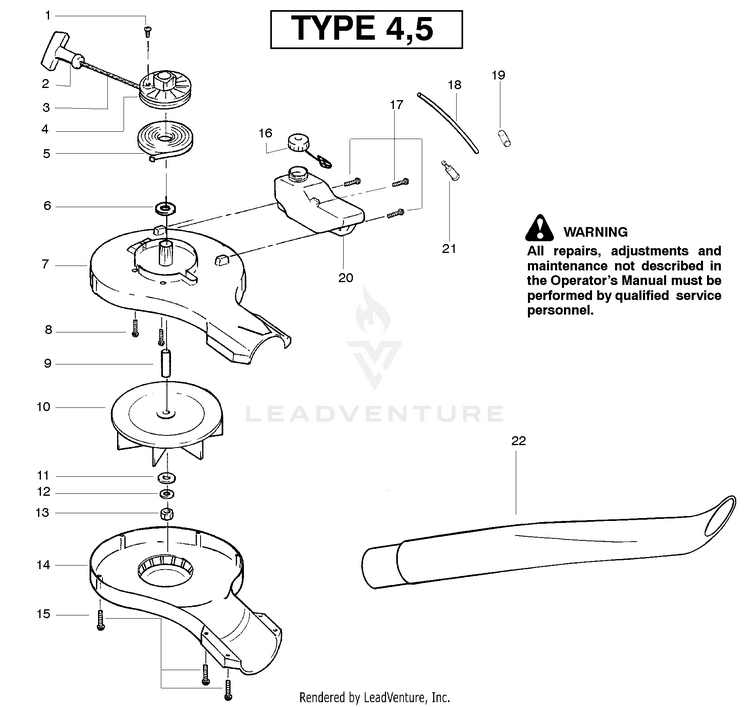

Schematic Image Zoomed
