Husqvarna FL1500LE Type 3 (2009-03) Blower

Model: FL1500LE Type 3 (2009-03)

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

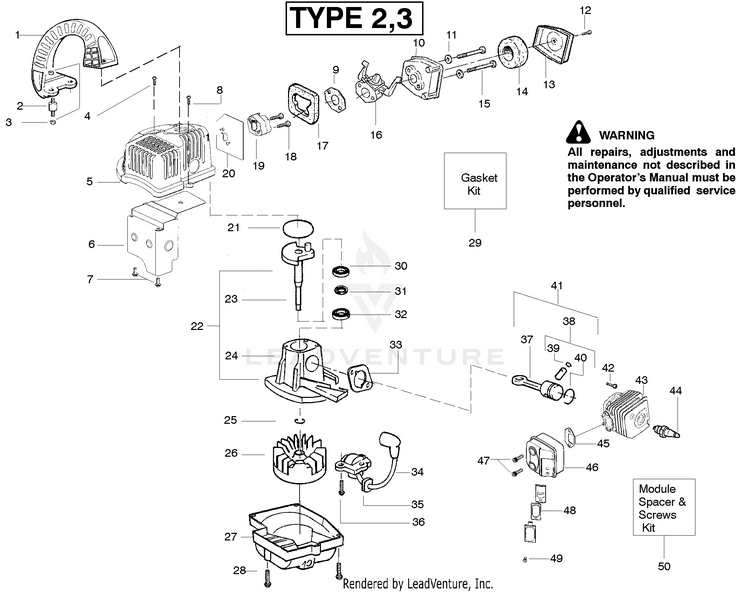

Engine - Type 2-3

...
...
1
Handle HUS-530054429
...
2
Isolator-Handle HUS-530054432
...
3
Nut HUS-530016316
...
4
Screw HUS-530016386
...
5
Shroud HUS-530055336
...
6
Shield-Heat HUS-530055378
...
7
Screw HUS-530015886
...
8
Screw HUS-530016349
...
9
Gasket-Carb. (Kit) HUS-530071472
...
10
Air Box HUS-530052333
...
11
Washer HUS-530015123
...
12
Screw HUS-530015892
...
13
Cover-Air Box HUS-530052332
...
14
Foam-Air Filter HUS-530047932
...
15
Screw HUS-530016394
...
16
Kit-Carburetor Ass'y. (C1U-W12A) HUS-530071629
...
17
Foam-Air Dam HUS-530057725
...
18
Screw HUS-530016309
...
19
Adaptor-Carb. HUS-530057634
...
20
Gasket-Cyl/Carb. Adaptor (Kit) HUS-530071472
...
21
Gasket-C'case/Shroud (Kit) HUS-530071472
...
22
Assy.-C'case & C'shaft (Incl. 23,24,25) HUS-530071680
...
23
KIT ASSY C'CASE/C'SHAFT HUS-530071625
...
24
Assy.-Crankcase (Incl. 30-32) HUS-530012510
...
25
Retainer Ring (C'shaft) HUS-530015941
...
26
Assy-Flywheel HUS-530054115
...
27
Fan Housing HUS-530055335
...
28
Screw HUS-530016386
...
29
Kit-Gasket (Incl. 9,20,21,33) HUS-530071472
...
30
BEARING BALL 6001 HUS-738210101
...
31
Seal-Crankcase HUS-530019264
...
32
Bearing-Outer HUS-530055728
...
33
Gasket-Cylinder (Kit) HUS-530071472
...
34
Ignition Module HUS-530039163
...
35
Grommet-Ign. Module HUS-530019182
...
36
Screw HUS-530016357
...
37
CONNECTING ROD ASSY HUS-530049817
...
38
Kit-Piston (Incl. 39 & 40) HUS-530071833
...
39
Wrist Pin Retainer HUS-530015162
...
40
RING PISTON HUS-545154001
...
41
Kit-Piston/Rod Assy. (Incl. 37,38) HUS-530071785
...
42
Screw HUS-530015953
...
43
Cylinder HUS-530012500
...
44
Spark Plug (RCJ-6Y) HUS-952030249
...
45
Gasket-Muffler kit) HUS-530071472
...
46
Kit-Muffler (Incl. #45,47-49) HUS-530071778
...
47
Bolt-Muffler HUS-530016338
...
48
Kit-Spark Aresstor HUS-530071544
...
49
Screw HUS-530015241
...
50
Kit-Module spacer/screws HUS-530071731
