Husqvarna FD61M (966582701) (2010-02) Ride Mower (Turf Care)

Model: FD61M (966582701) (2010-02)

Back To Assemblies

Save Part Not Listed?
product name

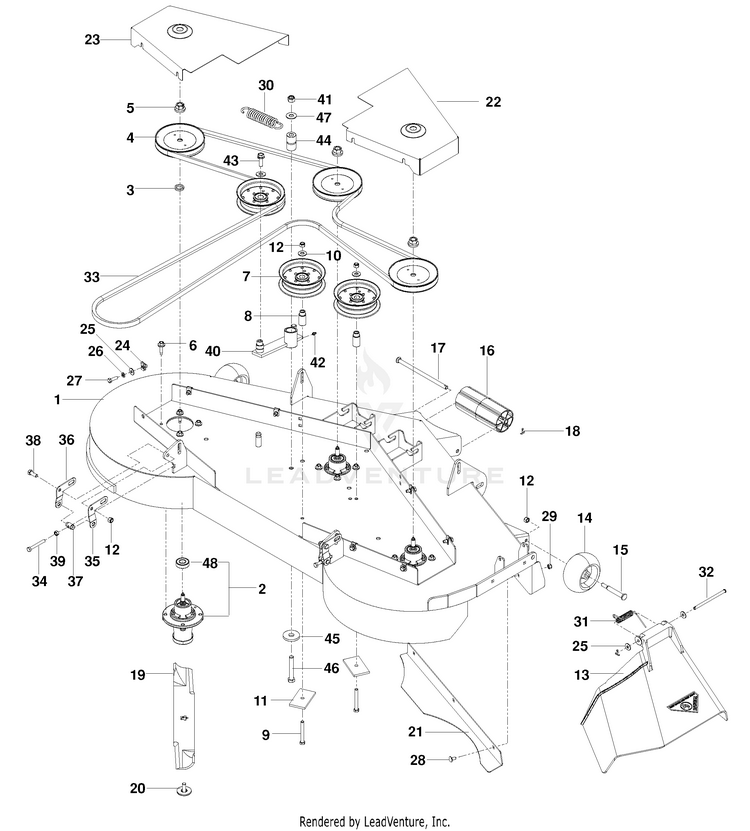

61 Inch Deck

...
...
1
DECK.SVC.W/DECALS.61".EZ.ORANG HUS-539132747
...
2
MANDREL.DECK.ASSEMBLY HUS-539112170
...
3
WASHER.SPACER.MANDREL HUS-532187690
...
4
PULLEY HUS-539113300
...
5
Nuts HUS-596134801
...
6
BOLT.HEX.WASHR.HED.313-18X1.19 HUS-584953901
...
7
Pulleys HUS-589766102
...
8
Bushings HUS-596841501
...
9
HCS 3/8C X 3 HUS-539101341
...
10
GSPW Washers HUS-596433701
...
11
Washers HUS-596770301
...
12
GSPW Nuts HUS-596240901
...
13
DISCHARGE CHUTE 61" HUS-539110734
...
14
WHEEL GAGE DONUT HUS-532133957
...
15
Bolts HUS-596434404
...
16
NOSE ROLLER 48" HUS-532176066
...
17
Rods HUS-594092501
...
18
Pins HUS-596029501
...
19
BLADE, 21" HUS-539113312
...
20
BOLT.WASHER.ASM.7/16-2 HUS-532193003
...
21
CONFINEMENT PLATE 61 HUS-539113317
...
22
BELT SHIELD, RH ORANGE HUS-539113319
...
23
BELT.SHIELD.LH.ORANGE HUS-584385601
...
24
U-CLIP 5/16-18 NUT RETAINER HUS-539104763
...
25
GSPH HUS-596134901
...
26
Washers HUS-596565001
...
27
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
28
BOLT ROUND HEAD SQUARE NECK BO HUS-596039401
...
29
Nuts HUS-596583702
...
30
SPRING HUS-539103256
...
31
Springs HUS-596646001
...
32
Pins HUS-595935501
...
33
BELT, DECK HUS-522795901
...
34
Screws HUS-596437101
...
35
PITCH, ADJUST, RT HUS-539131857
...
36
PITCH, ADJUST, LT HUS-539131858
...
37
Nuts HUS-596565501
...
38
Bolts HUS-596564401
...
39
Nuts HUS-596582601
...
40
IDLER ARM HUS-539112198
...
41
GSPW NUTS HUS-596135601
...
42
GSPW Zerks HUS-596899901
...
43
Screws HUS-596583101
...
44
PIVOT BUSHING HUS-539103427
...
45
Washers HUS-596770301
...
46
HCS 1/2C X 3 1/4 HUS-539103433
...
47
Washers HUS-595316401
...
48
BEARING, BALL HUS-539112050
