Husqvarna FD61M (966582701) (2010-02) Ride Mower (Turf Care)

Model: FD61M (966582701) (2010-02)

Back To Assemblies

Save Part Not Listed?
product name

Hydraulic Pump-Motor

...
...
1
HG_TRANS, ZT-3400, LT HUS-574569101
...
2
HG_TRANS, ZT-3400, RT HUS-574569102
...
3
Spacers HUS-574868502
...
4
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
5
Screws HUS-596436501
...
6
BRACKET TRANS, LT BLACK MS-431 HUS-593279002
...
7
BRACKET TRANS, RT BLACK MS-431 HUS-593278902
...
8
Links HUS-596500701
...
9
Links HUS-596501901
...
10
Hardware HUS-574233802
...
11
NUT HEXAGON FLANGE 5/16-18 ST HUS-594944401
...
12
Pins HUS-596580601
...
13
HOSE ASSY, EXPANSION HUS-574892101
...
14
TANK.EXPANSION.350ML 71328 HUS-574811301
...
15
Screws HUS-596565401
...
16
Washers HUS-596582301
...
17
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
18
WASHER 11/32 X 11/16 X 14 GA T HUS-596204101
...
19
HCS 5/16C X 2-3/4 HUS-539101721
...
20
Washers HUS-596238701
...
21
SHIELD FAN BLACK HUS-584994202
...
22
WASHER SPRING LOCK WASHER WITH HUS-596238801
...
23
Bolts HUS-596580801
...
24
GROMMET, BUMPER HUS-539102587
...
25
HG_FILTER, ZT4800 52114 HUS-539113466

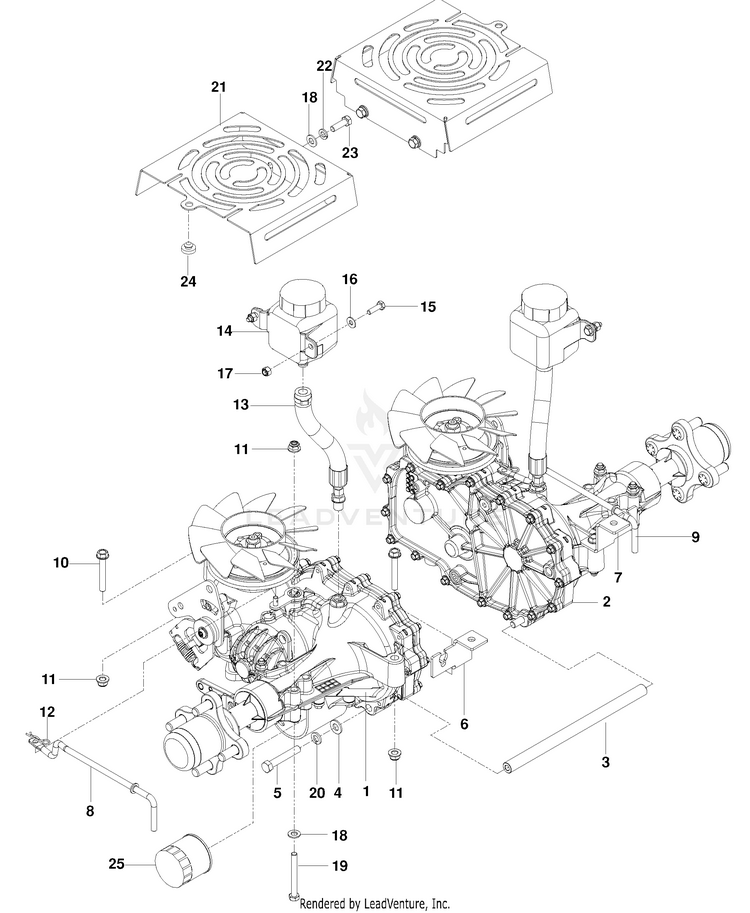

Schematic Image Zoomed
