Husqvarna FD61M (966582701) (2010-02) Ride Mower (Turf Care)

Model: FD61M (966582701) (2010-02)

Back To Assemblies

Save Part Not Listed?
product name

Steering

...
...
1
LEVER.DRIVE.W/GRIP.RIGHT HUS-539132009
...
2
LEVER.DRIVE.W/GRIP.LEFT HUS-539132010
...
3
ROD.END.MALE.LH.THREAD HUS-588692502
...
4
JOINT.HEIM.FEML.5/16.RH.THREAD HUS-579764601
...
5
DAMPENER HUS-539102720
...
6
BLOCK, UPPER HUS-539131517
...
7
BLOCK, LOWER HUS-539131519
...
8
PIVOT.SECTION.DRIVE.CONTROL HUS-522452901
...
9
MOUNT.HANDLE.CONTROL HUS-576452801
...
10
Knobs HUS-596400701
...
11
SPRING HUS-539101224
...
12
SPRING HUS-539102845
...
13
Bolts HUS-596582201
...
14
WASHER 11/32 X 11/16 X 14 GA T HUS-596204101
...
15
Nuts HUS-596583702
...
16
Bolts HUS-596241601
...
17
PLATE, NEUTRAL STOP, BLACK HUS-575230002
...
18
HCS 5/16-18X1-3/4 TPBLT HUS-539108394
...
19
Bolts HUS-525544002
...
20
SCREW HUS-874780528
...
21
BEARING, FLANGE HUS-539131518
...
22
WASHER, .825 X 1.087, WAVE HUS-539133007
...
23
NUT HEXAGON FLANGE 5/16-18 ST HUS-594944401
...
24
Hardware HUS-596040901
...
25
GSPW Hardware HUS-596039201
...
26
Bolts HUS-596580801
...
27
Nuts HUS-596584101
...
28
Rods HUS-574811402
...
29
Coupling HUS-596718601

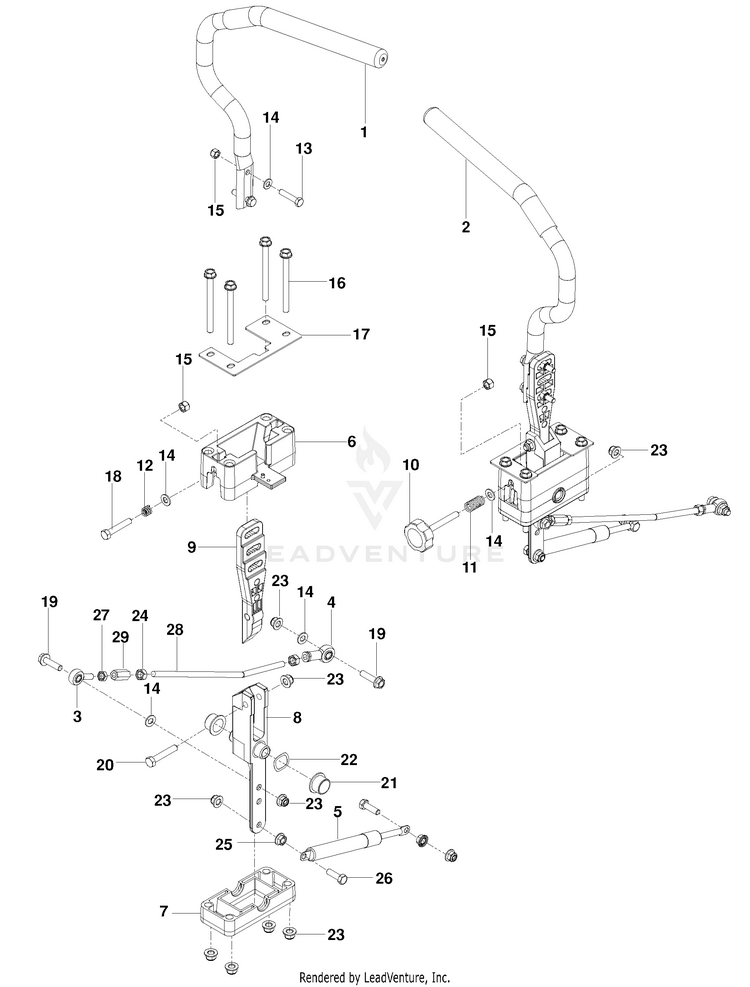

Schematic Image Zoomed
