Husqvarna FD61M (966582701) (2010-02) Ride Mower (Turf Care)

Model: FD61M (966582701) (2010-02)

Back To Assemblies

Save Part Not Listed?
product name

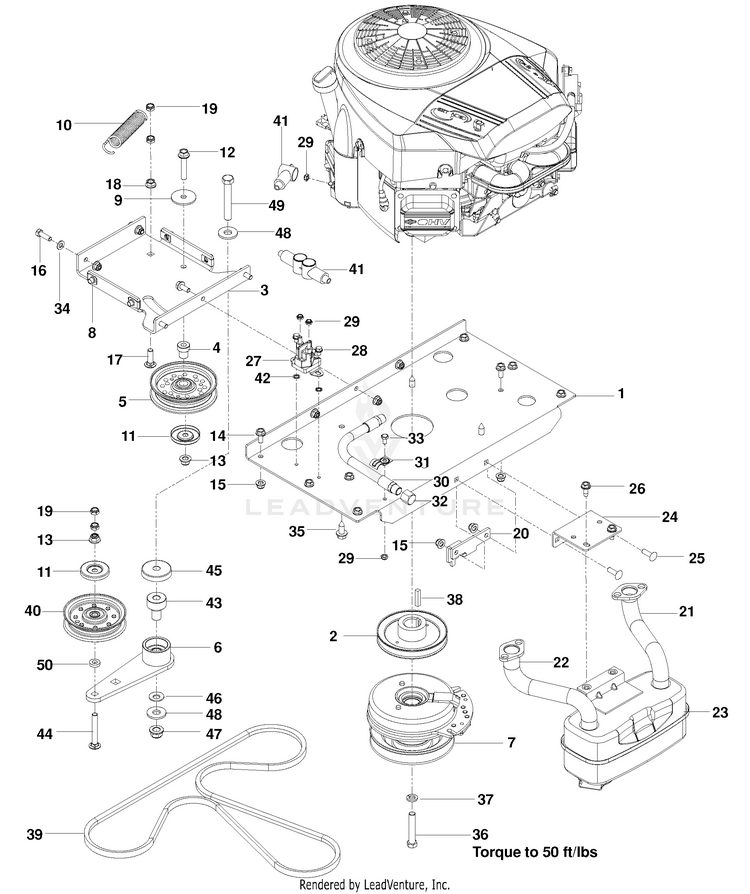

Engine Plate

...
...
1
PLATE, ENGINE W/DECALS HUS-575608801
...
2
PULLEY, V, 1.125 BORE HUS-574811001
...
3
PLATE, IDLER, BLK HUS-574846402
...
4
PIVOT, IDLER HUS-525435601
...
5
PULLEYS HUS-596739801
...
6
ARM, IDLER, STEEL, W/BGS HUS-510041603
...
7
CLUTCH 200 FT LB HUS-574607001
...
8
U-CLIP 5/16-18 NUT RETAINER HUS-539104763
...
9
Washers HUS-596917301
...
10
Springs HUS-510254402
...
11
SHIELD DUST HUS-510254502
...
12
HHFS 3/8-16 X 2.0 GD 5 HUS-525866201
...
13
GSPW Nuts HUS-521996502
...
14
HHFS 5/16-18 X 3/4 HUS-525464701
...
15
NUT HEXAGON FLANGE 5/16-18 ST HUS-594944401
...
16
Bolts HUS-596580801
...
17
RHSNB 3/8-16 X 1-1/4 HUS-539100413
...
18
Washers HUS-596583501
...
19
Nuts HUS-596230801
...
20
STOP CLUTCH STOP HUS-575017305
...
21
EXHAUST.TUBE.LH.BS/TWIN HUS-581881101
...
22
EXHAUST.TUBE.RH.B&S.TWIN.INTEK HUS-581881001
...
23
MUFFLER ASM TWIN HUS-539131604
...
24
BRKT, MUFFLER, BLK HUS-575229902
...
25
Bolts HUS-596435701
...
26
BOLT 5/16-18 X 3/4 HUS-539107475
...
27
SOLENOID HUS-539101714
...
28
Screws HUS-596582701
...
29
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
30
OIL DRAIN HOSE HUS-539101362
...
31
CLAMP HUS-539101363
...
32
DRAIN CAP HUS-539101364
...
33
Screws HUS-596437001
...
34
WASHER 11/32 X 11/16 X 14 GA T HUS-596204101
...
35
SCREW 3/8-16X1 HUS-817120616
...
36
BOLT 7/16F X 2 1/2 HUS-539991120
...
37
Washers HUS-596238901
...
38
KEY, 1/4 SQ X 1 1/4 HUS-539912757
...
39
BELT, HYDRO, 3400 HUS-574870901
...
40
Pulleys HUS-596481401
...
41
INSULATOR HUS-539102759
...
42
WASHER 1/4 INT TOOTH HUS-539990053
...
43
PIVOT, BEARING HUS-510206301
...
44
Bolts HUS-596581801
...
45
Shields HUS-596394601
...
46
Washers HUS-596581701
...
47
NUT 1/2-13 HEX FLANGE NYLOK CL HUS-521991102
...
48
Washers HUS-595316401
...
49
HCS 1/2C X 3 1/4 HUS-539103433
...
50
WASHER 3/8 X 3/4 X .187 TK HUS-539109562
...
xx
CABLE POSITIVE (NOT SHOWN) HUS-539102757
...
xx
KOHLER PIGTAIL-CV490S (NOT SHOWN) HUS-539107516
...
xx
PLATE, MUFFLER GUARD, BLACK (NOT SHOWN) (Optional) HUS-575262002
