product name

Husqvarna FD61M (966582701) (2010-02) Ride Mower (Turf Care)

Model: FD61M (966582701) (2010-02)

Back To Assemblies

Save Part Not Listed?
product name

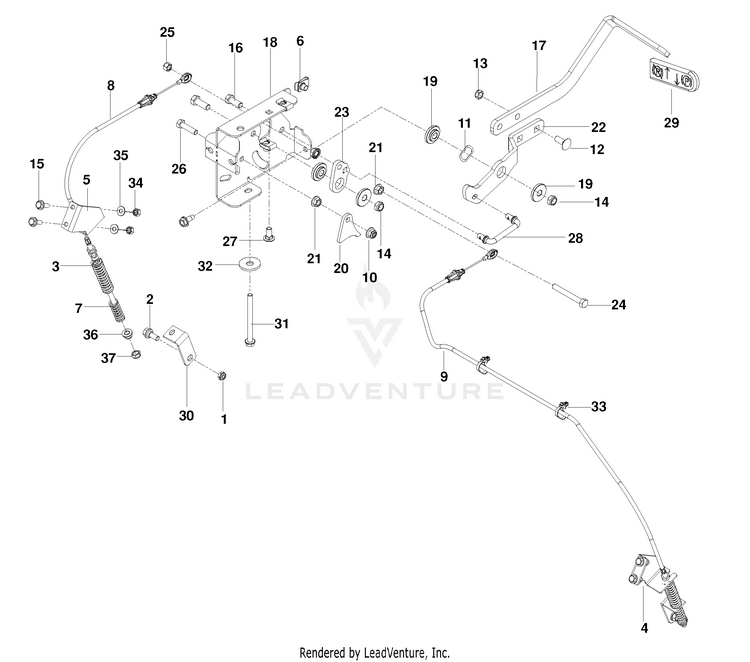

Parking Brake

...
...
1
Nuts HUS-596433601
...
2
Bolts HUS-596240701
...
3
SPRING, RETURN HUS-575230201
...
4
BRACKET BRAKE, RT BLACK MS-431 HUS-593279202
...
5
BRACKET BRAKE, LT BLACK MS-431 HUS-593279902
...
6
U-CLIP 5/16-18 NUT RETAINER HUS-539104763
...
7
SPRING, ENGAGEMENT HUS-575230301
...
8
CABLE, BRAKE, SHORT HUS-539132173
...
9
RP_CABLE, BRAKE, LONG HUS-539132174
...
10
NUT HEXAGON FLANGE 5/16-18 ST HUS-594944401
...
11
WASHER, .825 X 1.087, WAVE HUS-539133007
...
12
Bolts HUS-595316801
...
13
GSPW Nuts HUS-521996502
...
14
Nuts HUS-596230801
...
15
Screws HUS-596565401
...
16
Bolts HUS-596564401
...
17
ARM BRAKE BLACK MS-431 HUS-593564002
...
18
MOUNT, BRAKE WLDMT HUS-539132158
...
19
BUSHING, BRAKE HUS-539132161
...
20
KIT.SERVICE.ASM.BRAKE.MZ HUS-595846701
...
21
GSPW Hardware HUS-596039201
...
22
KIT.SERVICE.ASM.BRAKE.MZ HUS-595846701
...
23
KIT.SERVICE.ASM.BRAKE.MZ HUS-595846701
...
24
Screws HUS-596437101
...
25
Nuts HUS-596583702
...
26
Bolts HUS-596580801
...
27
GSPW Bolts HUS-595901601
...
28
Links HUS-596887001
...
29
GRIP, PARK BRAKE HUS-539105036
...
30
BRKT, BRAKE, BLK HUS-575229802
...
31
Bolts HUS-596241601
...
32
Washers HUS-595316401
...
33
TIE WRAP, 8-3/8", W/CLIP HUS-505280001
...
34
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
35
Washers HUS-596582301
...
36
GSPW Hardware HUS-596039201
...
37
Nuts HUS-596436301
Schematic Image Zoomed
