Husqvarna FD61M (966582701) (2010-02) Ride Mower (Turf Care)

Model: FD61M (966582701) (2010-02)

Back To Assemblies

Save Part Not Listed?
product name

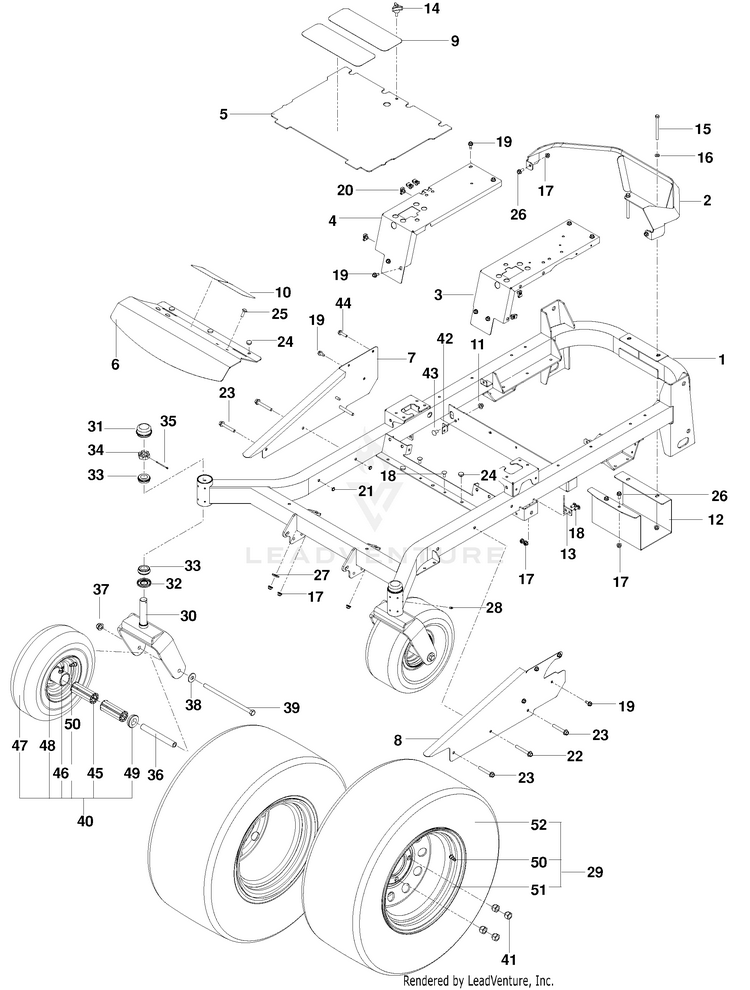

Frame

...
...
1
FRAME W/DECALS HUS-575608701
...
2
GUARD, REAR MZ, GRAY HUS-575348402
...
3
PANEL, FILLER, LT HUS-539131589
...
4
PANEL, FILLER RH ZT, ORG HUS-575223802
...
5
PLATE, FLOOR W/DECALS HUS-539132744
...
6
PLATE, FOOTREST HUS-539132380
...
7
SIDE.RT.ORANGE HUS-539131579
...
8
SIDE.LT.ORANGE HUS-539131577
...
9
ANTI-SKID PAD HUS-539977778
...
10
FOOT PAD HUS-539121322
...
11
GSPW Nuts HUS-521996502
...
12
SHIELD.MUFFLER.BLACK HUS-575230402
...
13
STOP, DECK, EZ+ HUS-505256401
...
14
GSPW Knobs HUS-597783101
...
15
Bolts HUS-596435501
...
16
WASHER 11/32 X 11/16 X 14 GA T HUS-596204101
...
17
NUT HEXAGON FLANGE 5/16-18 ST HUS-594944401
...
18
GSPW Bolts HUS-595901601
...
19
BOLT 5/16-18 X 3/4 HUS-539107475
...
20
U-CLIP 5/16-18 NUT RETAINER HUS-539104763
...
21
Nuts HUS-596230801
...
22
HHFS 3/8-16 X 2 3/4 HUS-539131781
...
23
Bolts HUS-596581901
...
24
GROMMET, BUMPER HUS-539102587
...
25
Bolts HUS-595901501
...
26
HHFS 5/16-18 X 3/4 HUS-525464701
...
27
Washers HUS-595086801
...
28
Zerks HUS-596623501
...
29
WHEEL ASM, 23 X 10.5 HUS-576356701
...
30
FORK.CASTER.ASM.PNT.668 HUS-586921902
...
31
Caps HUS-595281301
...
32
SEAL HUS-539102851
...
33
TAPERED ROLLER BRG HUS-539102543
...
34
Nuts HUS-596241501
...
35
COTTER PIN 1/8 X 2 HUS-539124704
...
36
SPACER, PIVOT HUS-575334901
...
37
NUT 1/2-13 HEX FLANGE NYLOK CL HUS-521991102
...
38
Washers HUS-595316401
...
39
GSPW Screws HUS-594946501
...
40
TIRE.ASSEM.CASTER.13X6.5-6.SIL HUS-581199501
...
41
Nuts HUS-587653903
...
42
BRACKET.DAMPENER.BLACK HUS-575245202
...
43
RHSNB 3/8-16 X 3/4 GR 5 BLK ZN HUS-539109117
...
44
Bolts HUS-525544002
...
45
ROLLER BEARING-CAGED 3 1/4' HUS-539105307
...
46
ZERK HUS-539103300
...
47
TIRE.13X6.50-6.4.PLY HUS-575622201
...
48
WHEEL.6X4.50.CASTER.SILVER HUS-575622101
...
49
BEARING RETAINER HUS-539102484
...
50
VALVE STEM TR-412 HUS-539912234
...
51
12"RIM 2.5" NEG OFFSET 8.5" W HUS-539105487
...
52
TIRE.TURF.MASTER.23X10.5-12 HUS-539107431
