product name

Husqvarna Edger Attachment (2006-04) Edger

Model: Edger Attachment (2006-04)

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

Carburetor Parts

...
...
503283111
KIT CARB Compl HUS-588171156
...
503478901
SPACER HUS-503478901
...
503479001
SCREW HUS-503479001
...
503479201
SCREW HUS-503479201
...
503479601
SCREW HUS-503479601
...
503479701
INLET NEEDLE Repair Kit P/N 531004553 HUS-503479701
...
503480001
PIN Repair Kit P/N 531004553 HUS-537020801
...
503480101
SCREW HUS-503480101
...
503480501
SCREW HUS-503480501
...
503480801
SPRING HUS-503994301
...
503481101
PLUG HUS-503481101
...
503481801
SCREW HUS-503481801
...
503481901
BUSHING HUS-503481901
...
503535701
STRAINER Repair Kit P/N 531004553 HUS-503535701
...
503665901
LEVER Repair Kit P/N 531004553 HUS-503665901
...
503755301
SCREW * HUS-503755301
...
503974301
COVER HUS-503974301
...
531004552
GASKET KIT (ZAMA GND39) HUS-531004552
...
531004553
CARBURETOR KIT (ZAMA RB69) HUS-531004553
...
537012501
BALL HUS-537012501
...
537012601
SPRING HUS-537012601
...
537019701
SPRING THROTTLE HUS-537019701
...
537019801
LEVER HUS-537019801
...
537019901
THROTTLE FLAP HUS-537019901
...
537020001
PUMP DIAPHRAGM Set of gaskets P/N 531004552; Repair Kit P/N 531004553 HUS-537020001
...
537020101
GASKET Set of gaskets P/N 531004552; Repair Kit P/N 531004553 HUS-537020101
...
537020201
COVER HUS-537020201
...
537020301
SPRING Repair Kit P/N 531004553 HUS-537273401
...
537020401
GASKET Set of gaskets P/N 531004552; Repair Kit P/N 531004553 HUS-537020401
...
537020601
NEEDLE HIGH SPEED HUS-537020601
...
537020701
SCREW HUS-537020701
...
537020801
PIN Repair Kit P/N 531004553 HUS-537020801
...
537020901
CHOKE SHAFT HUS-537020901
...
537021001
SPRING HUS-537021001
...
537021101
CHOKE CAP HUS-537370301
...
537021601
CAP HUS-537021601
...
537048901
DIAPHRAGM Set of gaskets P/N 531004552; Repair Kit P/N 531004553 HUS-537048901
...
537049001
LEVER HUS-537049001
...
537127801
LOW SPEED NEEDLE HUS-537127801
...
503974001
WASHER HUS-503974001
...
537019601
SHAFT HUS-537019601

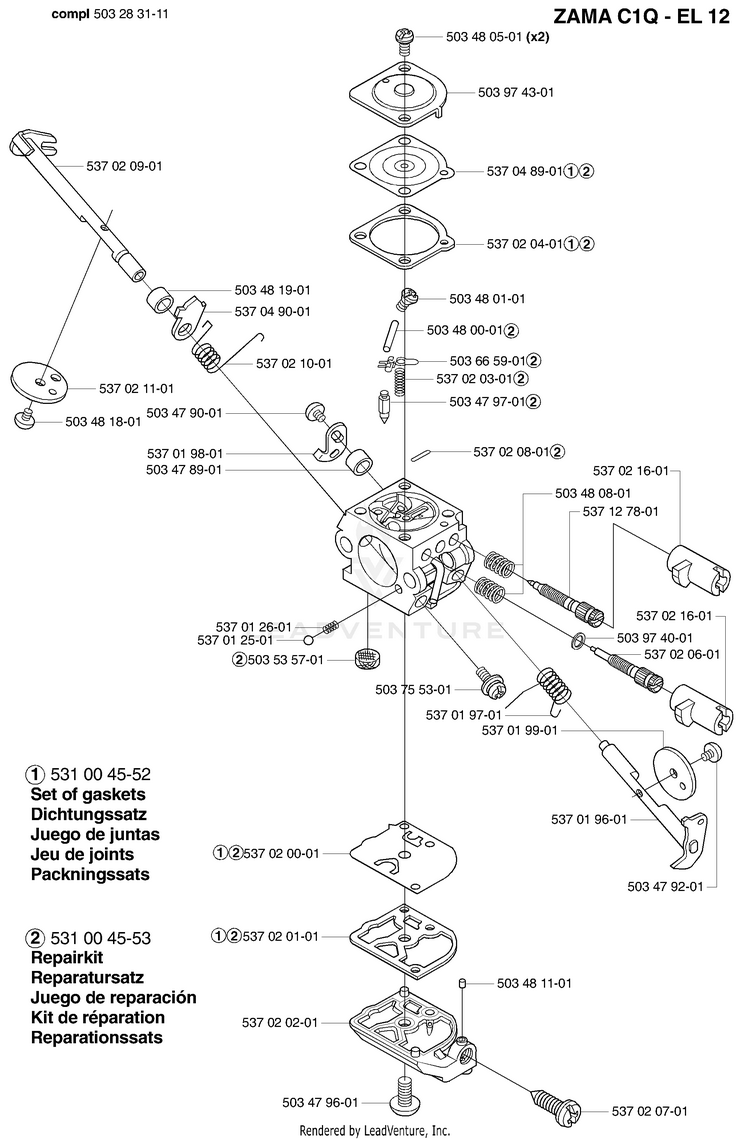

Schematic Image Zoomed
