Husqvarna EZ 5426 - 968999514 (2007-07) Zero Turn Mower

Model: EZ 5426 - 968999514 (2007-07)

Save Part Not Listed?
product name

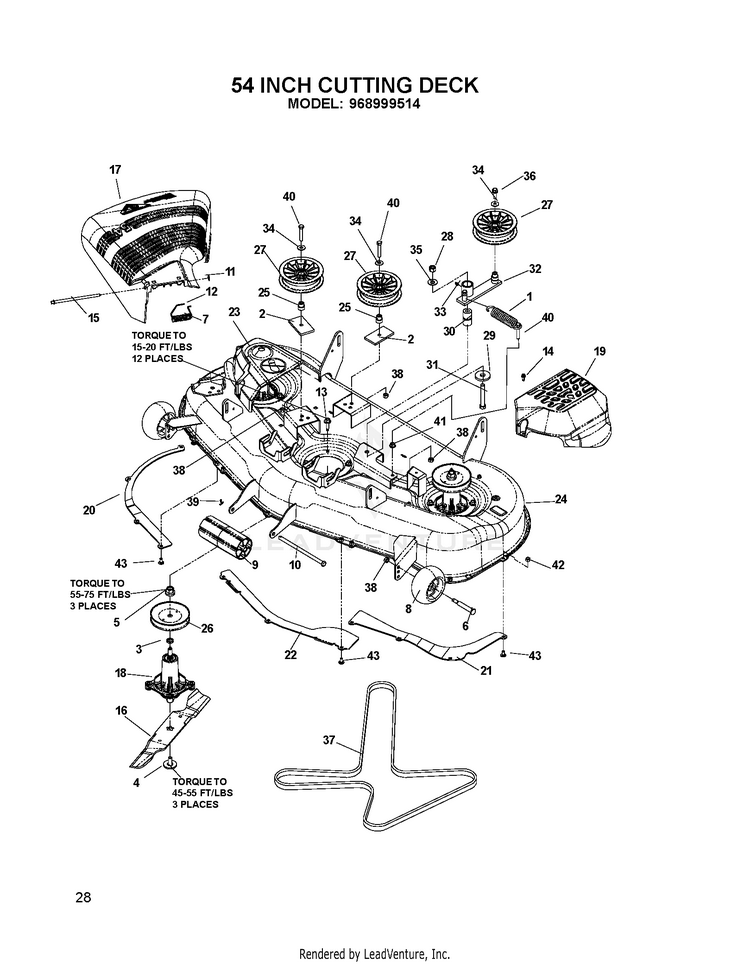

MOWER DECK / CUTTING DECK

...
...
177
BUSHING, STEERING HUS-532195227
...
194
GSPW Nuts HUS-596135701
...
165
SUPPORT.TANK.REAR.B/TE HUS-532194330
...
208
BEZEL.LH.TEX.GT.HUSQ LH HUS-532197199
...
228
STUD.W/"D"ANTI-ROTATION HUS-593824001
...
205
SKIRT.HOOD.SIDE.HUSQ.RH.GREY RH HUS-532401709
...
137
BUMPER DASH HUS-532407590
...
175
PLATE.PNT.CROSSMEMBER.HUSQ/PRE HUS-590607702
...
161
FUEL WINDOW HUS-532401801
...
178
CARGO.ASM.NET.TXGT.W/C HUS-532199782
...
210
INSERT.HEX.GRILL.HUSQ. LH HUS-532199131
...
162
Screws HUS-596134101
...
18
GRILL.ASM.HUSQ.TG/CRD.W/TRIM HUS-532408607
...
36
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
181
BUSHING.MNT.FEND.CRGO. HUS-532403025
...
298
NUT PUSH M HUS-532110452
...
203
VENT.SIDE.HOOD.HUSQ.LH.GRAY LH HUS-532403076
...
238
TRIM.HUSQ.TG/CRD.SERVICE HUS-532408606
...
212
INSERT.HEX.GRILL.HUSQ. LH HUS-532199133
...
217
ROD.PIVOT.HOOD HUS-532409167
...
189
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
150
AIR.DUCT.HOOD.TEX.GT.HUSQ HUS-532198512
...
14
HOOD.ASM.HUSQVARNA.GT.TEX.ORAN HUS-532442396
...
58
DRAWBAR.UPPER.2PC,LRG.FENDER HUS-532412281
...
37
FENDER.PNT.TX.GT.CH/FW/DL.HUSQ HUS-532441208
...
15
LENS.LH.TEX.GT.HUSQ.CL LH HUS-532198907
...
180
KITS.TEX.BOLTED.CHASSIS.445559 HUS-582033101
...
214
CLIP.RETAINER.TINNER. HUS-532199145
...
..
TRACTOR BRUSH GUARD LS MODELS HUS-505568813
...
152
SHIELD.BROWNING/DEBRIS HUS-532194329
...
209
INSERT.HEX.GRILL.HUSQ.GREY RH HUS-532199130
...
5
DASH.ASM.HUSQ.GT.E.RDGA.W/CK HUS-532408699
...
234
BUMPER.HOOD.TEX.HUSQVARNA HUS-532404742
...
202
VENT.SIDE.HOOD.HUSQ.RH.GREY RH HUS-532403048
...
221
REFLECTOR.LH.TEX GT HU LH HUS-532198909
...
182
DASH.LOWER.COMMON.12V.ADAPTOR HUS-532406859
...
204
VENT.ASM.TORPHD.HUSQGT.LOGO.CL HUS-532416615
...
2
DRAWBAR.LOWER.2PC.18/22 HUS-532412282
...
3
LOGO.HUSQ.GT.LT.CROWN.H HUS-532430771
...
130
Screws HUS-596321701
...
176
SCREW.#10-24X5/8.RN.QU HUS-532400776
...
68
Screws HUS-596030701
...
159
SCREW, 3/8-16X3/4 HUS-817000612
...
235
Spacers HUS-596564201
...
207
BEZEL.RH.TEX.GT.HUSQ RH HUS-532197198
...
236
NUT.CENTERLOCK.5/16- HUS-873930500
...
196
CONSOLE.ASM.DECKLIFT.HUSQGT.DL HUS-532439674
...
206
SKIRT.HOOD.SIDE.HUSQ.LH.GREY LH HUS-532401711
...
183
Screws HUS-595305701
...
211
INSERT.HEX.GRILL.HUSQ. RH HUS-532199132
...
199
PLATE.DECK.LIFT.HUSQVARNA.GT HUS-532198259
...
25
LENS.RH.TEX.GT.HUSQ.CL RH HUS-532198906

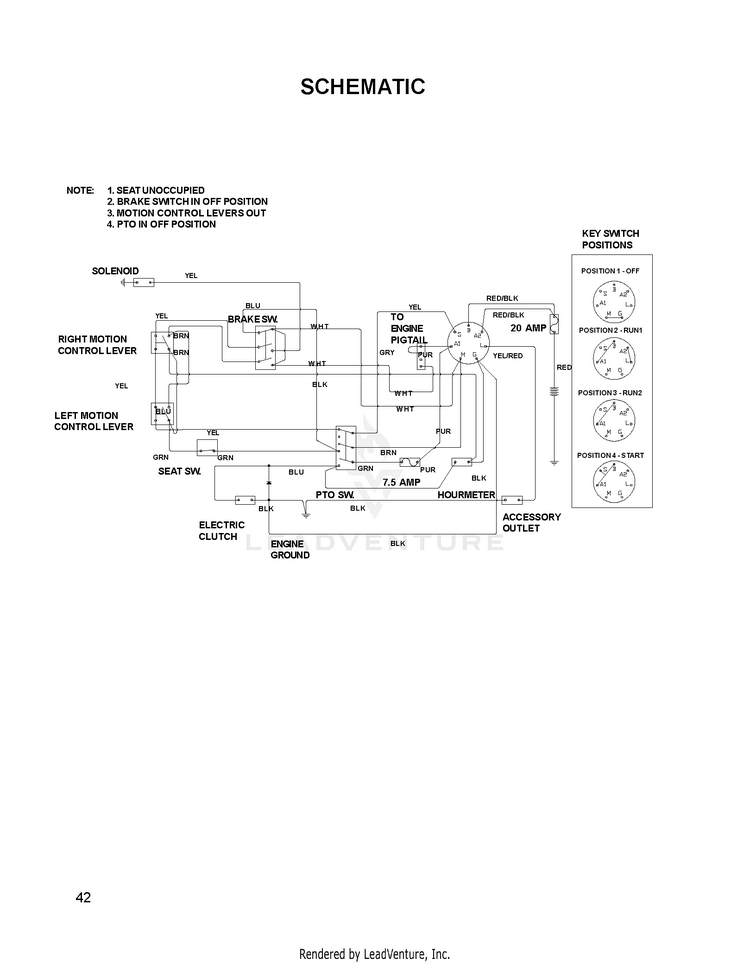

SCHEMATIC

...

No Parts Available for this Schematic

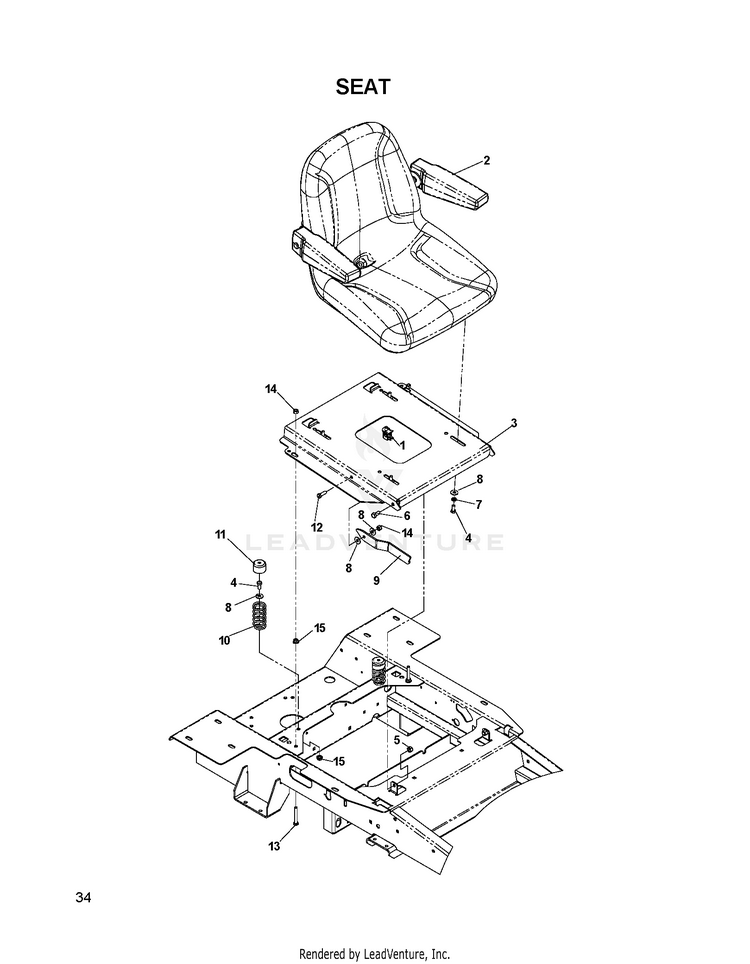

SEAT 2

...
...
43
BOLT HUS-874760612
...
40
Handles HUS-595088102
...
1
SEAT.TH151.GREY.PREM.HUSQ.MI HUS-532424071
...
10
KIT.PLATE.SEAT HUS-596768801
...
44
WASHER.13/32x2 3/8x12GA HUS-583789501
...
21
BOLT.5/16-18X5/8.SHOULDER HUS-587907801
...
6
Nuts HUS-596322601
...
41
SPRING.LATCH.SEAT.TEX HUS-532198200
...
3
STRAP HUS-532140675
...
8
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
37
Hardware HUS-596040501
...
7
SPRING.COMPRESSION.SEAT.BLACK HUS-587613301
...
2
BRKT.PIVOT.FENDER HUS-532180166

SEAT

...
...
41
Washers HUS-596583501
...
30
PIVOT BUSHING HUS-539103427
...
42
Nuts HUS-596583702
...
39
Pins HUS-596029501
...
24
DECK W/DECALS 54" HUS HUS-539112331
...
9
NOSE ROLLER 48" HUS-532176066
...
15
Rods HUS-595297001
...
27
Pulleys HUS-589766102
...
28
GSPW NUTS HUS-596135601
...
4
BOLT.WASHER.ASM.7/16-2 HUS-532193003
...
19
COVER, MANDREL, LEFT, 54" HUS-539112058
...
12
CAP-SLEEVE LT HUS-532105304
...
35
Washers HUS-595316401
...
3
WASHER.SPACER.MANDREL HUS-532187690
...
6
Bolts HUS-596434404
...
5
Nuts HUS-596134801
...
34
GSPW Washers HUS-596433701
...
23
COVER, MANDREL, RIGHT, 54" HUS-539112063
...
7
TORSION SPRING HUS-539107609
...
13
BOLT.HEX.WASHR.HED.313-18X1.19 HUS-584953901
...
1
SPRING HUS-539103256
...
20
SERVICE KIT BAFFLE.RIGHT.54" HUS-531168601
...
29
Washers HUS-596437501
...
26
PULLEY MANDREL HUS-532173436
...
16
54" HIGH LIFT BLADE HUS-594892901
...
32
IDLER ARM HUS-539112198
...
33
GSPW Zerks HUS-596899901
...
37
BELT HUS-539112333
...
40
HCS 3/8C X 2 HUS-539990588
...
38
GSPW Nuts HUS-596240901
...
18
KIT.MANDREL.GREASEABLE.TALL HUS-587820301
...
25
Bushings HUS-596790301
...
11
NUT PUSH M HUS-532110452
...
31
HCS 1/2C X 3 1/4 HUS-539103433
...
43
BOLT ROUND HEAD SQUARE NECK BO HUS-596039401
...
10
Rods HUS-594092501
...
17
DEFLECTOR.BLACK.54" HUS-532187257
...
8
WHEEL GAGE DONUT HUS-532133957
...
2
Washers HUS-596770301
...
14
SCREW.1/4-20X5/8 HUS-532137729
...
22
SERVICE KIT BAFFLE BAFFLE CENT HUS-531168801
...
36
Screws HUS-596583101
...
21
SERVICE KIT BAFFLE.LEFT.54" BA HUS-531168701
