Husqvarna DTF 22 (966068401) (2009-09) Power Rake / Seeder

Model: DTF 22 (966068401) (2009-09)

Save Part Not Listed?
product name

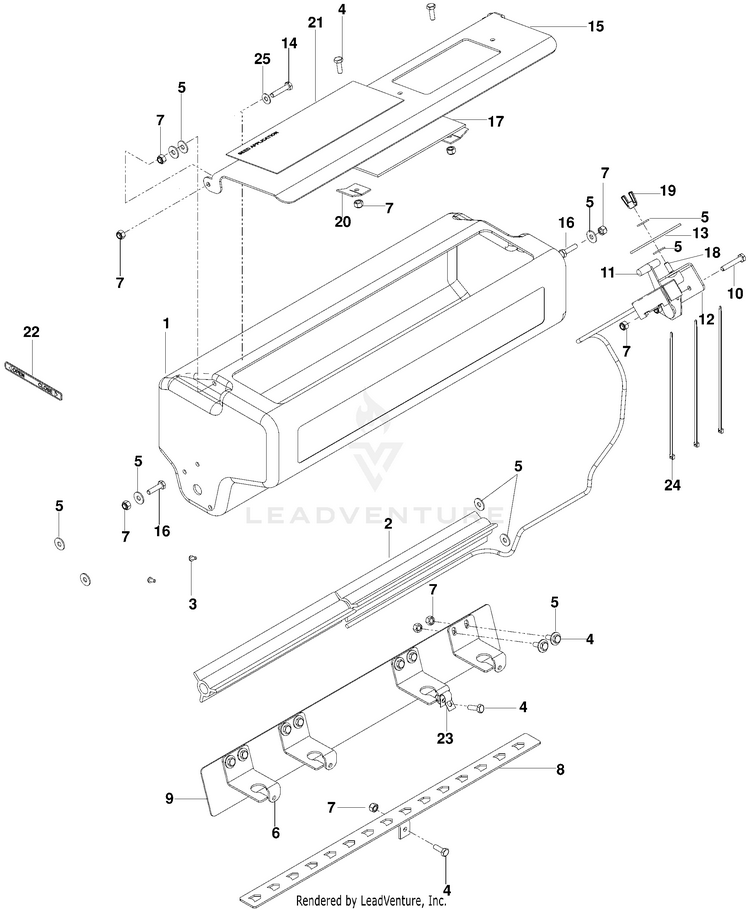

Accessories and Seeder

...
...
1
SEED BOX CHARCOAL GREY HUS-539109374
...
2
AGITATOR HUS-539106661
...
3
SCREW - #8-32 X 3/8 HUS-539108495
...
4
Screws HUS-596230901
...
5
Washers HUS-597338501
...
6
GUIDE HUS-539106677
...
7
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
8
GATE HUS-539106678
...
9
SHIELD HUS-539109375
...
10
SCW 1/4-20 X 1-1/2 HEX HUS-539990639
...
11
CONTROL, PUSH/PULL ASSEMBLY HUS-539052551
...
12
MOUNT HUS-539106680
...
13
SEED DIAL HUS-539107357
...
14
BOLT HEX 1/4 X 1-1/4 HUS-539100266
...
15
SEED DOOR ORANGE HUS-539106684
...
16
HCS 1/4 X 1 HUS-539990548
...
17
SEED WINDOW HUS-539106806
...
18
BOLT CUP HEAD SQUARE NECK BOLT HUS-596238401
...
19
WING NUT 1/4 HUS-539990997
...
20
WINDOW CLIP HUS-539107246
...
21
DECAL, SEED APPL HUS-540200140
...
22
DECAL, OPEN/CLOSE HUS-540200143
...
23
BRACKET, PUSH/PULL HUS-539052931
...
24
TIE, PLASTIC HUS-539976856
...
25
Washers HUS-596582301
...
xx
BAGGER KIT,PWR RAKE HUSQVARNA HUS-539130837

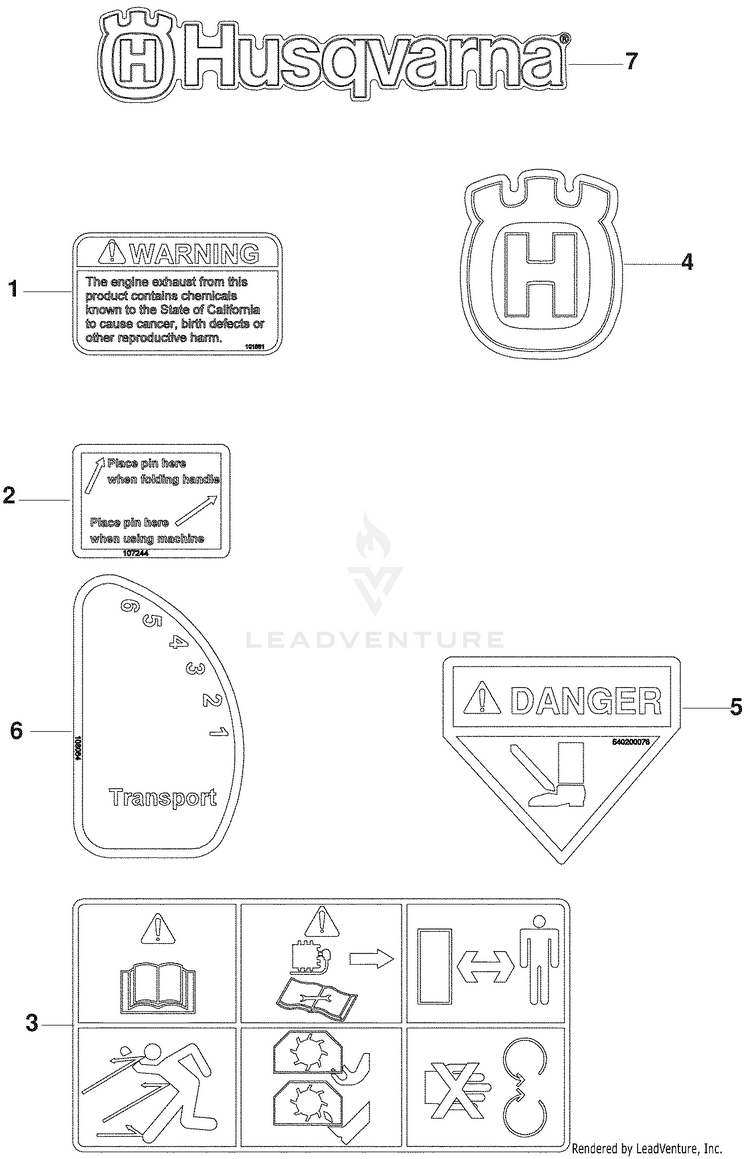

Decals

...
...
1
DECALS.WARN.CA.SPKARREST/PROP HUS-596024201
...
2
DECAL, HANDLE PIN HUS-539107244
...
3
DECAL, SAFETY GRAPHICS HUS-539107359
...
4
DECAL, CROWN H 70MM HUS-532422011
...
5
DECAL, FOOT DANGER HUS-540200076
...
6
DEPTH DECAL HUS-539108064
...
7
DECAL HOOD HUS-585160601

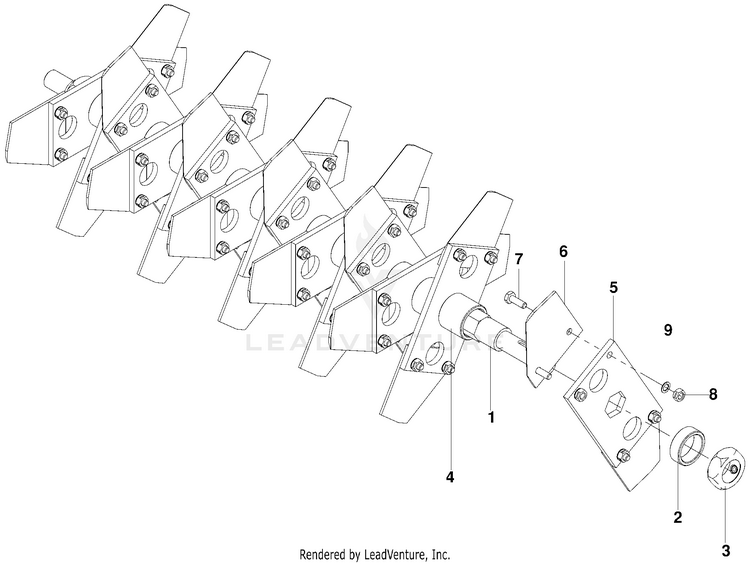

Delta Blade

...
...
xx
22" DELTA REEL (COMPLETE) HUS-539107184
...
1
SHAFT HUS-539106650
...
2
END SPACER HUS-539106653
...
3
JAM NUT W/SET SCREW HUS-539100530
...
4
SPACER - LONG HUS-539106652
...
5
BLADE MOUNTING PLATE HUS-539106651
...
6
DELTA BLADE HUS-540005966
...
7
HEX SCREW 1/4X.75 HUS-539108056
...
8
NUT 1/4C CENTER LOCK HUS-539990761
...
9
TH CABLE AR# 441L-632-10 HUS-539000407

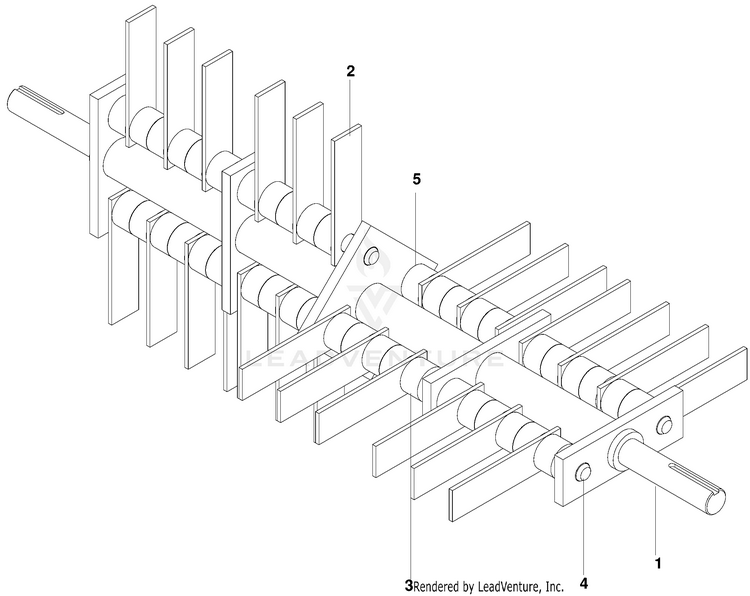

Flail Blade

...
...
xx
22" FLAIL REEL (COMPLETE) HUS-539107183
...
1
SHAFT BLK HUS-539106641
...
2
BLADE HUS-539005187
...
3
SPACER HUS-539100526
...
4
BLADE SHAFT HUS-539106642
...
5
Washers HUS-596671501

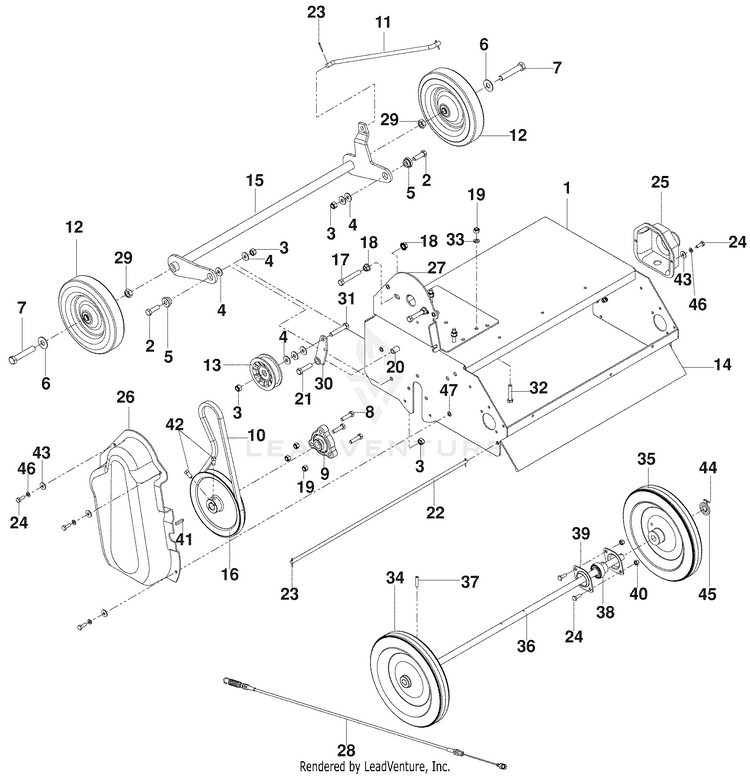

Frame

...
...
1
BODY W/DECALS DT22 ORANGE HUS-574640401
...
2
HCS 3/8C X 1 1/4 GR5 HUS-539976941
...
3
GSPW Nuts HUS-596240901
...
4
GSPH HUS-596134901
...
5
BUSHING RAKE HUS-539106847
...
6
Washers HUS-595316401
...
7
HCS 1/2C X 2 3/4 HUS-539101332
...
8
HCS 5/16C X 1 1/4 HUS-539990627
...
9
BEARING, FLANGED HUS-539100488
...
10
BELT, DRIVE RAKE/SLICER DFS HUS-539100439
...
11
LINKAGE HUS-539106805
...
12
WHEEL 8 X 1 3/4 RAKE HUS-540075051
...
13

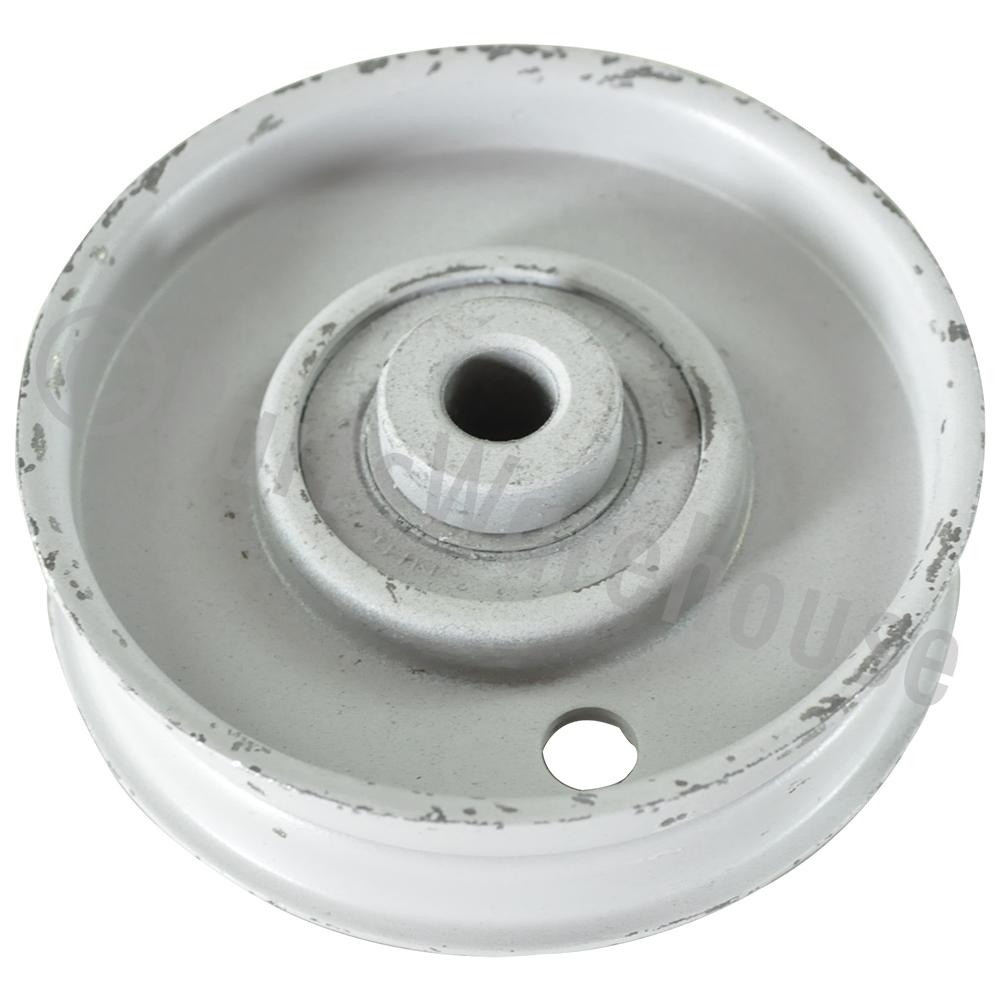

PULLEY IDLER, BACKSIDE 3 INCH HUS-531350601
...
14
REAR FLAP HUS-539106643
...
15
FRONT AXLE HUS-539106759
...
16
PULLEY, MAIN SHAFT HUS-539100511
...
17
Bolts HUS-596434201
...
18
Washers HUS-596583501
...
19
Nuts HUS-596583702
...
20
BEARING, ONLITE RAKE/DT HUS-539100482
...
21
HCS 3/8C X 1 1/2 HUS-539990655
...
22
FLAP ROD HUS-539106672
...
23
COTTER PIN 3/32 X 3/4 HUS-539990037
...
24
Screws HUS-596230901
...
25
SHAFT GUARD HUS-539106754
...
26
BELT SHIELD POWER RAKE HUS-539108070
...
27
BACKING PLATE ORANGE HUS-539106772
...
28
CABLE POWER RAKE HUS-539106849
...
29
Nuts HUS-596433401
...
30
IDLER, ARM, BLACK HUS-522795001
...
31
HCS 3/8C X 2 HUS-539990588
...
32
SCREW HUS-874780528
...
33
WASHER SPRING LOCK WASHER WITH HUS-596238801
...
34
WHEEL 10 X 1 3/4 HUS-540000058
...
35
WHEEL 10 X 1 3/4 HUS-540053401
...
36
AXLE, REAR HUS-539106663
...
37
PIN ROLL 1/4 X 1-1/8 HUS-539109273
...
38
DNB BRACKET C/S LIFT 3/16 HUS-539000319
...
39
DNB BRKT UPPER LATCH NONPLATED HUS-539000321
...
40
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
41
KEY, 3/16 SQUARE HUS-539910061
...
42
SCREW 5/16C X 5/8 SQ HEAD HUS-539102717
...
43
Washers HUS-597338501
...
44
COTTER PIN HUS-539990297
...
45
WASHER 5/8 FLAT HUS-539976982
...
46
Washers HUS-596564801
...
47
KNURLED INSERT HUS-539108147

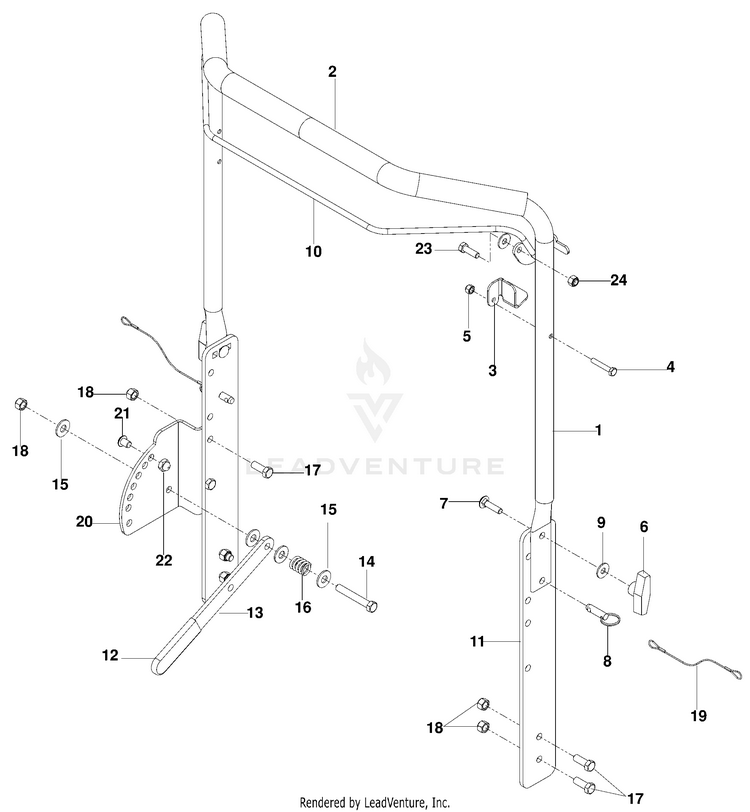

Handle

...
...
1
HANDLE GRAY HUS-539106758
...
2
FOAM GRIP HUS-539052561
...
3
CABLE TAB POWER RAKE HUS-539106688
...
4
SCW 1/4-20 X 1-1/2 HEX HUS-539990639
...
5
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
6
KNOB HUS-539100481
...
7
Bolts HUS-596671401
...
8
DETENT PIN RAKE/DT HUS-539100556
...
9
GSPH HUS-596134901
...
10
BAIL - ORANGE HUS-539106760
...
11
HANDLE SIDE GRAY HUS-539106755
...
12
GRIP HUS-539976526
...
13
LEVER, PLATED HUS-539106770
...
14
Bolts HUS-596434201
...
15
GSPW Washers HUS-596433701
...
16
COMPRESSION SPRING HUS-539976438
...
17
Bolts HUS-596564401
...
18
GSPW Nuts HUS-596240901
...
19
LANYARD HUS-539102563
...
20
HEIGHT ADJUSTMENT PLATE HUS-539106768
...
21
BLT 3/8-16 X 1/2 BTN HD BLK SP HUS-539108068
...
22
NUT 3/8-16 ACORN HEX HUS-539108746
...
23
Bolts HUS-596580801
...
24
Nuts HUS-596583702
