Husqvarna DT 20 Dethatcher

Model: DT 20

Save Part Not Listed?
product name

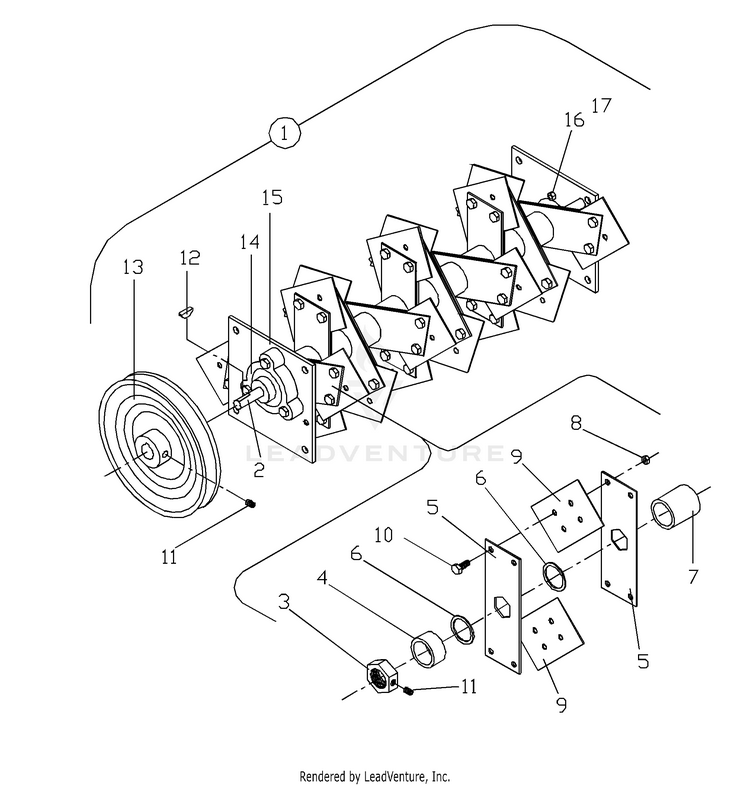

"Quick-Change" Slicer Shaft Conversion Accessory

...
...
1
KIT-SLICER SHAFT QUICK CHANGE HUS-539100416
...
2
SLICER SHAFT, BARE HUS-539100529
...
3
JAM NUT W/SET SCREW HUS-539100530
...
4
SPACER, SLEEVE SHORT HUS-539100531
...
5
BLADE HOLDER PLATE HUS-539100532
...
6
WASHER, BLADE HUS-539100533
...
7
SPACER, SLEEVE (LONG) HUS-539100534
...
8
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
9
SLICER BLADE HUS-539100536
...
10
Bolts HUS-596582501
...
11
SET SCREW 5/16 NYLOC HUS-539976956
...
12
KEY, #9 WOODRUFF HUS-539910211
...
13
PULLEY, MAIN SHAFT HUS-539100511
...
14
BEARING, FLANGED HUS-539100488
...
15
END PLATE HUS-539100487
...
16
HCS 5/16C X 1 1/4 HUS-539990627
...
17
Nuts HUS-596583702

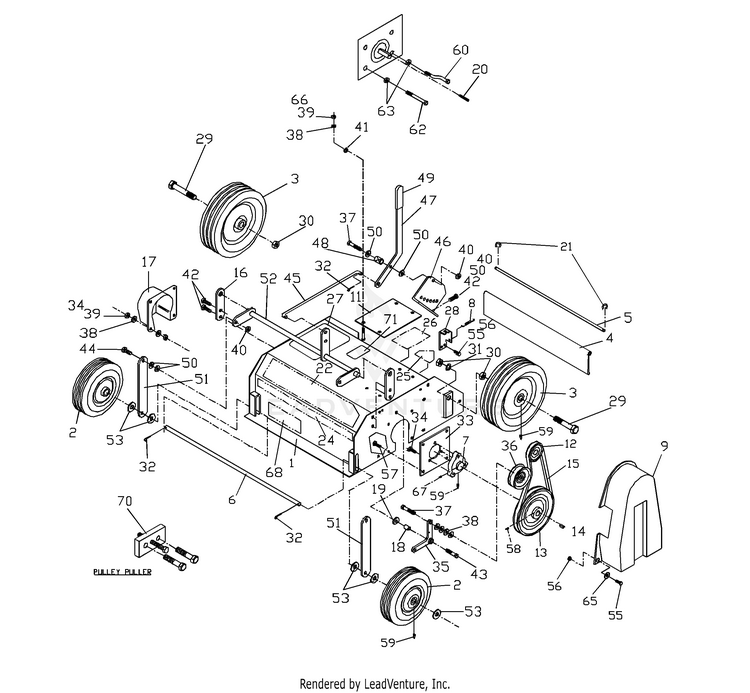

Body Assembly

...
...
1
RAKE BODY W/DECALS HUS-539104550
...
1
SLICER BODY W/DECALS HUS-539100873
...
2
WHEEL, FRONT HUS-539104549
...
3
WHEEL HUS-539104548
...
4
DEFLECTOR SHIELD HUS-539100508
...
5
DEFLECTOR ROD HUS-539100512
...
6
FRONT AXLE HUS-539100509
...
7
BEARING, FLANGED HUS-539100488
...
8
EXTENSION SPRING HUS-539976564
...
9
BELT GUARD HUS-539976086
...
11
PAD, ENGINE HUS-539100480
...
12
PULLEY, ENGINE DRIVE HUS-539100516
...
13
PULLEY, MAIN SHAFT HUS-539100511
...
14
KEY, #9 WOODRUFF HUS-539910211
...
15
BELT, DRIVE RAKE/SLICER DFS HUS-539100439
...
16
PIVOT ARM HUS-539100513
...
17
SHAFT GUARD HUS-539976524
...
18
BEARING, ONLITE RAKE/DT HUS-539100482
...
19
SPACER HUS-539100514
...
20
KEY 3/16 SQUARE X 1 3/4 HUS-539100471
...
21
RETAINING RING 5/16 HUS-539100470
...
22
DECAL, HUSQVARNA 17.5" HUS-539104790
...
24
DECAL, DT20 HUS-539104793
...
25
DECAL, CPSC HUS-539913010
...
26
DECAL, WARNING HUS-539113213
...
27
DECAL, ADJUSTING HUS-539100506
...
28
BRACKET, CABLE HUS-539100504
...
29
BOLT, AXLE 5/8-11 X 4 HUS-539100464
...
30
NUT JAM 5/8-11 HEX HUS-539100476
...
31
LOCKWASHER 5/8 HUS-539990333
...
32
Pins HUS-596029501
...
33
END PLATE HUS-539100487
...
34
HCS 5/16C X 1 1/4 HUS-539990627
...
35
BELL CRANK HUS-539100485
...
36
IDLER PULLEY HUS-539919078
...
37
HCS 3/8C X 2 HUS-539990588
...
38
GSPH HUS-596134901
...
39
Nuts HUS-596583702
...
40
GSPW Nuts HUS-596240901
...
41
WASHER SPRING LOCK WASHER WITH HUS-596238801
...
42
Bolts HUS-596564401
...
43
HCS 3/8C X 1 1/2 HUS-539990655
...
44
HCS 3/8C X 1 1/4 GR5 HUS-539976941
...
45
LINKAGE ARM HUS-539100496
...
46
ADJUSTMENT GAUGE HUS-539976121
...
47
ADJUSTING LEVER HUS-539100498
...
48
COMPRESSION SPRING HUS-539976438
...
49
GRIP HUS-539976526
...
50
GSPW Washers HUS-596433701
...
51
LIFT ARM HUS-539100501
...
52
HEIGHT ADJ ROD HUS-539100500
...
53
Washers HUS-595316401
...
55
Bolts HUS-596582501
...
56
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
57
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
58
SET SCREW 5/16 NYLOC HUS-539976956
...
59
GSPW Zerks HUS-596899901
...
60
BELT GUIDE, OFFSET HUS-539100521
...
62
SCREW, 5/16-24 X 2-3/4 HED CAP HUS-539100573
...
63
NUT JAM 5/16F HEX HUS-539100561
...
65
Washers HUS-597338501
...
66
SCREW HUS-874780528
...
67
SET SCW #10-32 X 1/4 HUS-539977679
...
68
DECAL, NASCAR HUS-539105071
...
70
PULLEY PULLER (OPT.) HUS-539100907
...
71
DECALS.WARN.CA.SPKARREST/PROP HUS-596024201
...
72
EXHAUST DEFLECTOR NOT SHOWN IN PARTS ILLUSTRATION; USED ON HONDA ENGINE ONLY HUS-539103564
...
73
SPARK ARRESTOR NOT SHOWN IN PARTS ILLUSTRATION; USED ON HONDA ENGINE ONLY HUS-539103563
...
74
SCREW NOT SHOWN IN PARTS ILLUSTRATION; USED ON HONDA ENGINE ONLY HUS-539103565
...
75
MUFFLER EXTENSION (FOR BRIGGS INTEK ENGINE ONLY.); NOT SHOWN IN PARTS ILLUSTRATION HUS-539105298

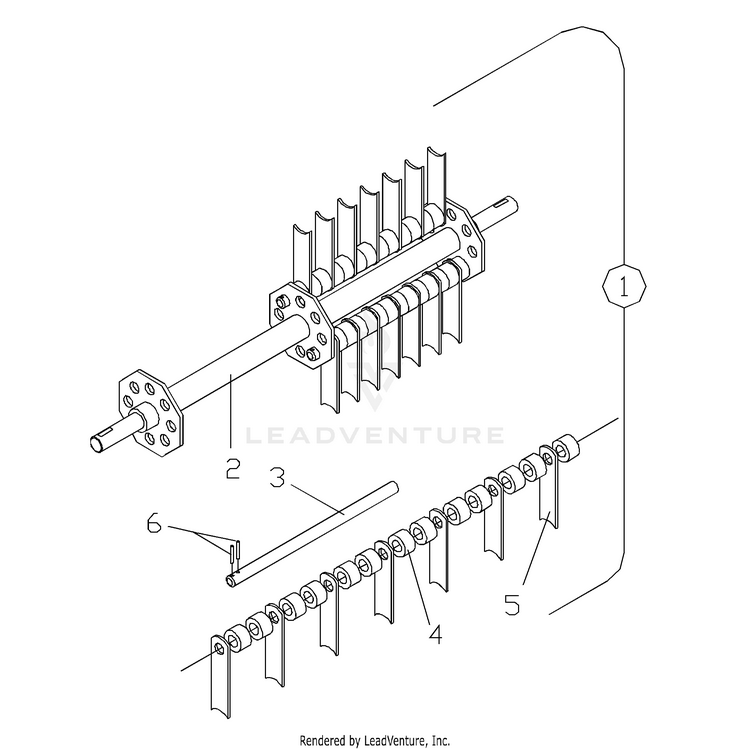

Dethatcher Shaft Assembly

...
...
1
RAKE SHAFT PARTS KIT HUS-539100414
...
2
RAKE SHAFT, BARE Y-K HUS-539100524
...
3
SATELLITE SHAFT Y-K HUS-539100525
...
4
SPACER HUS-539100526
...
5
FINGER-RAKE Y-K HUS-539100527
...
6
ROLL PIN 1/8 X 7/8 HUS-539100528

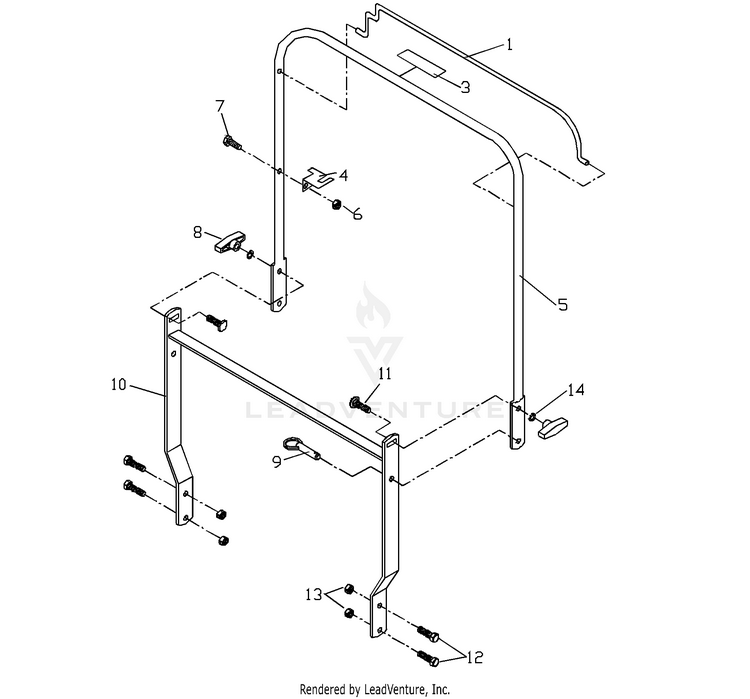

Handle Assembly

...
...
1
CLUTCH BAIL HUS-539100491
...
2
CLUTCH CABLE (NOT SHOWN) HUS-539100492
...
3
DECAL, CLUTCH CONTROL HUS-539100493
...
4
BRACKET, CABLE MOUNTING HUS-539100494
...
5
HANDLE, UPPER HUS-539100483
...
6
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
7
SCW 1/4-20 X 1-1/2 HEX HUS-539990639
...
8
KNOB HUS-539100481
...
9
DETENT PIN ASSEMBLY HUS-539100518
...
10
HANDLE, LOWER HUS-539100507
...
11
Bolts HUS-596671401
...
12
Bolts HUS-596564401
...
13
GSPW Nuts HUS-596240901
...
14
WASHER SPRING LOCK WASHER WITH HUS-596238801

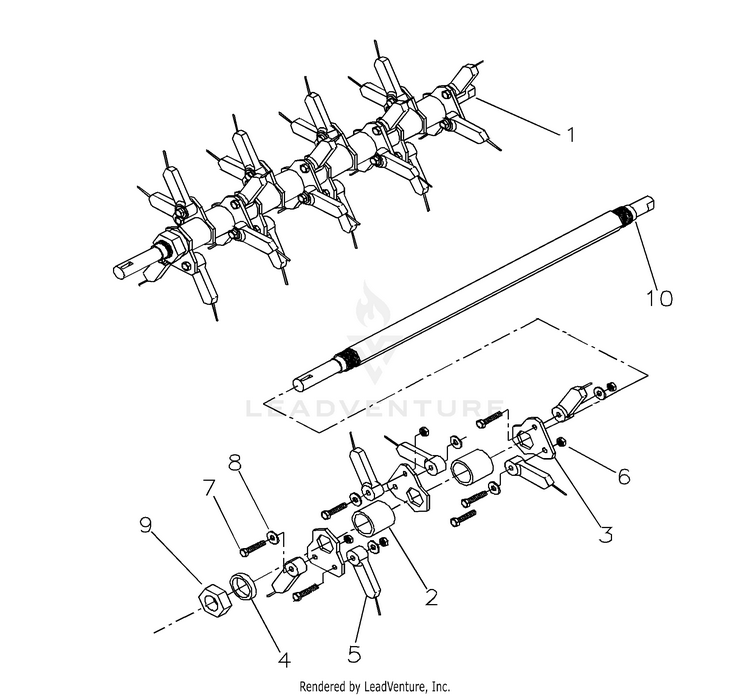

Slicer Shaft Assembly

...
...
1
SLICER SHAFT, COMPLETE HUS-539100415
...
2
SLICER SHAFT, BARE HUS-539100529
...
3
JAM NUT W/SET SCREW HUS-539100530
...
4
SPACER, SLEEVE SHORT HUS-539100531
...
5
BLADE HOLDER PLATE HUS-539100532
...
6
WASHER, BLADE HUS-539100533
...
7
SPACER, SLEEVE (LONG) HUS-539100534
...
8
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
9
SLICER BLADE HUS-539100536
...
10
Bolts HUS-596582501
...
11
SET SCREW 5/16 NYLOC HUS-539976956

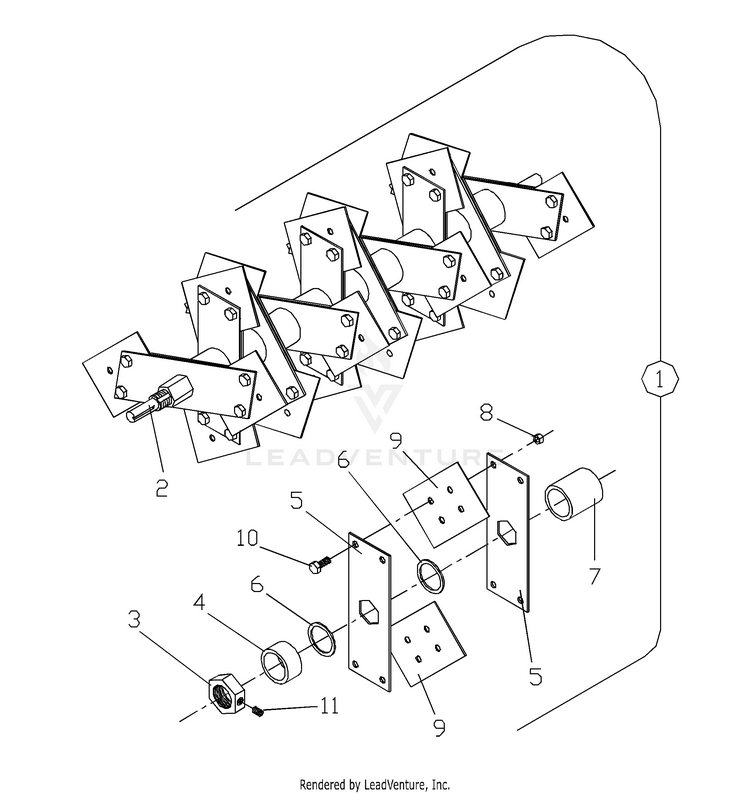

Spring Tine Shaft Assembly

...
...
1
SHAFT ASM HUS-539103556
...
2
SPACER - LONG HUS-539103550
...
3
PLATE, SPRING TONE HUS-539103548
...
4
SPACER, SHORT HUS-539103551
...
5
SPRING TINE HUS-539103553
...
6
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
7
BOLT HEX 1/4 X 1-1/4 HUS-539100266
...
8
Washers HUS-597338501
...
9
JAM NUT W/SET SCREW HUS-539100530
...
10
SHAFT, SPRING TINE HUS-539103552
