Husqvarna DT 18 C (2000-12) Power Rake / Seeder

Model: DT 18 C (2000-12)

Save Part Not Listed?
product name

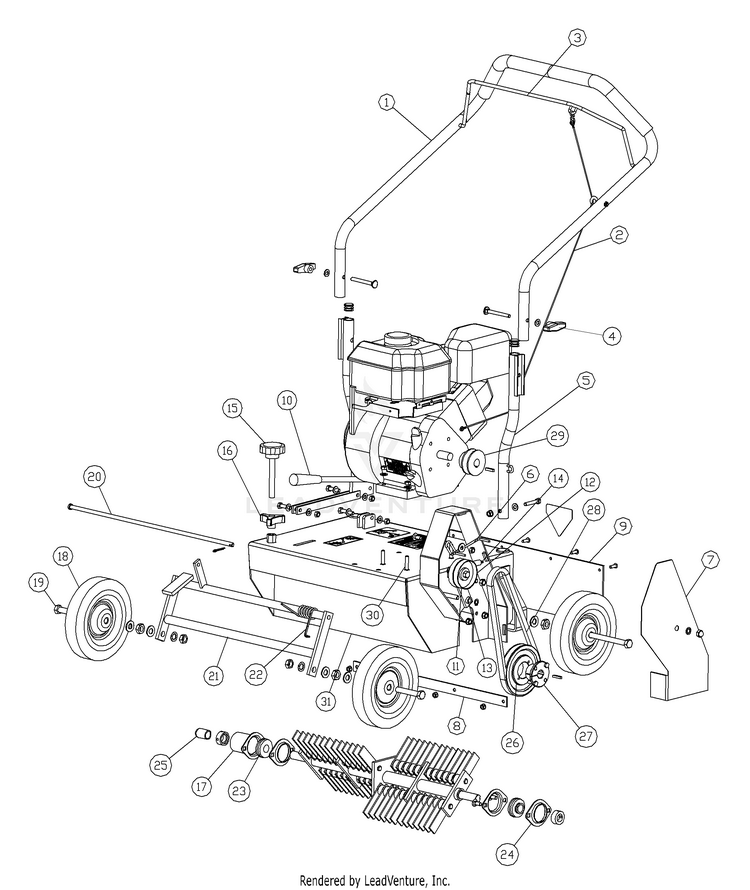

Compact Dethatcher

...
...
1
HANDLE ASSEMBLY Includes handle, bail, clutch cable, S-hook and handle grip, eye bolt and nut HUS-540054001
...
2
CLUTCH CABLE Includes clutch cable and S-hook HUS-539923702
...
3
BAIL HUS-540054003
...
4
KNOB Includes knob washer and bolt HUS-540054004
...
5
LOWER HANDLE ASSY Includes folding handle mount, 5/16-18 x 1 3/4" HCS, internal lockwasher and 5/16-18 hex nut HUS-540054005
...
6
BELT KEEPER KIT Includes belt keeper, 5/16 washer, 5/16 hex lock nut, 5/16-18 x 3/4 carriage bolt HUS-539005140
...
7
KIT BELT GUARD Includes shield, 3/8 internal lock washer and 3/8-16 acorn nut HUS-539054006
...
8
DEFLECTOR KIT Includes deflector strap, 1/4-20 x 3/4 slotted round screw (4 ea.), 1/4-20 hex keps nut (4 ea.) HUS-540054058
...
9
DEFLECTOR, NEOPRENE HUS-540005161
...
10
KIT, DEPTH LEVER ASSY Includes height adjustment link (2 ea.), adjustment lever, 5/16-18 x 1 1/4 hex head bolt (2 ea.), 5/16-18x1 1/2 hex head bolt, 5/16 flat washer (6 ea.), 5/16-18 hex lock nut (3 ea.) HUS-539054007
...
11
KIT, IDLER PULLEY Includes 2 3/4 idler pulley, clutch spring, idler arm, idler tab, 3/8 washer, 3/8-16 hex jam nut, 3/8-16 hex lock nut, 3/8-16 x 4 hex screw HUS-539005027
...
12
PULLEY, IDLER 2 3/4 OD PAINTED HUS-539000343
...
13
ARM, MOUNTING, IDLER PULLEY HUS-539005121
...
14
SPRING, CLUTCH HUS-539005129
...
15
KIT, DEPTH ADJ. KNOB HUS-539054008
...
16
KNOB HUS-539030485
...
17
GUARD, SHAFT END W/STAMPING CE HUS-539005013
...
18
WHEEL 8 X 1 3/4 RAKE HUS-540075051
...
19
BOLT KIT Includes 1/2-13 x 3 1/4 hex bolt, 1/2 washer (2 ea.), 1/2-13 hex jam nut (2 ea.), 1/2 lock washer (1 ea.) HUS-539054011
...
20
KIT, LIFT ARM ROD WSL Includes 1/4 cotter pin, 3/8 washer, plated rod HUS-539054012
...
21
LIFT ARM ASSEMBLY Includes lift arm weldment, torsion spring HUS-540054013
...
22
KIT, TORSION SPRING HUS-539054014
...
23
BRG 3/4" W/LOCKING COLLAR HUS-539000315
...
24
STAMPING KIT, 3/4" BEARING Includes 5/16-18 hex nut (2 ea.), 5/16-18x3/4 carriage bolt (2 ea.), bearing flanges (2 ea.), 5/16 lockwashers (2 ea.) HUS-539005185
...
25
CAP, PLASTIC HUS-539005005
...
26
V-PULLEY, B-5.0" HUS-539054015
...
27
BUSHING KIT Includes bushing 3/4 bore with screws, 3/16 square key HUS-540054016
...
28
KIT, V-BELT B-33" HUS-539054017
...
29
KIT, V-PULLEY B-2.5 X 3/4" Includes V-pulley 2 1/2 OD x 3/4 bore, 3/16 square key HUS-539054019
...
30
KIT,ENGINE BOLTS,C18/P18 Includes 5/16-18 x 1 1/2 carriage bolt (4 ea.), 5/16 washer (8 ea.), 5/16-18 hex lock nut (4 ea.) HUS-539054021
...
31
KIT, DECK HUS-540054022
...
32
KIT DECAL (Not shown) HUS-540054052
...
33
KIT, WHEEL 10" X 2.75" HUS-539005053

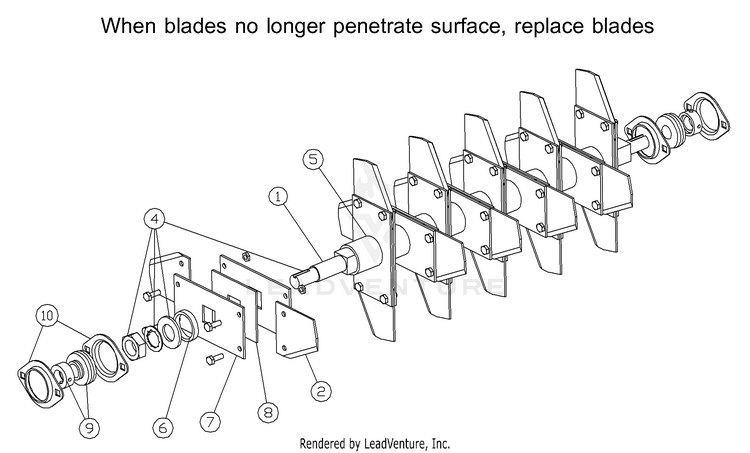

Delta Blade Reel

...
...
1
W/o blades or hardware DT18C HUS-540000071
...
1
DELTA REEL WSL W/o blades or hardware DT18 HUS-540005942
...
1
DELTA REEL COMPLETE Complete w/o bearings DT18C HUS-540005920
...
1
DELTA REEL WSL Complete w/o bearings DT18 HUS-540005942
...
1
Complete w/ blades and bearings DT18C HUS-540000071
...
1
DELTA REEL WSL Complete w/ blades and bearings DT18 HUS-540005942
...
2
BLADE SET, DELTA - 20 EACH DT18C / DT18 HUS-539005970
...
3
BOLT KIT DT18C / DT18 (not shown) HUS-540005075
...
4
DELTA REEL WSL W/ nut and washers DT18C / DT18 HUS-540005942
...
5
SPACER, CARRIER, STEEL TUBE DT18C / DT18 HUS-539005064
...
6
END RING, STEEL DT18C / DT18 HUS-540005065
...
7
PLATE, BLADE CARRIER DT18C HUS-540005268
...
7
PLATE, BLADE CARRIER DT18 HUS-539005062
...
8
PLATE, BLADE SPACER DT18C HUS-539005269
...
8
PLATE, BLADE SPACER DT18 HUS-539005063
...
9
BRG 3/4" W/LOCKING COLLAR DT18C / DT18 HUS-539000315
...
10
STAMPING KIT, 3/4" BEARING Includes flanges and hardware DT18C / DT18 HUS-539005185

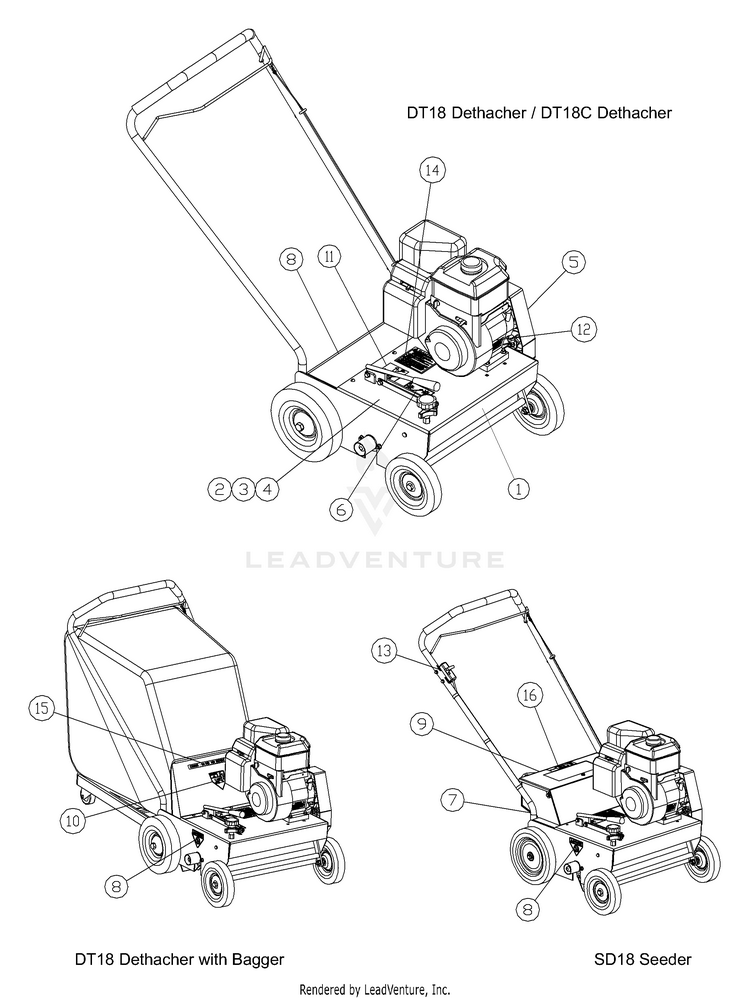

Dethatcher / Seeder Decal Placement

...

No Parts Available for this Schematic

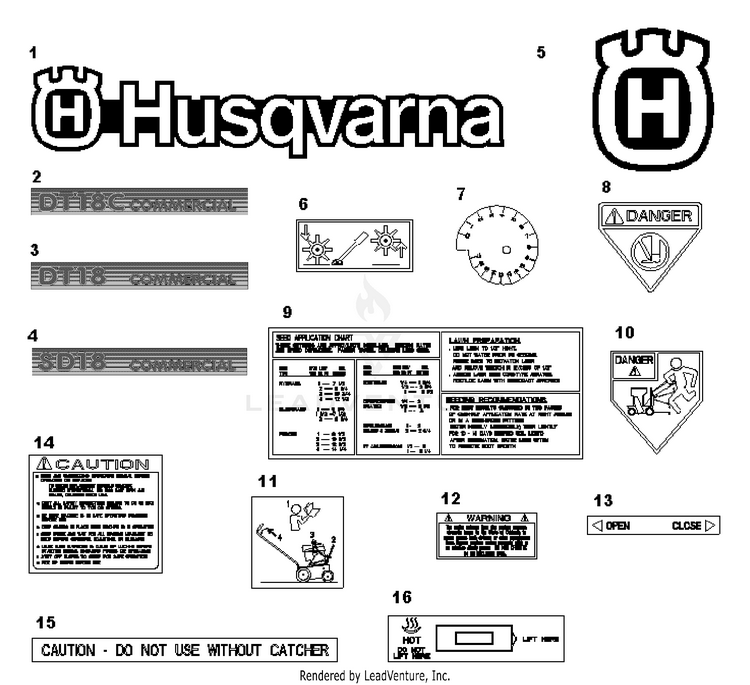

Dethatcher / Seeder Decals

...

No Parts Available for this Schematic

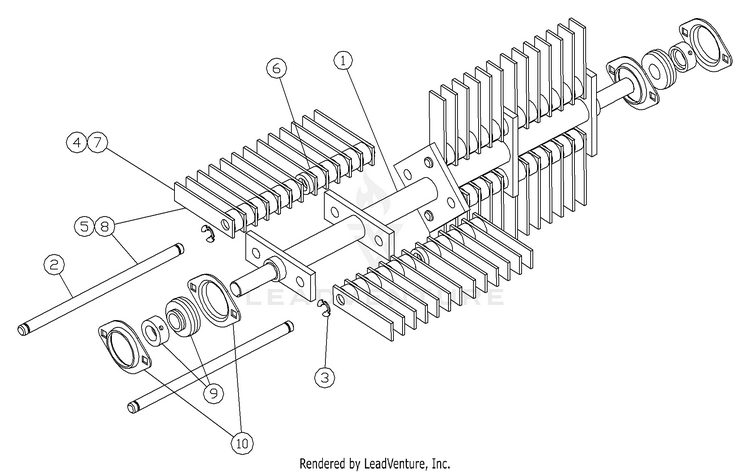

Flail Blade Reel

...
...
1
ROTOR, FLAIL (Does not include blades, bearings, or shafts) DT18C / DT18 HUS-539005170
...
1
KIT, ROTOR PARTS W/BLADES Complete w/o bearings DT18C HUS-539005275
...
1
ROTOR ASSY W/BLADES Complete w/o bearings DT18 HUS-539005175
...
1
KIT, ROTOR PARTS W/BRG Complete w/ blades and bearings DT18C HUS-539005280
...
1
ROTOR PARTS KIT COMPLETE Complete w/ blades and bearings DT18 HUS-539005180
...
2
SHAFT SET, 4 EA WITH C CLIPS DT18C / DT18 HUS-539005002
...
3
RING RETAINING EXT 1/2 DT18C / DT18 HUS-539109305
...
4
BLADE SET, 52 EA DT18C HUS-539005201
...
5
BLADE & SHAFT SET DT18C HUS-539005203
...
6
SPACER SET RUBBER 48 EACH DT18C / DT18 HUS-539005004
...
7
BLADE SET, 52 EA DT18 HUS-539005001
...
8
BLADE & SHAFT KIT DT18 HUS-539005003
...
9
BRG 3/4" W/LOCKING COLLAR DT18C / DT18 HUS-539000315
...
10
STAMPING KIT, 3/4" BEARING Includes flanges and hardware DT18C / DT18 HUS-539005185

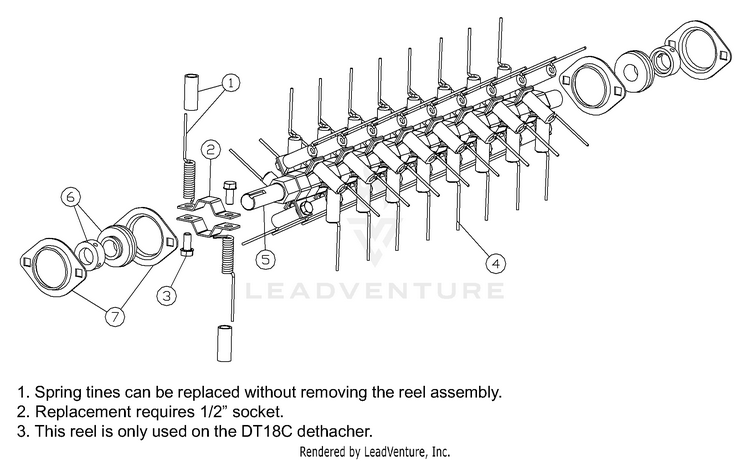

Spring Tine Reel

...
...
1
SPRING TINE W/SLEEVE (Orders in increments of 100 are preferred) HUS-540091010
...
2
CLAMP TINE PT# 491-011 (Orders in increments of 100 are preferred) HUS-540091011
...
3
SCREW (Orders in increments of 100 are preferred) HUS-540091012
...
4
TINE REEL ASSY Complete w/o bearings HUS-540054050
...
4
TINE REEL ASSY Complete w/ bearings HUS-540054056
...
5
KIT, SHAFT TINE REEL HUS-540054051
...
6
BRG 3/4" W/LOCKING COLLAR HUS-539000315
...
7
STAMPING KIT, 3/4" BEARING Includes flanges and hardware HUS-539005185
