Husqvarna DS800 (504625401) (2007-12) Accessory

Model: DS800 (504625401) (2007-12)

Back To Assemblies

Save Part Not Listed?
product name

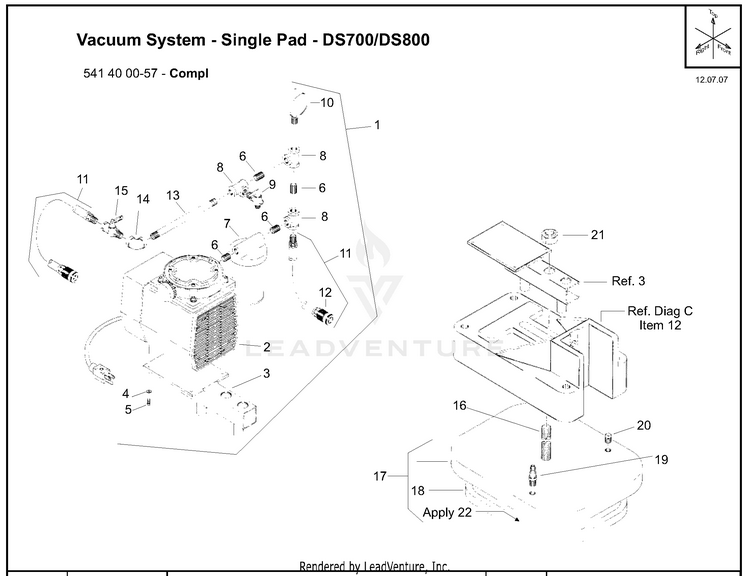

Vacuum System - Single Pad

...
...
1
Vacuum Pump Assy Includes Items 2 - 15 HUS-541401607
...
2
Pump, Vacuum Incls: Muffler HUS-505549502
...
xx
Muffler, Vacuum Pump HUS-162120
...
xx
Kit, Vacuum Pump Service HUS-162119
...
3
Frame - Vacuum Pump HUS-541401592
...
4
Washer, Flat 1/4 SAE HUS-541402289
...
5
Capscrew, Soc Hd 10-32 x 1/2 HUS-541205252
...
6
Pipe Fit., Nipple 1/4 NPT x Close - Galv HUS-541402423
...
7
Trap, Water Incls: Ball & Jar HUS-162438
...
xx
Ball, Water Trap HUS-175308
...
xx
Jar, Water Trap HUS-175309
...
8
Pipe Fit., Female Tee 1/4 NPT - Galv HUS-541402422
...
9
Valve, Release 1/4 NPT HUS-162439
...
10
Gauge, Vacuum HUS-090662
...
11
Hose Assy Includes Item 12 HUS-541401508
...
12
Body, Quick Disconnect, 1/4 PL HUS-541400323
...
13
Pipe Fit., Nipple 1/4 x 7 Galv HUS-541402359
...
14
Pipe Fit., 90 Deg Fem Elbow 1/4 NPT - Galv HUS-541402358
...
15
Valve Shut-Off - Single Pad HUS-541401493
...
16
Stud, Pad 3/4-10 x 8" HUS-541401405
...
17
Pad, Vacuum Includes Rubber Gasket HUS-541401932
...
18
Gasket, Rubber Replacement Gasket HUS-541401930
...
19
Stem, Quick Disconnect HUS-541401901
...
20
Pipe Fit., Plug 1/4 NPT HUS-541401899
...
21
Nut, Hex 3/4-10 HUS-541403748
...
22
Adhesive, Tube - 5 OZ Used on 18 HUS-090249
