Husqvarna DPR22H46STA (2001) Tractor

Model: DPR22H46STA (2001)

Back To Assemblies

Save Part Not Listed?
product name

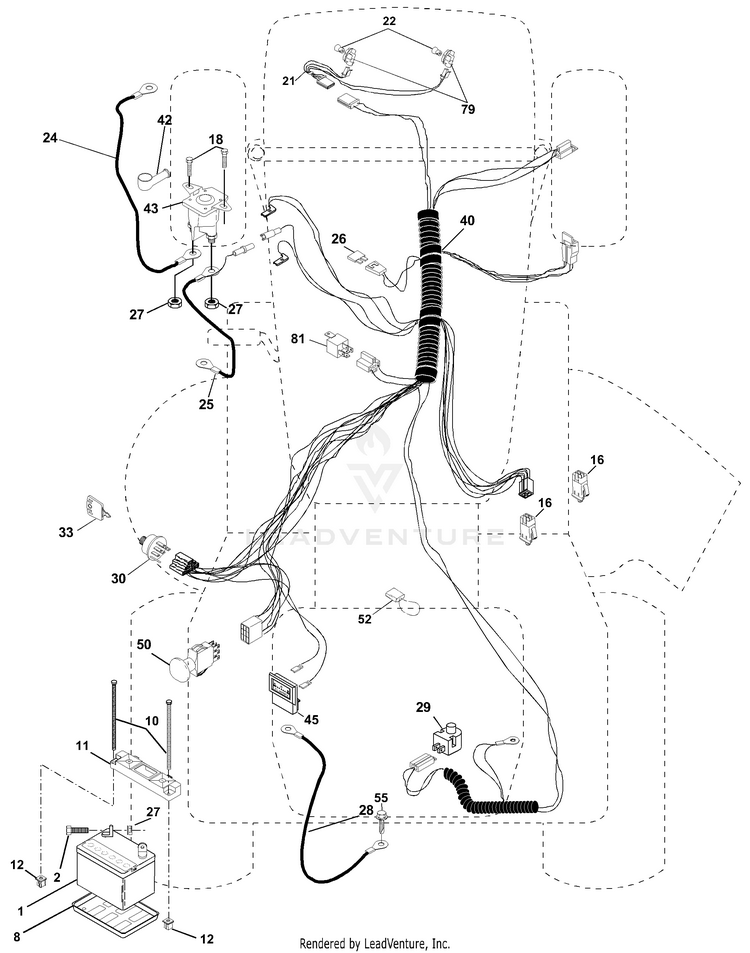

Electrical

...
...
1
Battery HUS-163465
...
2
Bolt Hex Hd 1/4-20 UNC X 3/4 HUS-74760412
...
8
Tray, Battery HUS-7603J
...
10
Bolt, BTR FRT 1/4-20 x 7.5 HUS-145211
...
11
Hold Down Battery, Front HUS-150109
...
12
Nut, Push, Nylon HUS-145769
...
16
Switch Interlock Push-In HUS-153664
...
21
Harness Asm Light W/4152j HUS-166184
...
22
Bulb Light #1156 HUS-4152J
...
24
Cable Battery HUS-8860R
...
25
Cable Batterywire HUS-146148
...
26
Fuse HUS-175158
...
27
Nut Keps Hex 1/4-20 Unc HUS-73510400
...
28
Cable Ground HUS-145491
...
29
Switch Plunger Normal OP Olive HUS-160784
...
30
Switch Ign 4 pos w/lights HUS-175566
...
33
Key Ign HUS-140401
...
40
Harness Ign. HUS-170233
...
41
Bolt Blk Fin Hex 1/4-20 x 1/2 HUS-17720408
...
42
Cover Terminal Red HUS-131563
...
43
Solenoid HUS-175141
...
45
Ammeter Rectangular HUS-122822X
...
50
Switch, PTO HUS-174653
...
52
Protection Wire Loop HUS-141940
...
55
Screw Thdrol 5/16-18 x 1/2 HUS-17490508
...
79
Bulbholder HUS-163996
...
81
Relay Asm HUS-109748X
