Husqvarna DPR20H46STB (2000) Tractor

Model: DPR20H46STB (2000)

Back To Assemblies

Save Part Not Listed?
product name

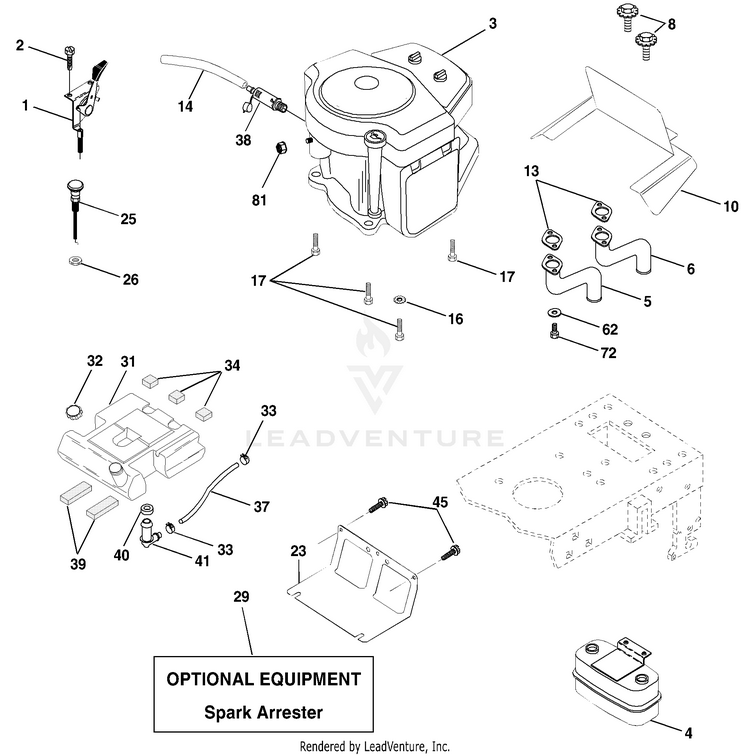

Engine

...
...
1
Control Th/Flag 180 LH 36" HUS-148875
...
2
Screw Hex Thd Cut 1/4-20 x 5/8 T HUS-17720410
...
4
Muffler Asm Twin Lo-Tone HUS-149723
...
5
Pipe Exhaust LH Intek HUS-159955
...
6
Pipe Exhaust RH Intek HUS-160589
...
8
Bolt 5/16-18 UNC x 3/4 w/Sems HUS-150176
...
10
Shield Browning Intek II HUS-162797
...
13
Muffler Gasket HUS-165391
...
14
Nipple Pipe 3/8 Npt X 4-1/2" HUS-13280336
...
15
Elbow Std 90 Degree 3/8-18 Npt HUS-13200300
...
16
Washer Lock Ext Tooth 3/8 HUS-11050600
...
17
Screw Thdrol 3/8-16 x 1-1/2 HUS-17490624
...
23
Shield Heat HUS-169837
...
25
Choke Control 37" HUS-145996
...
26
Nut, Keps 3/8-24 UNF HUS-73920600
...
29
Kit Spark Arrestor (Flat Scrn) HUS-137180
...
31
Tank Fuel 3 50 Rear YTGT HUS-151346
...
32
Cap Asm Fuel W/sym Vented HUS-140527
...
33
Clamp Hose Black HUS-123487X
...
34
Pad, Spacer HUS-106082X
...
37
Line Fuel HUS-8543R
...
39
Pad, Idler HUS-109227X
...
40
Bushing HUS-3645J
...
41
Stem Tank Fuel HUS-139277
...
45
Screw Hexwsh Thdr 3/8-16 x 3/4 HUS-17000612
...
62
Washer Lock 5/16 HUS-10040500
...
72
Screw Hex Hd Cap 5/16-18 x 3/4 HUS-71070512
...
81
Nut Keps Hex 1/4-20 UNC HUS-73510400
