Husqvarna DPR20H42STA (1999 & Before) Tractor

Model: DPR20H42STA (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

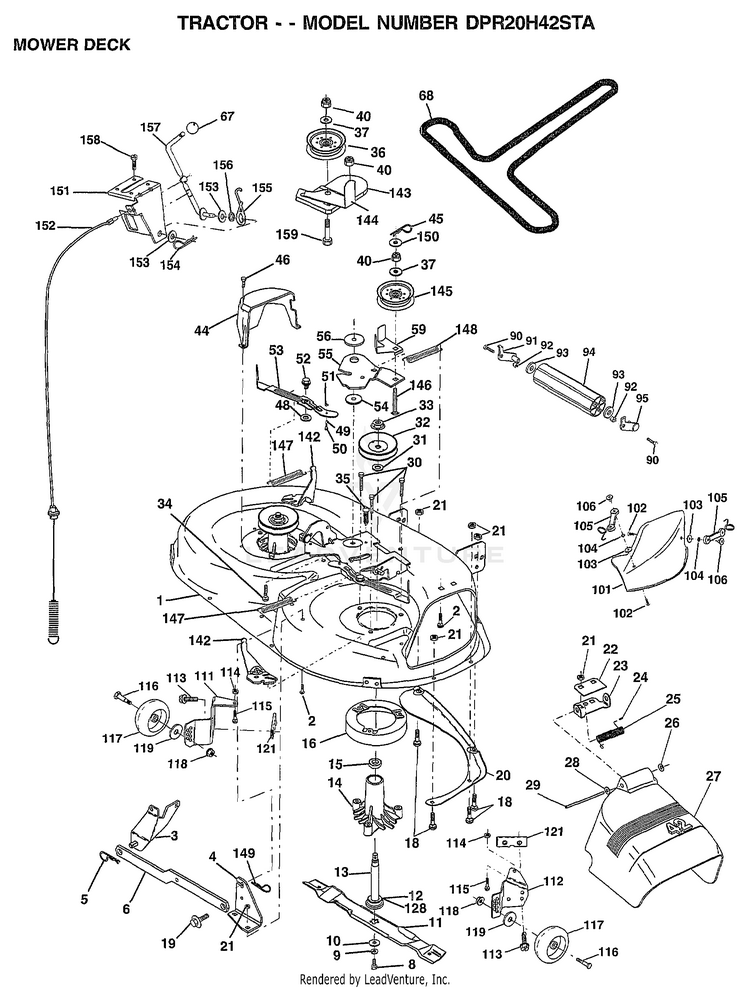

DECK

...
...
1
MOWER DECK ASSEMBLY HUS-165892X421
...
2
BOLT HUS-72140506
...
3
BRKT ASM SWAY BAR HUS-138017
...
4
BRACKET ASSY DECK HUS-165460X421
...
5
SUB= 85902 HUS-4939M
...
6
SUB= 130833 HUS-130832
...
8
BLADE BOLT HUS-850857
...
9
SUB= 10040600 HUS-10030600
...
10
WASHER.HARD.BLADE HUS-140296
...
11
"BLADE.42"" MULCHER" HUS-134149
...
11
"BLADE.42"" HIPERF" HUS-138498
...
12
BEARING.BALL HUS-129895
...
13
SUB= 137646 HUS-137645
...
14
HSG ASM MANDREL HUS-128774
...
15
BEARING HUS-110485X
...
16
STRIPPER RND MWR HUS-140329
...
18
BOLT HUS-72140505
...
19
BOLT SHD 5/16-18 HUS-132827
...
20
BAFFLE VORTEX 42 HUS-159770
...
21
SUB= 73690500 HUS-73680500
...
22
STIFFENER BRACKET HUS-134753X421
...
23
BRACKET DEFLBRACKET DEFLECTOR MOWER 42'' HUS-131267X421
...
24
CAP-SLEEVE LT HUS-105304X
...
25
SPRING TORSION HUS-123713X
...
26
NUT PUSH M HUS-110452X
...
27
SHIELD DEFLECTOR 42'' HUS-130968X428
...
28
WASHER HUS-19111016
...
29
HINGE ROD HUS-131491
...
30
"SCREW-THD ROLL,WA" HUS-157722
...
31
WASHER HUS-129963
...
32
PULLEY HUS-173436
...
33
SUB= 139729 HUS-137266
...
34
BOLT HUS-72110614
...
35
XMAS TREE FASTNER HUS-133835
...
36
PULLEY HUS-173438
...
37
WASHER HUS-19131316
...
40
SUB= 73690600 HUS-73680600
...
44
GUARD MAND LH BLK HUS-140088
...
45
RETAINER M HUS-4497H
...
46
SCREW.1/4-20X5/8 HUS-137729
...
48
HARD SMALL WASHER HUS-133944
...
49
ROLLER ASM-CAM HUS-155066
...
50
SHOULDER BOLT HUS-131340
...
51
LOCKNUT HUS-69180
...
52
BOLT.SHLD.5/16-18 HUS-139888
...
53
BRAKE PAD ARM ASM HUS-131845
...
54
HARDENED WASHER HUS-133943
...
55
ARM, IDLER HUS-155046X421
...
56
SPACER RETAINER HUS-122052X
...
59
GUARD TUV IDLER HUS-173442
...
67
KNOB HUS-171598
...
68
BELT-V.SEC.46.KEL HUS-144959
...
90
BOLT HUS-74760616
...
91
SUB= 532132274 HUS-132274
...
92
NUT HUS-73800600
...
93
WASHER HUS-19171416
...
94
SUB= 532132264 HUS-132264
...
95
SUB= 532132273 HUS-132273
...
101
"COVER.MULCH.42""" HUS-136420
...
102
SCREW HUS-71161010
...
103
WASHER #10 HUS-19061216
...
104
LOCKWASHER HUS-10071000
...
105
LATCH ASSY.BAGGER HUS-160793
...
106
WELDNUT HUS-2029J
...
111
BRACKET HUS-155197X421
...
112
BRACKET HUS-155198X421
...
113
SCREW HUS-17060512
...
114
NUT HUS-73510500
...
115
SUB= 872110504 HUS-72110504
...
116
BOLT M HUS-4898H
...
117
WHEEL.GUAGE HUS-165746
...
118
LOCKNUT HUS-73930600
...
119
WASHER HUS-19121414
...
121
BRACKET.EXTRD.GWL HUS-143723
...
128
WASHER.FELT. HUS-153390
...
142
ARM SPRING BRAKE MOWER HUS-165890X421
...
143
BRACKET ARM IDLER 42'' HUS-157109X421
...
144
KEEPER BELT 42'' CLUTCH CABLE HUS-173441
...
145
PULLEY IDLER FLAT HUS-173437
...
146
BOLT HUS-173439
...
147
SPRING EXTENSION HUS-131335
...
148
SPRING RETURN IDLER HUS-169022
...
149
RETAINER SPRING HUS-165898
...
150
WASHER PM HUS-19091216
...
151
BRKT CLUTCH CABLE HUS-169670
...
152
"CABLE.CLUTCH.42""" HUS-169676
...
153
WASHER FLAT HUS-169674
...
154
SPRING RETAINER HUS-169675
...
155
SPRING RETENTION LVR CLUTCH CAB HUS-169671
...
156
SPACER HUS-169672
...
157
ROD.CLUTCH.CABLE.3/8 HUS-169669
...
158
SCREW LT HUS-17720410
...
159
BOLT HUS-72140614
...
xx
MANDREL ASM HUS-130794
...
xx
MOWER DECK HUS-172559
