Husqvarna DPR20H42STA (1999 & Before) Tractor

Model: DPR20H42STA (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

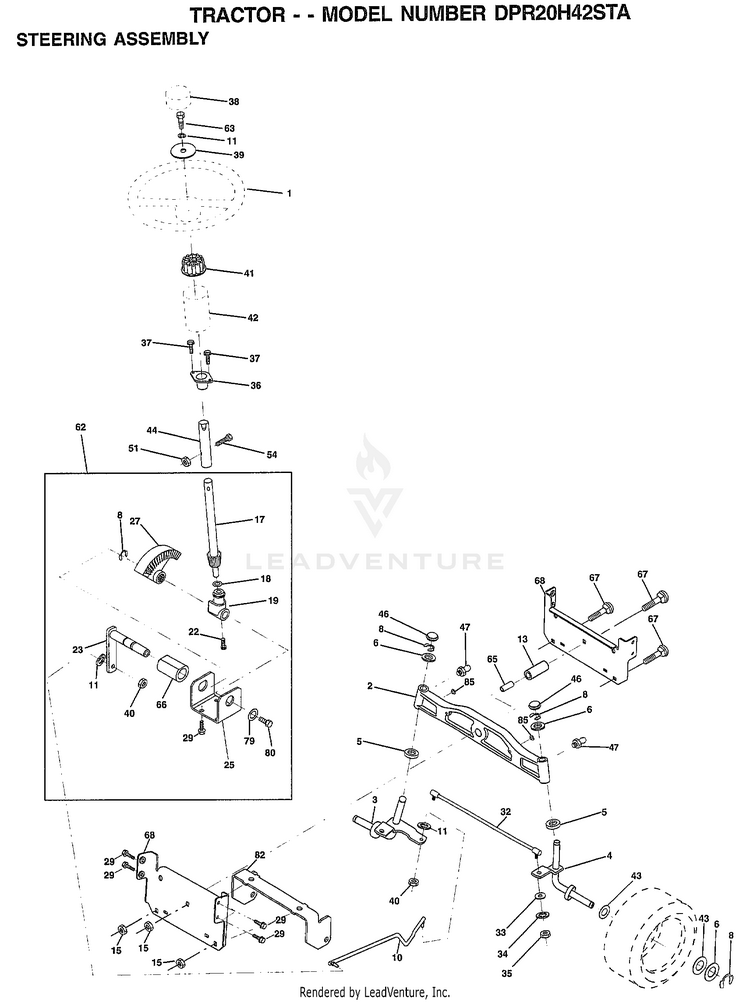

STEERING

...
...
1
WHEEL.STEERING HUS-159944X428
...
2
AXLE ASSY HUS-165854
...
3
SPINDLE ASM HUS-169840
...
4
SPINDLE ASM HUS-169839
...
5
WASHER .T HUS-6266H
...
6
WASHER HUS-121748X
...
8
RING HUS-12000029
...
10
LINK DRAG HUS-169832
...
11
Washer, Lock Hvy. Hlcl. Spr. 3/8 HUS-10040600
...
13
SPACER BEARING HUS-136518
...
15
NUT.HXFLG.LOCK. HUS-145212
...
17
SHAFT ASM STEERIN HUS-156546
...
18
THRUST WASHER HUS-57079
...
19
SUPPORT.SHAFT.STEER HUS-160395
...
22
SCREW.HX.WSH.HD HUS-165857
...
23
SHAFT.ASM.PITMAN HUS-165851
...
25
BRKT-STEERING HUS-154406
...
27
GEAR SECTOR HUS-136874
...
29
SCREW HUS-17060612
...
32
ROD TIE HUS-171888
...
33
WASHER M HUS-19111216
...
34
LOCKWASHER HUS-10040500
...
35
CROWNLOCK NUT HUS-73540500
...
36
BUSHING.STEERING HUS-155099
...
37
"SCREW-TT,10-32 FL" HUS-152927
...
38
INSERT.CAP.STRG.WH HUS-159946X428
...
39
WASHER HUS-19132411
...
40
GRIPCO NUT HUS-7810H
...
41
ADAPTOR.WHEEL.STG HUS-159945
...
42
BOOT.STEERING.DASH.P/L HUS-145054X428
...
43
WASHER HUS-121749X
...
44
EXT SHAFT STEERIN HUS-153720
...
46
CAP HUS-121232X
...
47
ZERK M HUS-6855M
...
51
NUT HUS-73800500
...
54
BOLT HUS-74780520
...
62
KIT.STEER.ASM HUS-167902
...
63
BOLT HUS-74780616
...
65
"SPACER BRCAE,AXLE" HUS-160367
...
66
"BEARING-ARM,PITMA" HUS-154404
...
67
BOLT RDHD 3/8-16 HUS-72140618
...
68
BRACE AXLE HUS-169827
...
79
WASHER HUS-19132012
...
80
BOLT.HX.NYLON3/8-16X3/ HUS-74950612
...
82
BRKT SUSP CHASSIS FRT HUS-169835
...
85
XMAS TREE FASTNER HUS-133835
