Husqvarna DPR20H42STA (1999 & Before) Tractor

Model: DPR20H42STA (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

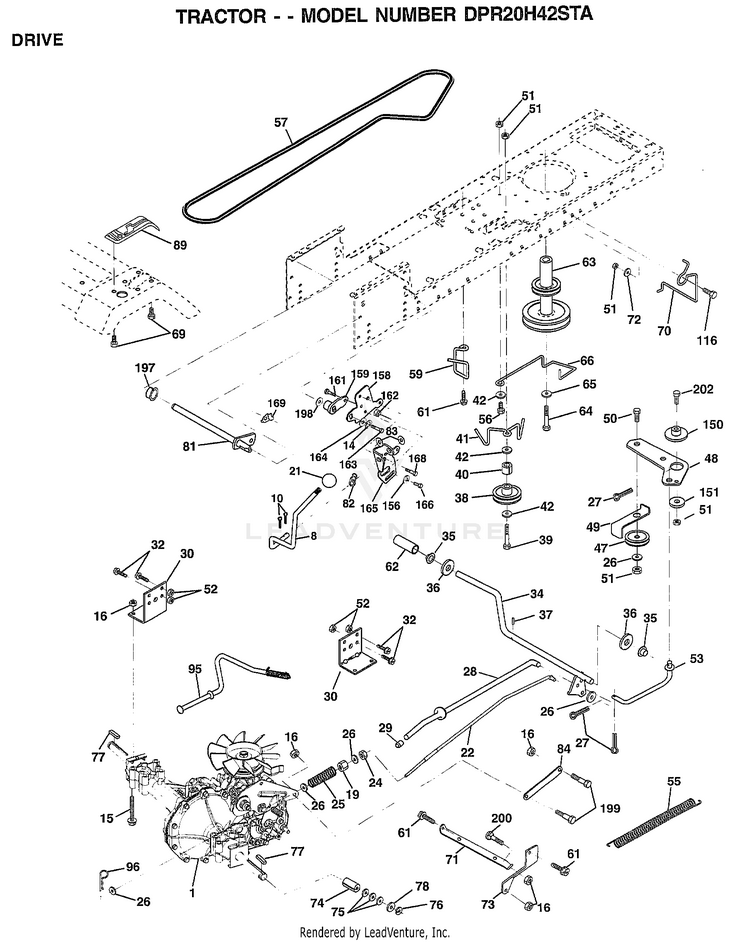

DRIVE

...
...
1
CHECK WITH SUPPLIER HUS-SUPPLIER
...
8
ROD.SHIFT.FENDER.ADJ.LT.CRD HUS-165619
...
10
PIN COTTER 1/8 HUS-76020416
...
14
LOCKWASHER HUS-10040400
...
15
BOLT.HX.FLG.5/16 HUS-74490544
...
16
NUT HUS-73800500
...
19
NUT HUS-73800600
...
21
KNOB DLX BLK/BLK HUS-140845
...
22
ROD BRAKE HYDRO HUS-169498
...
24
NUT HUS-73350600
...
25
SPRING ROD LT HUS-106888X
...
26
WASHER HUS-19131316
...
27
COTTER PIN HUS-76020412
...
28
ROD.BRAKE.PARK.LT HUS-145204
...
29
PLUNGER CAP T HUS-71673
...
30
BRACKET MTG TRANSAXLE HUS-169592
...
32
BOLT HUS-74760512
...
34
SHAFT ASM-PEDAL F HUS-155071
...
35
NYLON BEARING HUS-120183X
...
36
WASHER LT HUS-19211616
...
37
SUB= 2882J HUS-1572H
...
38
FLAT IDLER PULLEY HUS-131494
...
39
BOLT HUS-74760644
...
40
SPACER T HUS-4470J
...
41
"KEEPER,BELT.IDLER FLAT" HUS-165838
...
42
WASHER HUS-19131312
...
47
SUB= 139245 HUS-127783
...
48
BELLCRANK.CLUTCH HUS-154407
...
49
RETAIN BELT HUS-123205X
...
50
SUB= 74930624 HUS-74760624
...
51
SUB= 73690600 HUS-73680600
...
52
SUB= 73690500 HUS-73680500
...
53
"LINK, CLUTCH T" HUS-105710X
...
55
"SPRING, RETURN LT" HUS-105709X
...
56
Bolt Fin Flex 3/8-16unc X 1-1/4 HUS-74760620
...
57
"BELT.GD DRV 82""" HUS-140294
...
59
KEEPER BELT SPAN CTR HUS-169691
...
61
SCREW HUS-17060612
...
62
PEDAL COVER T HUS-8883R
...
63
PULLEY.ENGINE HUS-140186
...
64
BOLT HUS-71170764
...
65
LOCKWASHER HUS-10040700
...
66
KEEPER-BELT HUS-154778
...
69
SCREW HEXWSH H-L HUS-142432
...
70
KEEPER BELT ENG HUS-134683
...
71
STRAP TORQUE LH HYDRO HUS-169183
...
72
WASHER HUS-19132012
...
73
STRAP TORQUE RH HYDRO HUS-169182
...
74
SPACER HUS-169496
...
75
WASHER HUS-121749X
...
76
E-RING LT HUS-12000001
...
77
SQUARE KEY HUS-123583X
...
78
WASHER HUS-121748X
...
81
SHAFT HUS-165596
...
82
"SPRING,TORSION" HUS-123782X
...
83
WASHER HUS-19171216
...
84
LINK TRANSAXLE HUS-169594
...
89
CONSOLE HYDRO HUS-169373X428
...
95
CONTROL ASSY HUS-170201
...
96
RETAINER M HUS-4497H
...
116
BOLT RDHD 3/8-16 HUS-72110610
...
150
BUSHING.BELLCRANK.GRD.DR HUS-165850
...
151
WASHER HUS-19133210
...
156
WASHER.SRRTD.5/16 HUS-166002
...
158
BRKT.SHIFT.MOUNT HUS-165589
...
159
HUB.SHIFT HUS-165494
...
161
BOLT T HUS-72140406
...
162
SUB= 73690400 HUS-73680400
...
163
NLA HUS-74780416
...
164
WASHER.5/8X.281X10GA HUS-19091010
...
165
BRKT.PIVOT.LEVER HUS-165623
...
166
SCREW.5/16-18X5/8 HUS-166880
...
168
BOLT.SHOULDER.5/16-18X.561 HUS-165492
...
169
PLATE.FASTENING HUS-165580
...
197
NYLINER SNAP-IN HUS-169613
...
198
WASHER NYLINER HUS-169593
...
199
BOLT SHOULDER HUS-169612
...
200
BOLT HUS-72140508
...
202
BOLT.3/8-16X1.50 HUS-72110612
