Husqvarna DE16HT36RBA (1999 & Before) Tractor

Model: DE16HT36RBA (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

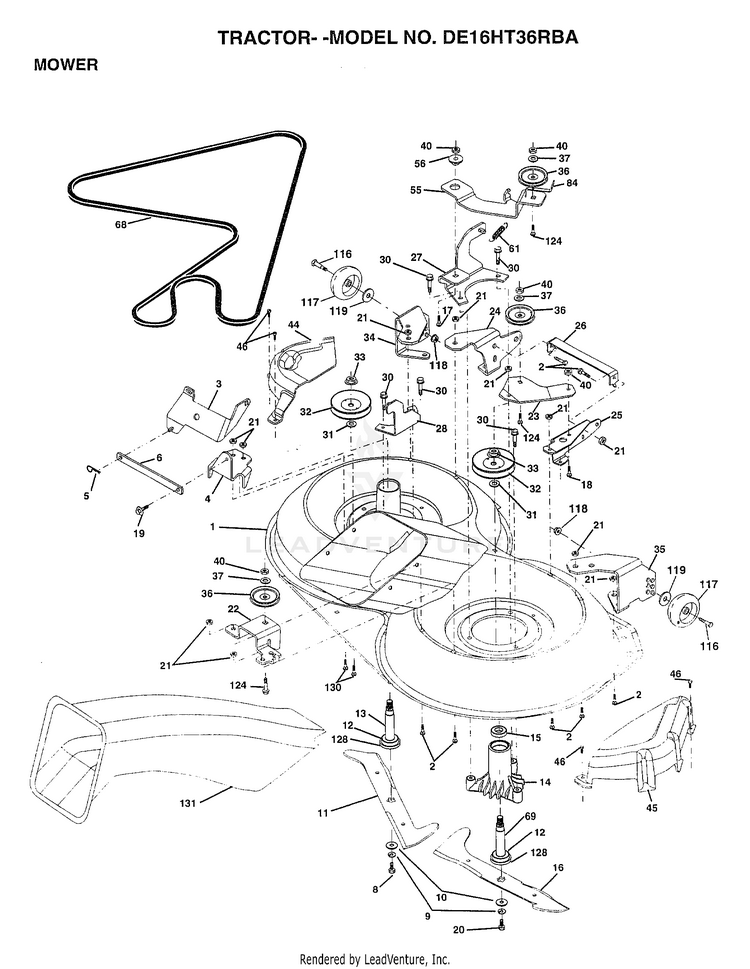

MOWER

...
...
1
HOUSING.ASM.MOWER HUS-165552
...
2
BOLT HUS-72140506
...
3
BRKT.ASM.S-BAR.CHASSIS HUS-165569
...
4
BRKT.BAR.SWAY.DECK HUS-165558
...
5
SUB= 85902 HUS-4939M
...
6
BAR.SWAY.92.CRD HUS-165557
...
8
BLADE BOLT HUS-850857
...
9
SUB= 10040600 HUS-10030600
...
10
BAIL CTL YEL FW HUS-140926
...
11
BLADE.3-1.LH.92.CRD HUS-165560
...
12
BEARING.BALL HUS-129895
...
13
SUB= 137646 HUS-137645
...
14
HSG ASM MANDREL HUS-128774
...
15
BEARING HUS-110485X
...
16
BLADE.3-1.RH.CRD.92 HUS-165561
...
17
BOLT.3/8-14X1.25 HUS-72140610
...
18
BOLT D HUS-72110608
...
19
BOLT SHD 5/16-18 HUS-132827
...
20
BOLT.3/8-24X1.25 HUS-165484
...
21
SUB= 73690500 HUS-73680500
...
22
BRKT.IDLER.SPRT.CRD HUS-165243
...
23
"BRKT.IDLER.SPRT.RF.92,CRD" HUS-165446
...
24
BRKT.SUSP.LF.92.CRD HUS-165242
...
25
BRKT.SUSP.RF.92.CRD HUS-165244
...
26
BRACE.SUPT.SUSP.FRT.CRD HUS-165237
...
27
BRKT.ASM.SUSP.RR.92.CRD HUS-165568
...
28
BRKT.ASM.SUSP.LR.92.CRD HUS-165567
...
30
"SCREW-THD ROLL,WA" HUS-157722
...
31
WASHER HUS-129963
...
32
PULLEY.MAND.36/46 HUS-153531
...
33
SUB= 139729 HUS-137266
...
34
BRKT.GUAGE.WHL.LF.92.CRD HUS-165239
...
35
BRKT.GUAGE.WHL.RF.92.CRD HUS-165238
...
36
PULLEY.IDLER.4.25 HUS-146763
...
37
WASHER HUS-19131316
...
40
SUB= 73690600 HUS-73680600
...
44
COVER.MANDREL.LH.92.CRD HUS-165724
...
45
COVER.MANDREL.RH.92.CRD HUS-165556
...
46
SCREW.1/4-20X5/8 HUS-137729
...
55
ARM.IDLER.92.CRD HUS-165445
...
56
SPACER RETAINER HUS-122052X
...
61
SPRING.TENSION.BELT HUS-165945
...
68
HEX-BELT.92.MWR.105AA HUS-165555
...
69
SHAFT.ASM.W/LWR.BRG.RH.THD HUS-165482
...
84
"KEEPER-BELT,IDLER" HUS-156085
...
116
BOLT.SHOULDER HUS-137644
...
117
WHEEL GAGE DONUT HUS-133957
...
118
LOCKNUT HUS-73930600
...
119
WASHER HUS-19121414
...
124
BOLT.3/8-16X1.50 HUS-72110612
...
128
WASHER.FELT. HUS-153390
...
130
SUB= 72270506 HUS-72110506
...
131
CHUTE.BAGGER.CRD HUS-165661
...
xx
MANDREL ASM HUS-130794
...
xx
MANDREL.ASM.CRD.LH.THREADS HUS-165579
...
xx
DECK.MOWER.COMPLETE HUS-165578
