Husqvarna CZ 4817 KOA (968999220) (2002-11) Ride Mower (Turf Care)

Model: CZ 4817 KOA (968999220) (2002-11)

Back To Assemblies

Save Part Not Listed?
product name

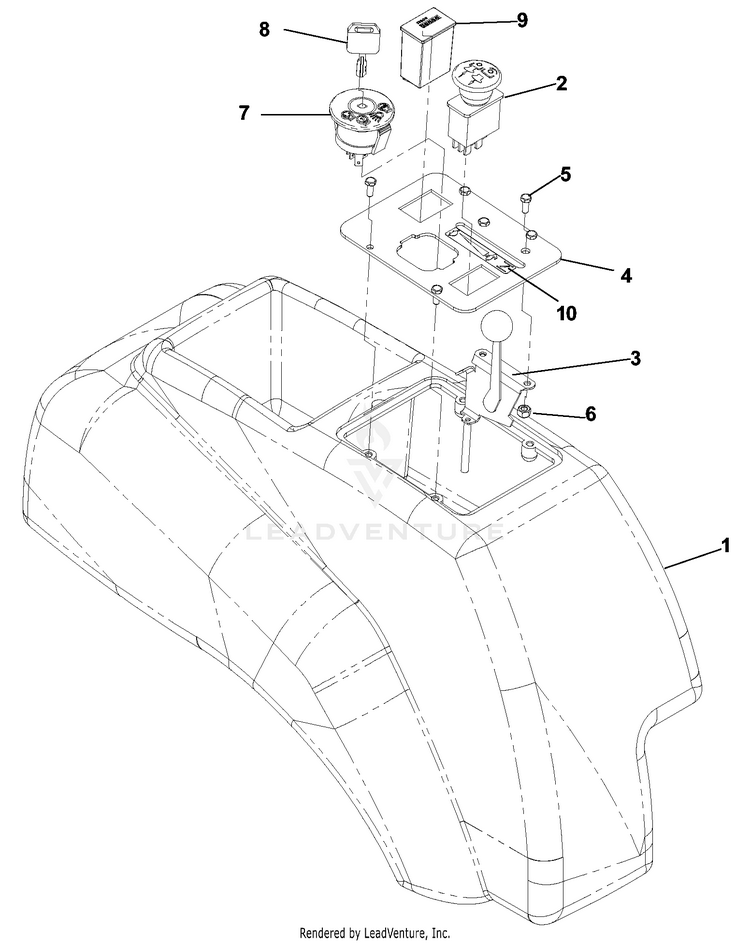

Console Assembly

...
...
1
FENDER CONSOLE HUS-539107593
...
2
SWITCH.PTO.8TERMINAL.STD.BLK HUS-582107601
...
3
THROTTLE CABLE DETENT HUS-539107583
...
4
CONTROL CONSOLE-BLACK HUS-539107589
...
5
Screws HUS-596582801
...
6
Hardware HUS-596040801
...
7
IGNITION SWITCH HUS-532175566
...
8
KEY MLD GEN DELTA HUS-532140401
...
9
HOUR METER HUS-576179401
...
10
DECAL-THROTTLE HUS-539107957
Schematic Image Zoomed
