Husqvarna CTW14542A (1996) Tractor

Model: CTW14542A (1996)

Back To Assemblies

Save Part Not Listed?
product name

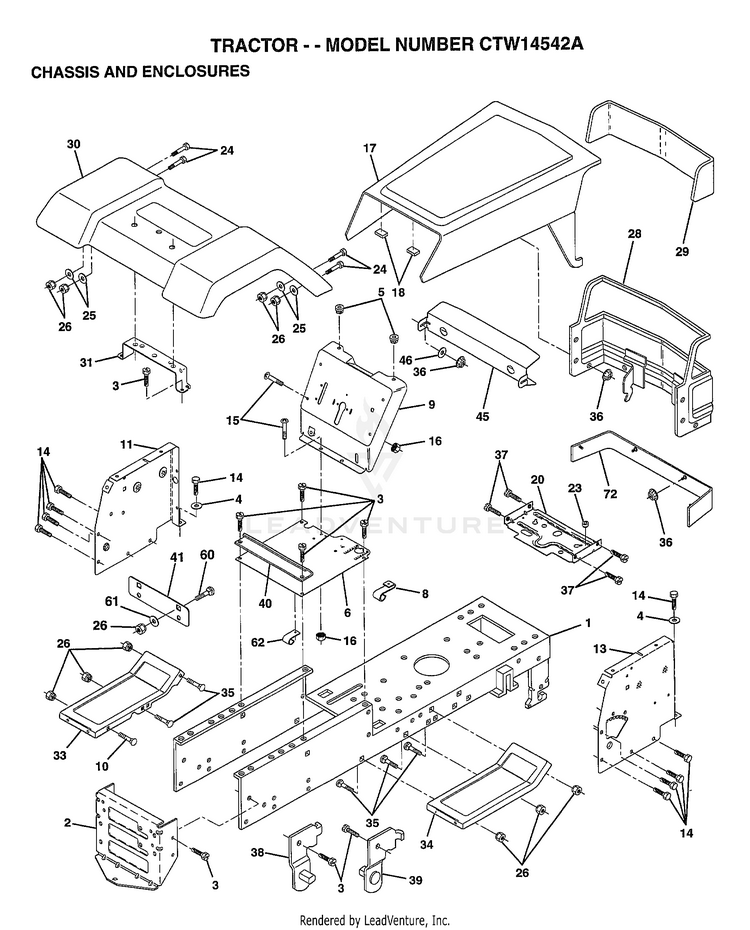

CHASSIS AND ENCLOSURES

...
...
1
CHASSIS.WLD.11GA HUS-145501
...
2
SUB= 145009 HUS-140356
...
3
SCREW HUS-17490612
...
4
WASHER HUS-19131216
...
5
SUB= 155272 HUS-146077
...
6
SADDLE.SLKSCR.6SP HUS-145208X013
...
8
"CLIP,INSULATOR" HUS-126471X
...
9
DASH.SLKSC.LT.1PC HUS-146757X011
...
10
SUB= 72110608 HUS-72140608
...
11
PANEL.DASH.LH. HUS-146956
...
13
SUB= 155934X010 HUS-146961X012
...
14
SCREW LT HUS-17490608
...
15
SCREW HUS-74180512
...
16
NUT HUS-73510500
...
17
HOOD.W/SD.PNLS.LT HUS-146399X550
...
18
SUB= 532126938 HUS-126938X
...
20
PLATE.MTG.BTRY.TK HUS-145210
...
23
SUB= 532124028 HUS-124028X
...
24
BOLT HUS-74780616
...
25
WASHER HUS-19131312
...
26
NUT HUS-73800600
...
28
GRILLE HUS-133951X
...
29
SUB= 133954 HUS-133805
...
30
FENDER.PNT. HUS-109872X550
...
31
BRACKET SUPT FEND HUS-139976
...
33
FOOTREST.LH.PERF. HUS-105476X550
...
34
FOOTREST.RH.PERF. HUS-105475X550
...
35
BOLT HUS-72110606
...
36
PAL NUT LT HUS-108067X
...
37
SCREW LT HUS-17490508
...
38
BRACKET ASM LH HUS-139886
...
39
BRACKET ASM RH HUS-139887
...
40
SPACER FENDER LT HUS-139977
...
41
PLATE EXTEN FEND HUS-139978
...
45
SUB= 918132257 HUS-132257
...
46
RETAINER HUS-127316X
...
60
BOLT HUS-72140606
...
61
WASHER HUS-19171416
...
62
CLIP.WIRE HUS-141606
...
72
STRAP.GRILLE.PNT. HUS-109745X550
...
xx
PLUG BUTTON T HUS-5479J
