Husqvarna CTH2642 TRE - 96051005700 (2012-04) Riding Tractor

Model: CTH2642 TRE - 96051005700 (2012-04)

Back To Assemblies

Save Part Not Listed?
product name

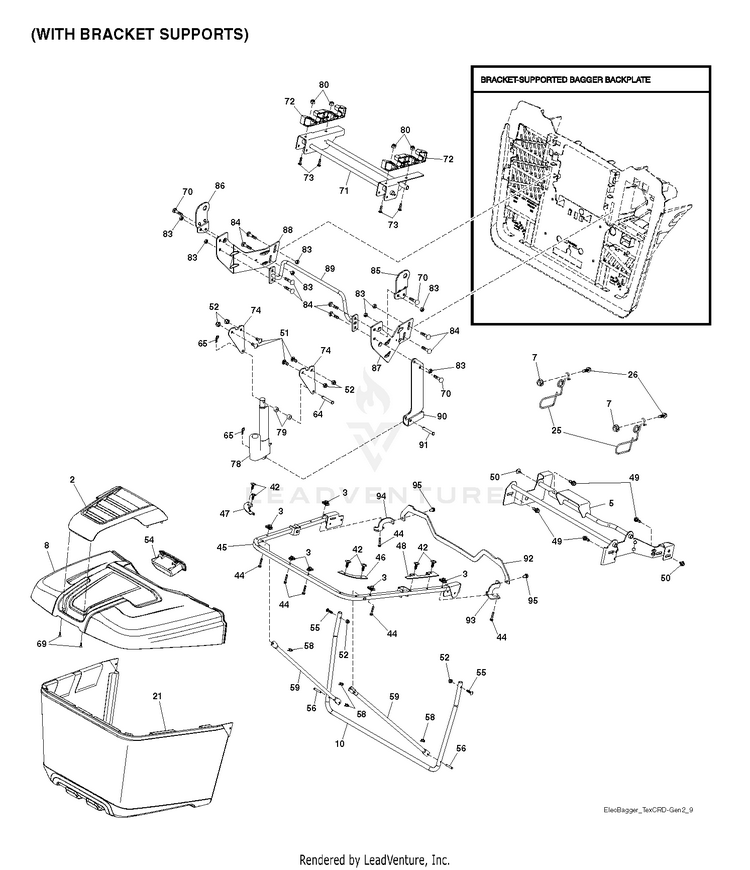

BAGGER 2

...
...
48
TOP.BGGR.SIDE.CLOSE-OUT.TCRDII HUS-583573101
...
46
LH.BGGR.CRNER.CLOSE-OUT.TEXCRD HUS-583580501
...
70
SCREW, 3/8-16X3/4 HUS-817000612
...
69
SCREW,#8.FLAT.HEAD.DRILL.TIP HUS-583392101
...
88
BRACKET.LH.MID.SUP.BAG.TEX.CRD HUS-581314702
...
92
BRACKET.PNT.BAGGER.TOP.SUPPORT HUS-586052302
...
2
APPLIQUE BAGGER HUS-583765001
...
55
Bolts HUS-596030801
...
47
LH.BAG.CRNER.CLOSE-OUT.TEXCRD HUS-583573001
...
8
HUS-580436801
...
25
LATCH.BAG.CRD.GEN2 HUS-583580301
...
83
Nuts HUS-596322601
...
3
1/4-20 U NUT HUS-532174814
...
7
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
26
BOLT.HEX.1/4.X.3/4.DICHROMATE HUS-874760412
...
90
BRACKET.ELE.DUMP.ACT.BAG.X431 HUS-581314202
...
64
HUS-532430422
...
45
TCRD.-GEN2.UPPR.U.FRAME.WLDMT HUS-583570301
...
89
TUBE.WELD.OFSET.STRUT.BAG.X431 HUS-581315104
...
54
BAGGER TOP.FRONT.HANDLE HUS-583827701
...
86
BRACKET.LH.PIVOT.ELE.DUMPX431 HUS-581314002
...
79
NYLN.SPCR.375 X .75 X .4375.L HUS-583590601
...
21
BAGGER.ASM.FABRIC.CRD.GII.HUSQ HUS-581337103
...
71
HUS-532445238
...
52
Hardware HUS-596040501
...
84
Bolts HUS-596728201
...
80
GSPW Nuts HUS-596135701
...
94
BRACKET.PNT.LH.SUPPORT.ATTACH HUS-586052502
...
5
HUS-532445248
...
74
HUS-532445243
...
49
BOLT, SHOULDER 5/16-18 HUS-532171873
...
51
BOLT.CARR.SQNK.5/16-18UNC.X3/4 HUS-872110506
...
56
PIN.CLEVIS.183 HUS-532420306
...
72
HUS-532445236
...
91
CLEVIS.375X1.25 HUS-583598001
...
10
BAGGER.FRAME.LOW.UTUBE.TEX.CRD HUS-583825801
...
50
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
73
BOLT.CARRIAGE.5/16-18 HUS-872110510
...
59
BAGGER SPRD.TUBE.TEX.CRD.GEN2 HUS-583826601
...
93
BRACKET.PNT.RH.SUPPORT.ATTACH HUS-586052402
...
58
RETAINER CLIP PM HUS-532085179
...
78
HUS-532445257
...
65
RETAINER M HUS-532004497
...
87
BRACKET.RH.MID.SUP.BAG.TEX.CRD HUS-581314802
...
85
BRACKET.RH.PIVOT.ELE.DUMPX431 HUS-581314102
...
42
CHRISTMAS.TREE.CLIP HUS-583548101
...
44
SCREW HUS-532199687
...
95
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
